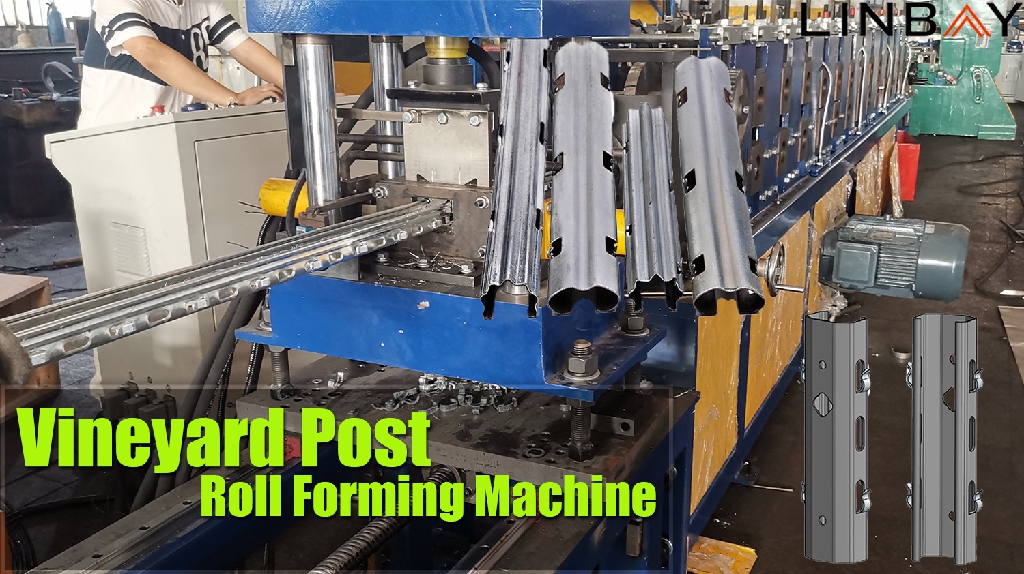

Vineyard post roll forming machine is used for vineyard and orchard to produce the stakes and postes.

We have exported to Spain, where is famous by his grapes and vine. Our customer's grape post has 1.5-2mm thickness. So we adopted gearbox draving system to make sure our machine working stably and with long working life. At our machine, you can see each electronic material we use famous brands like YASKAWA, SIEMENS and SCHNIERDER.

If you want to make a economic machine line, we can make two grape post profiles in one line. But one time produce one profile.

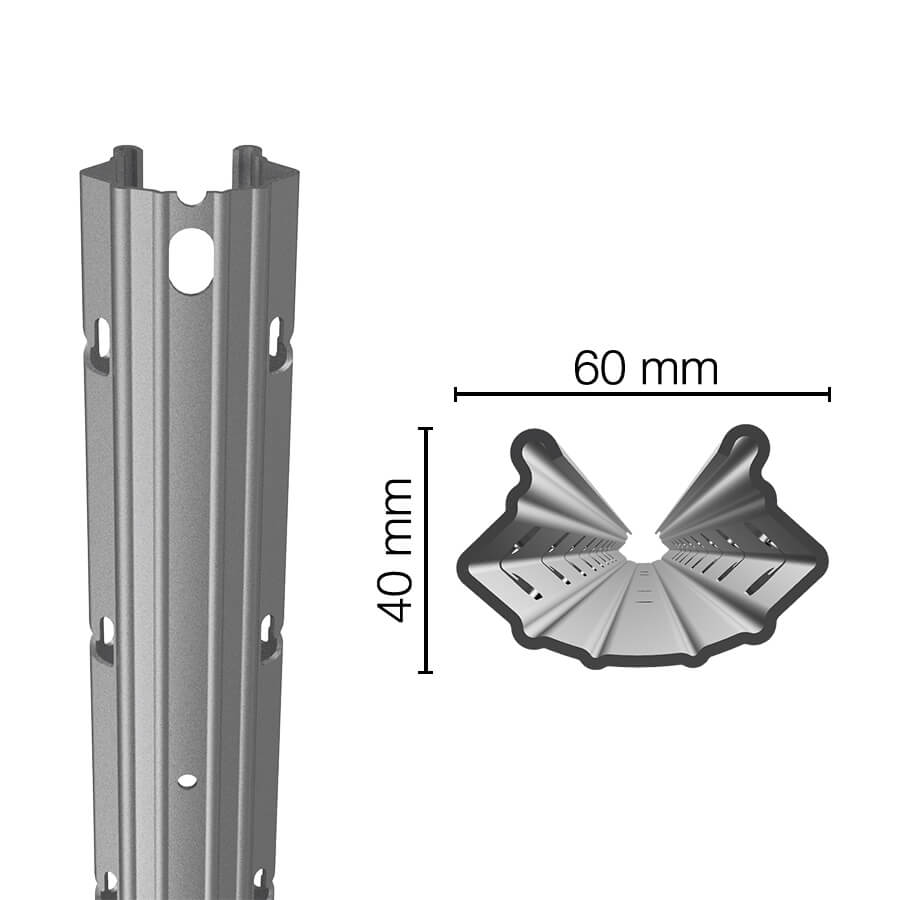

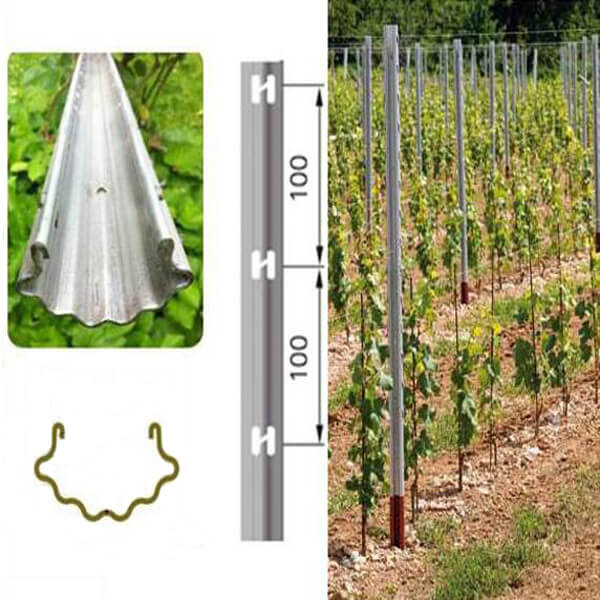

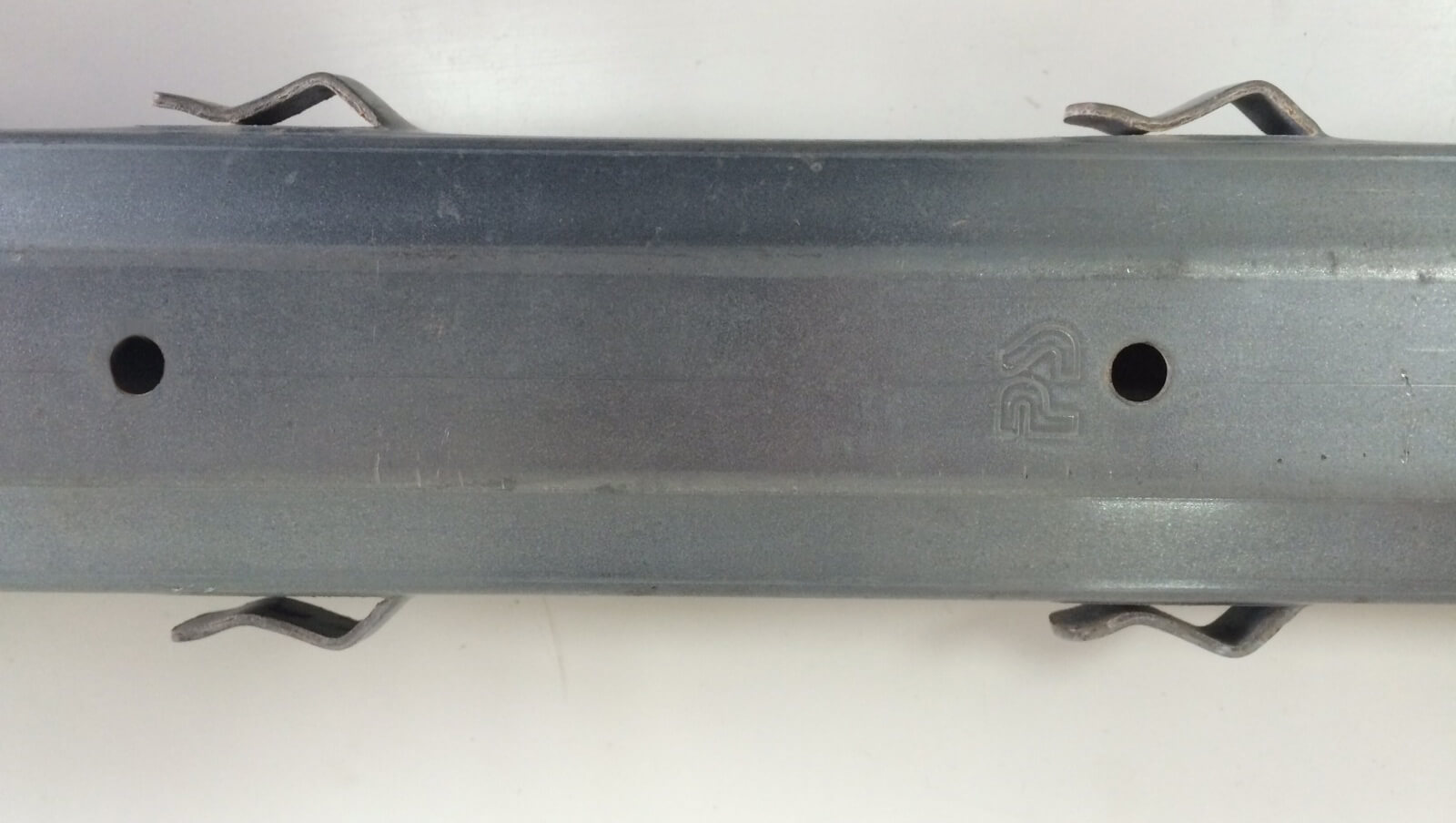

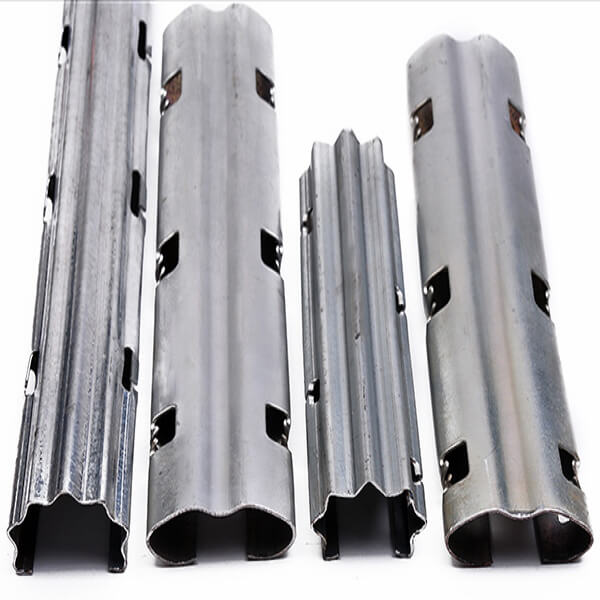

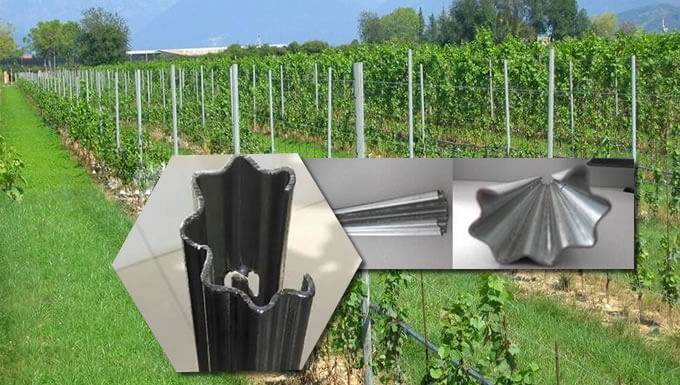

Application

Technical Specification

Vineyard post roll forming machine

No.

Item

Specification

Optional

1

Suitable material

Type:Galvanized Coil, PPGI, Carbon steel Coil



Thickness(mm):1.5-2.5

Yield strength: 250 - 550MPa

Tensil stress( Mpa):G350Mpa-G550Mpa

2

Nominal forming speed(m/min)

10-20

Or according to your requirement

3

Forming station

14

According to your profile

4

Decoiler

Manual decoiler

Hydraulic decoiler or double head decoiler

5

Main machine motor

Sino-German Brand

Siemens

6

PLC brand

Panasonic

Siemens

7

Inverter brand

Yaskawa



8

Driving system

Gearbox drive

Chain drive

9

Rollers’ materail

Steel #45

GCr15

10

Station structure

Torri stand structure

Forged Iron station
Or Wall panel structure

11

Punching system

No

Hydraulic punching station or Punching press

12

Cutting system

Post-cutting

Pre-cutting

13

Power supply requirement

380V 60Hz

Or according to your requirement

14

Machine color

Industrial blue

Or according to your requirement

Flow Chart

Manual decoiler--leveling--forming machine--hydraulic cutting--out table

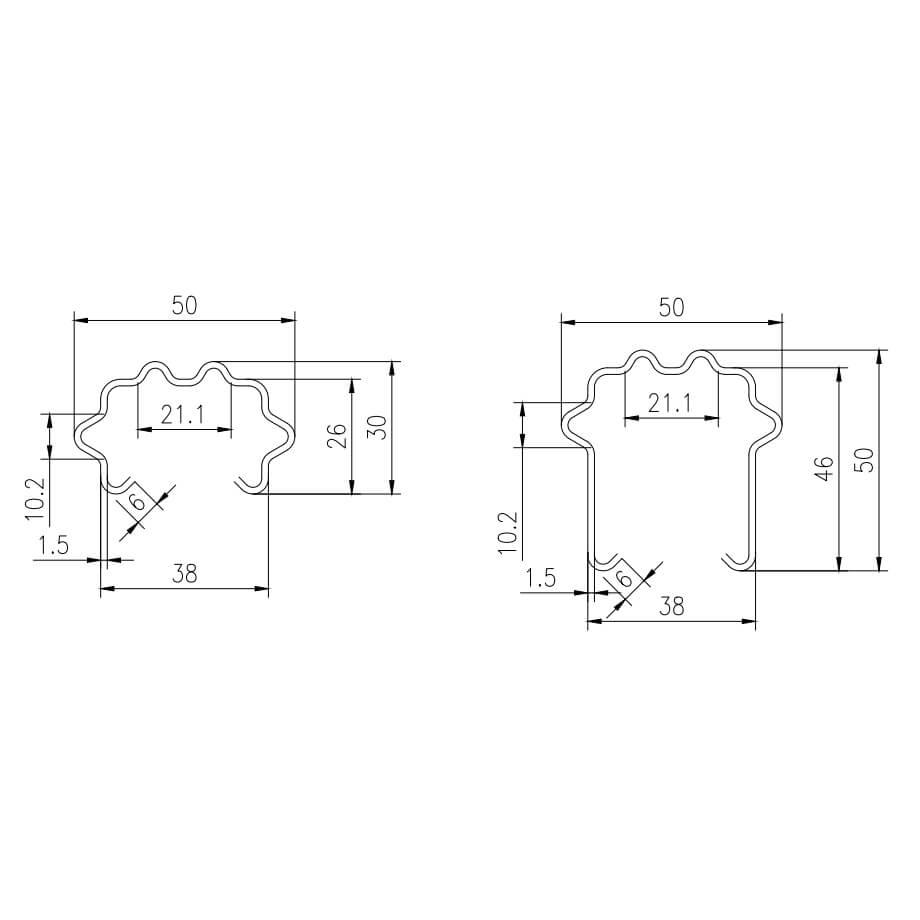

Profile drawings


Optional configuration
  • Others
    • scrap collector
    • pasting
    •
    •
    •
    •
    • mould change
    • guiding head
    • Cooling system
    •
    •
    •
    •
  • Out table
    • non-powered
    • auto stacker
    •
    •
    •
    •
  • Cutting
    • saw cutting
    • flying shear
    •
    •
    •
    •
  • Driving
    • chain drive
    • gearbox drive
    • gearbox drive with coupling
    •
    •
    •
    •
  • Stands
    • wall panel stands
    • torri stands
    • forged iron stands
    • wall panel for Cpurlin
    •
    •
    •
    •
  • Punching
    • hydraulic punching station
    • punching press
    • roller punching
    •
    •
    •
    •
  • Feeding
    • leveling
    • servo feeding
    •
    •
    •
    •
  • Decoiler
    • manual decoiler
    • hydraulic decoiler
    • double head decoiler
    •
    •
    •
    •
