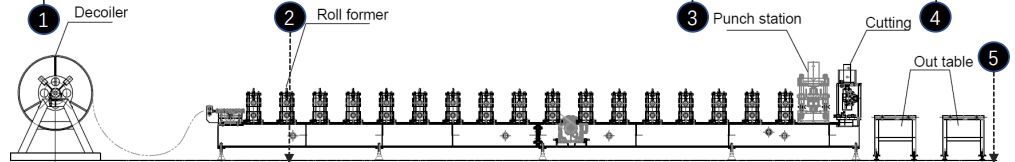

Decoiler--Leveler--Servo feeder + Punch press--Roll former 1--Roll former 2--Guide head--Out Table

1. Q: What kinds of experience do you have in producing DIN rail roll forming machine?

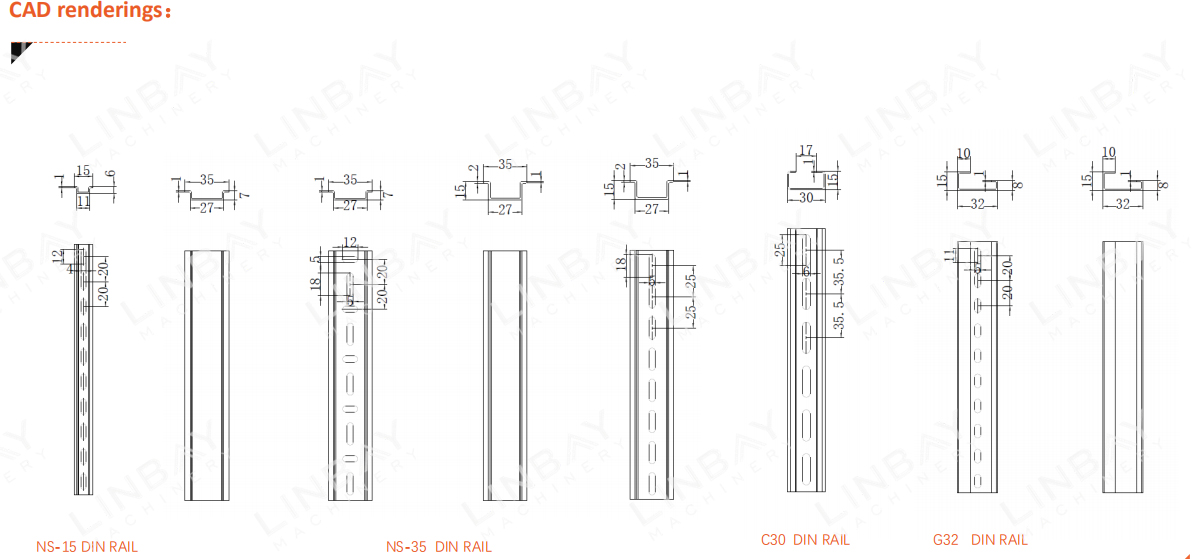

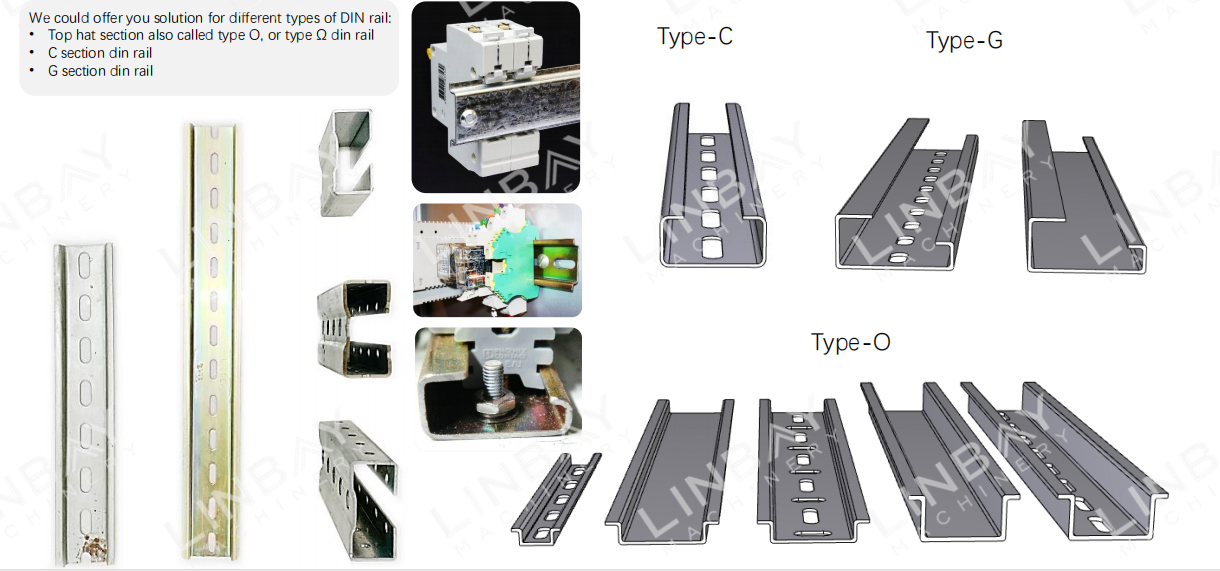

A: We have experience of exporting our Din rail roll formers to America, Mexico, Russia and Philippines etc. We have produced variety of Din rail roll forming machines which can produce such as Top hat rail (IEC/EN 60715, TS35), C section rails (C20, C30, C40, C50), G section rails (EN 50035, BS 5825, DIN46277-1).

2. Q: How many sizes can be made in one machine?

A: We can produce double-row, even triple -row DIN rail roll forming machine, so it can produce two or more sizes.

3. Q: What is delivery time of strut channel machine?

A: 30 days to 50 days depends on your drawing.

4. Q: What is your machine speed?

A: Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. if you want a higher speed like 40m/min, we give you a solution with rotary punch system, which punch speed is up to 50m/min.

5. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching molds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

6. Q: What is your after-sales service system?

A: We don’t hesitate to give you a 2 years warranty period for whole lines, 5 years for motor: If there will be any quality problems caused by non-human factors, we will
handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
