Strut channel roll forming machine has two main application: One is also called like seismic support roll forming machine or seismic channel roll forming machine,  its product is used to mount, brace, support, and connect lightweight structural loads in building construction. Other is called solar rack roll forming machine or photovoltaic (PV) rack roll forming mahcine, its product is used in PV support bracket. Our strut channel roll forming machine is suitable to produce strut channels with 12 gauge ( 2.6mm )  or 14 gauge ( 1.9mm )  thick sheet metal  ( normally range 2-2.5mm ), raw material could be Hot-rolled and cold rolled steel,  Hot-dip galvanized sheet,  Pre-Galvanized Steel, Mill ( Plain/Black ) Steel,  Aluminum,  Stainless Steel etc.  And according to slot type, our machine could produce solid channel,  slotted channel,  half slotted channel,  long slotted channel,  punched channel,  punched and slotted channel etc.

Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems.

The material used to form the channel is typically 12 gauge or 14 gauge thick sheet metal.

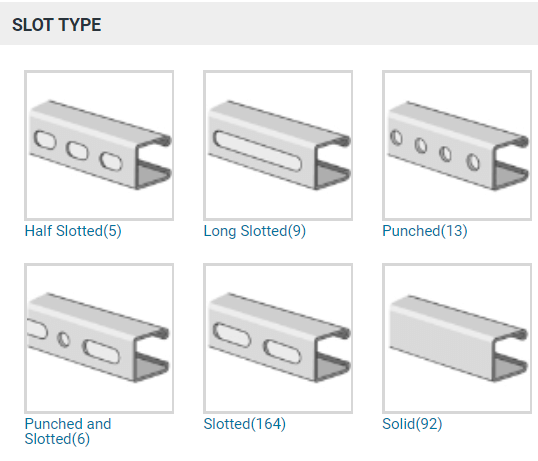

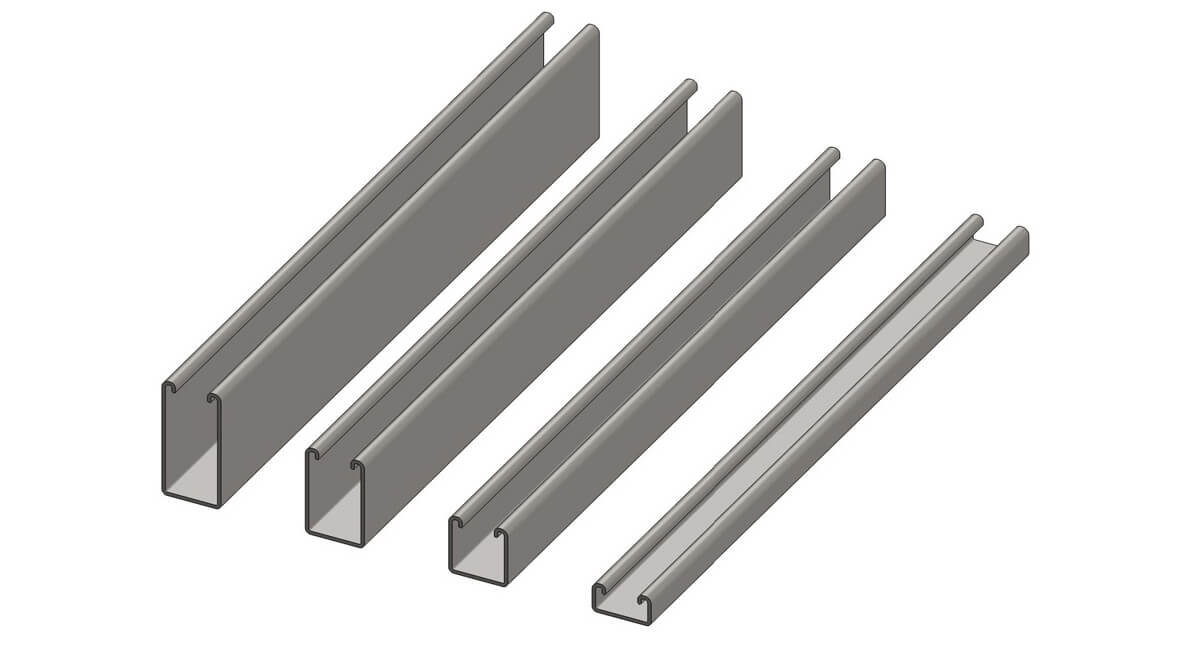

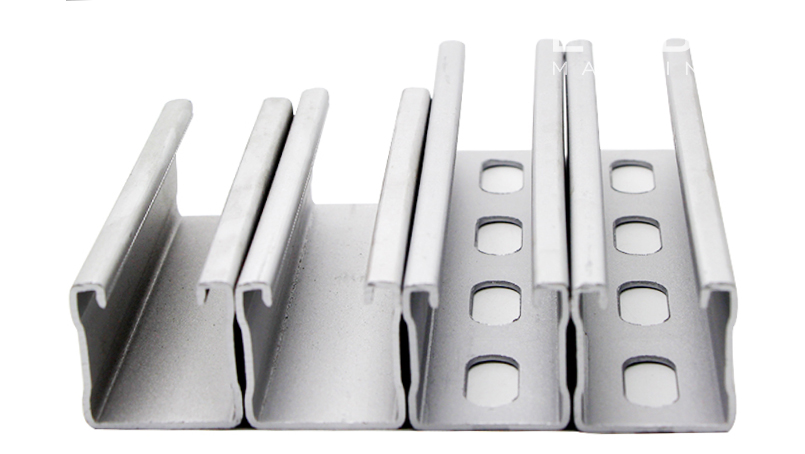

According to slot type, we have many different types of strut channels:

Solid channel has no holes predrilled, and must either be drilled on site or mounted in another fashion.

Punched channel has round holes, large enough for 5/8 inch threaded steel rod or bolts, punched in the top of the channel at regular 1 7/8 inch centers.

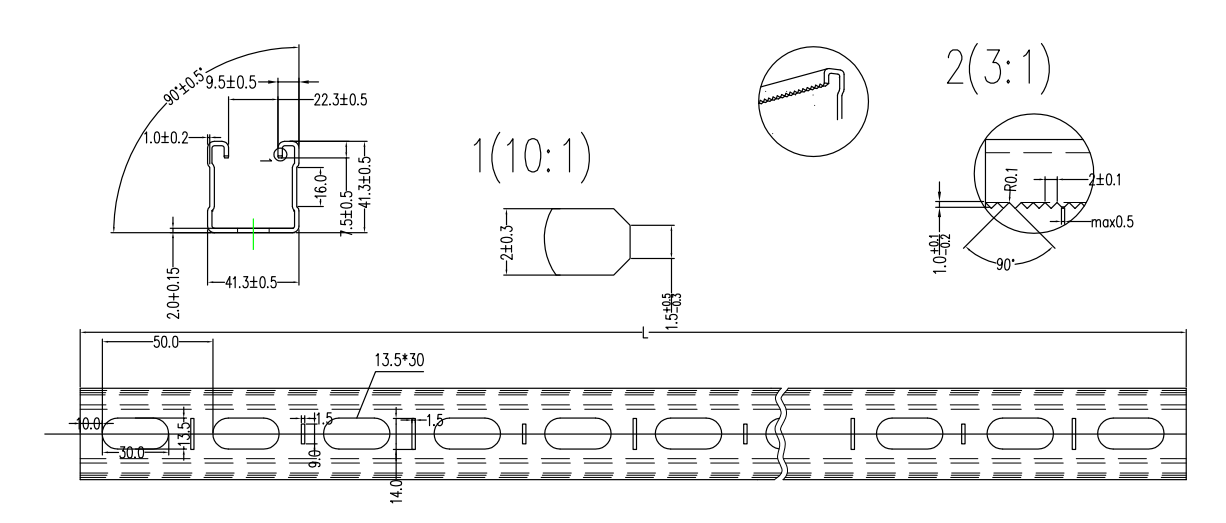

Half-slot channel has short, rounded end rectangular slots punched out on 2 inch centers. Slot channel has longer slots on 4 inch centers.

In addition, shapes are manufactured with two lengths of channel welded together back to back, side to side or three or four welded together in various patterns, to form stronger structural elements.

Machine details:

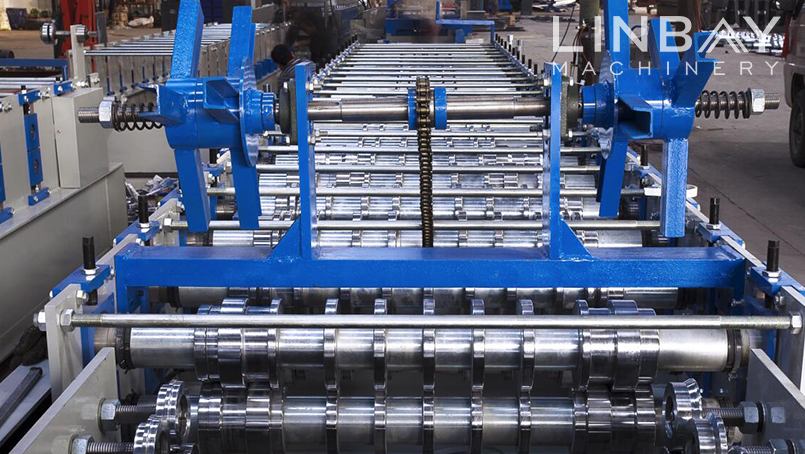

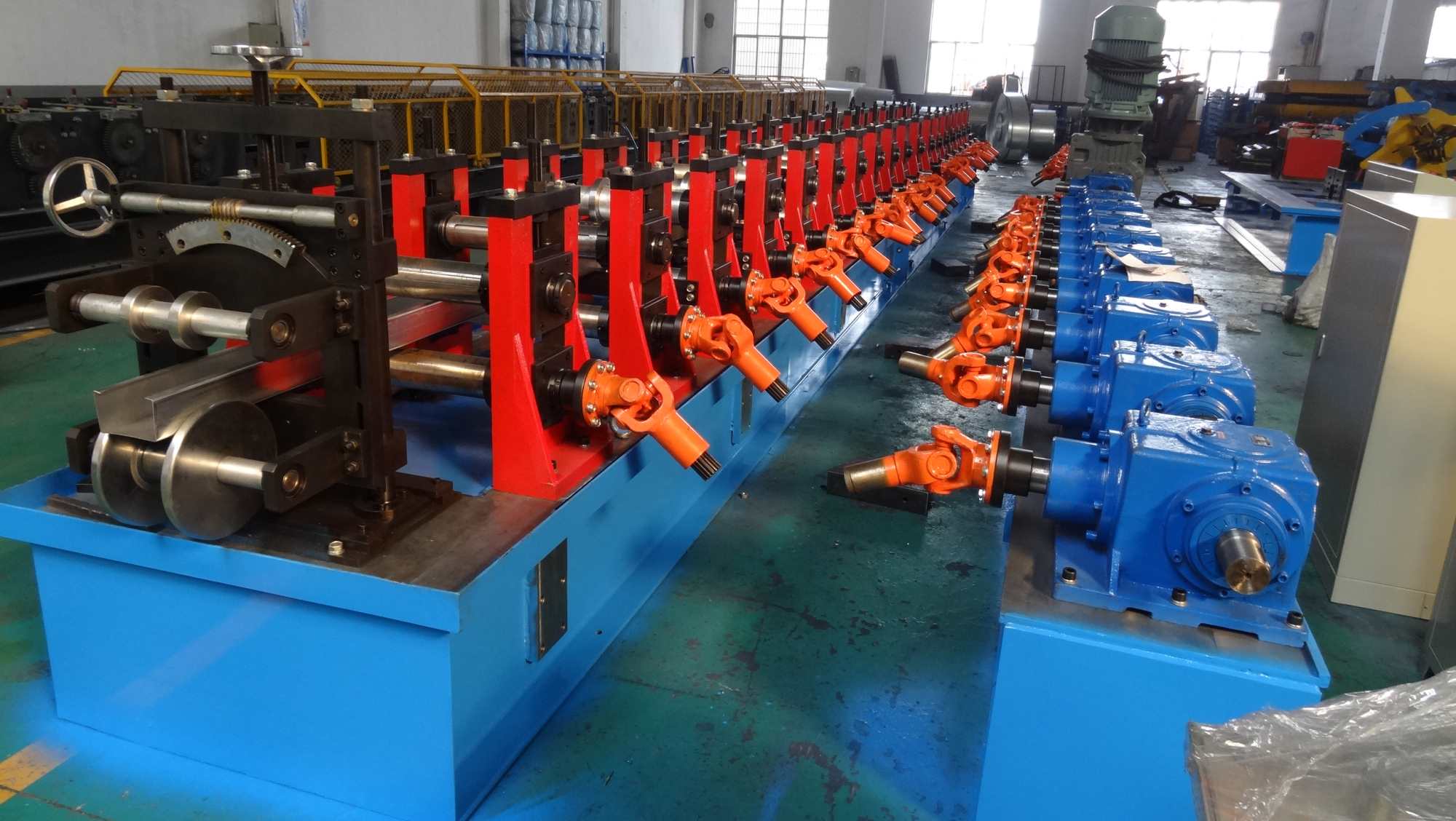

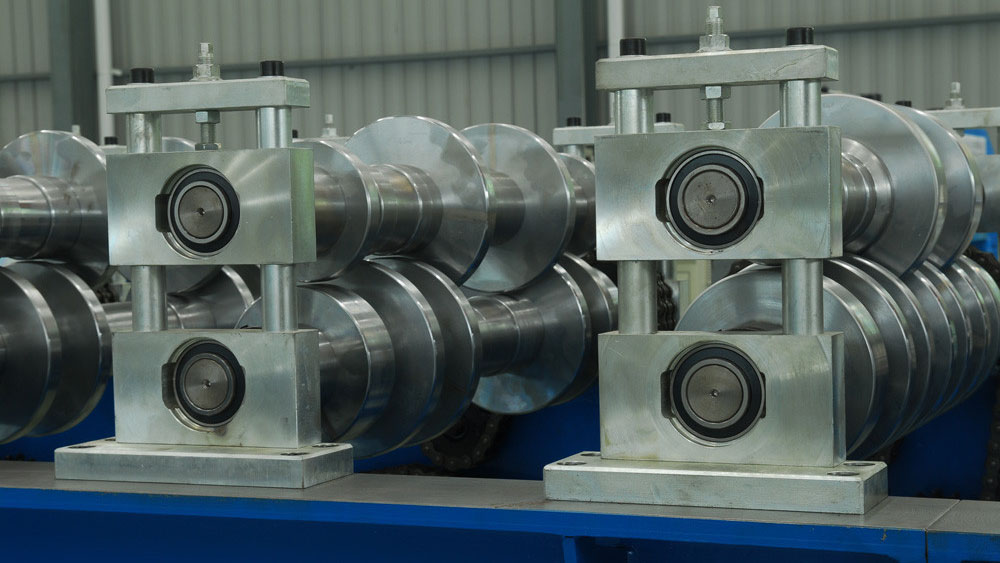

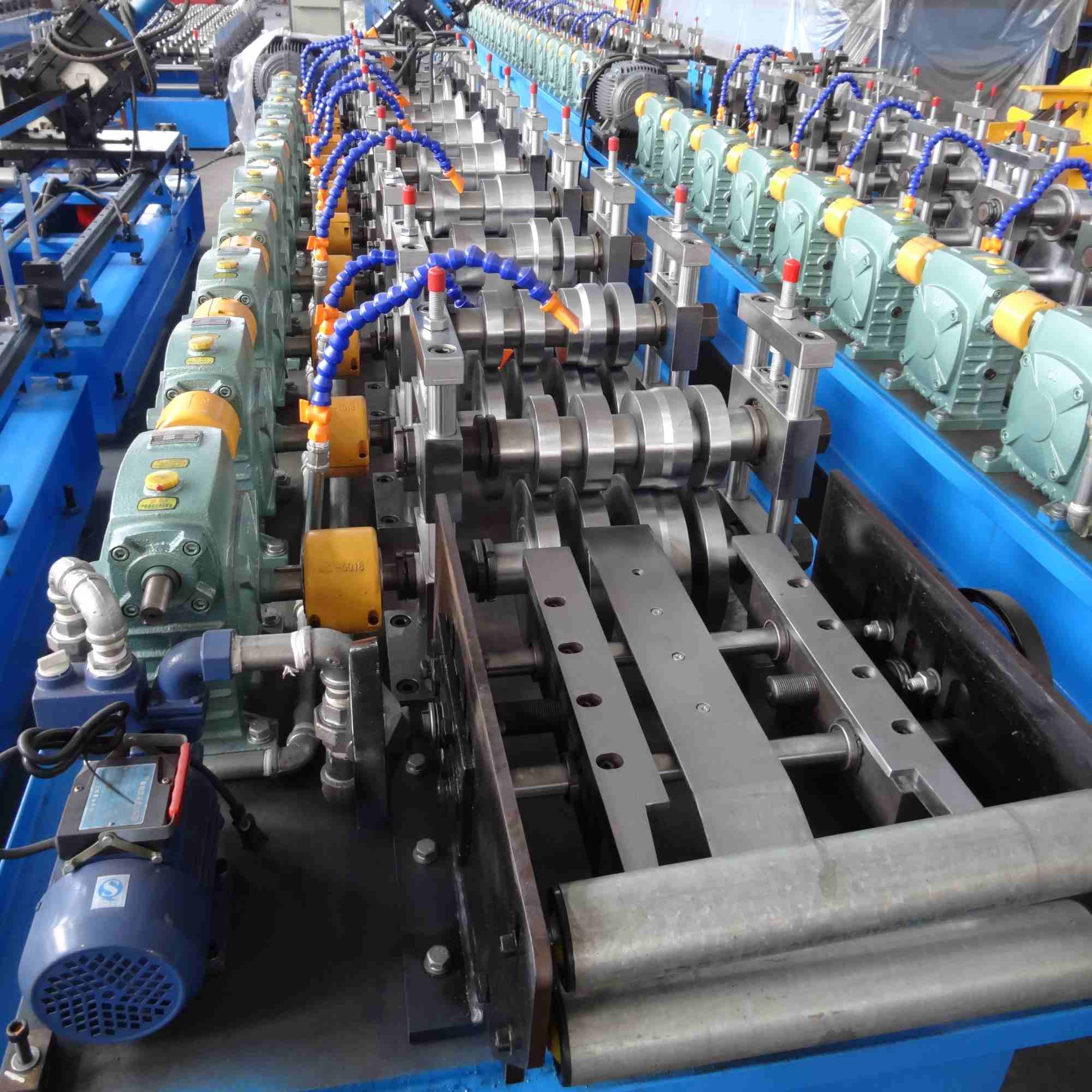

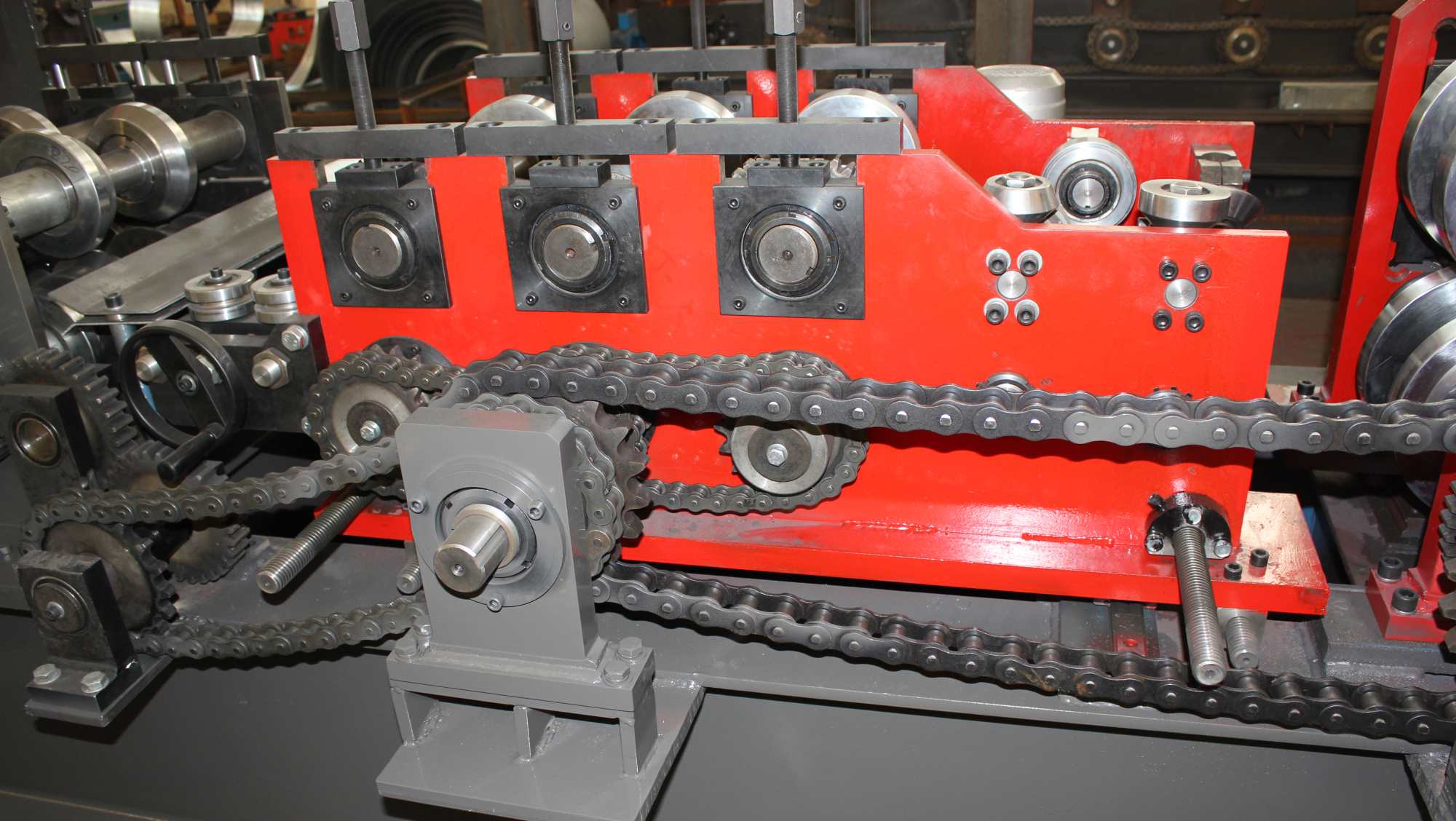

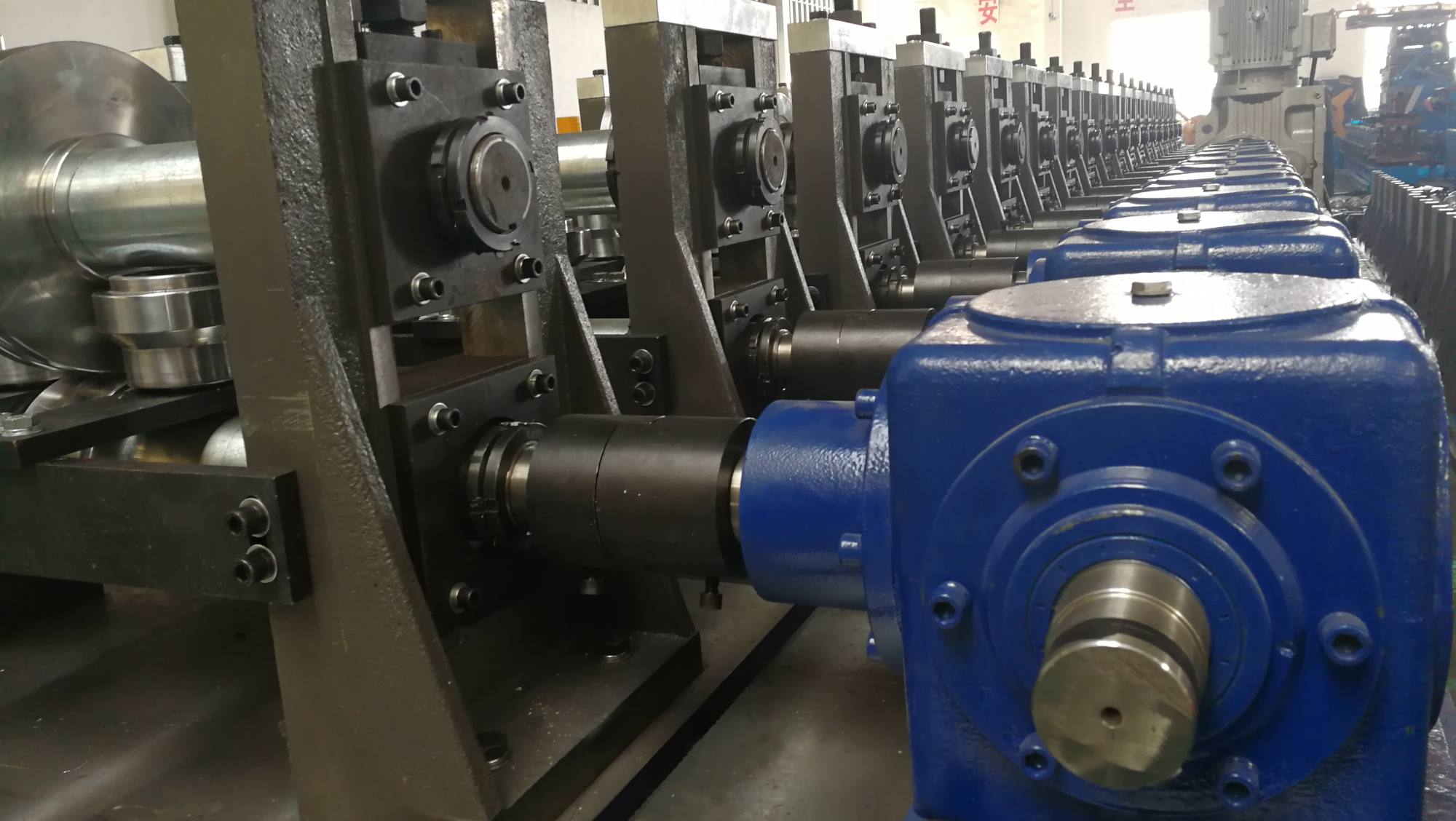

Our Roll Fomring Machine's working thickness can be 1.5-2.5mm. The Max. working speed can be 25m/min-40m/min. We adopt gearbox driving system to keep our machine work with high speed and prolong the service life.

Flow chart:

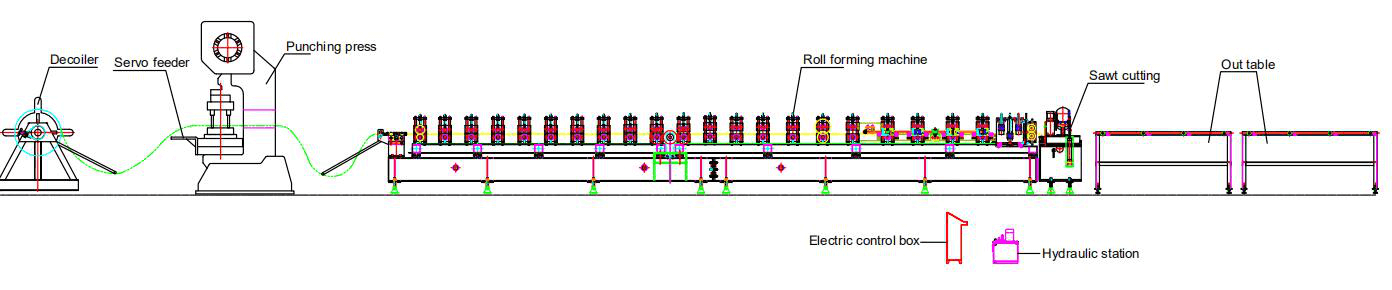

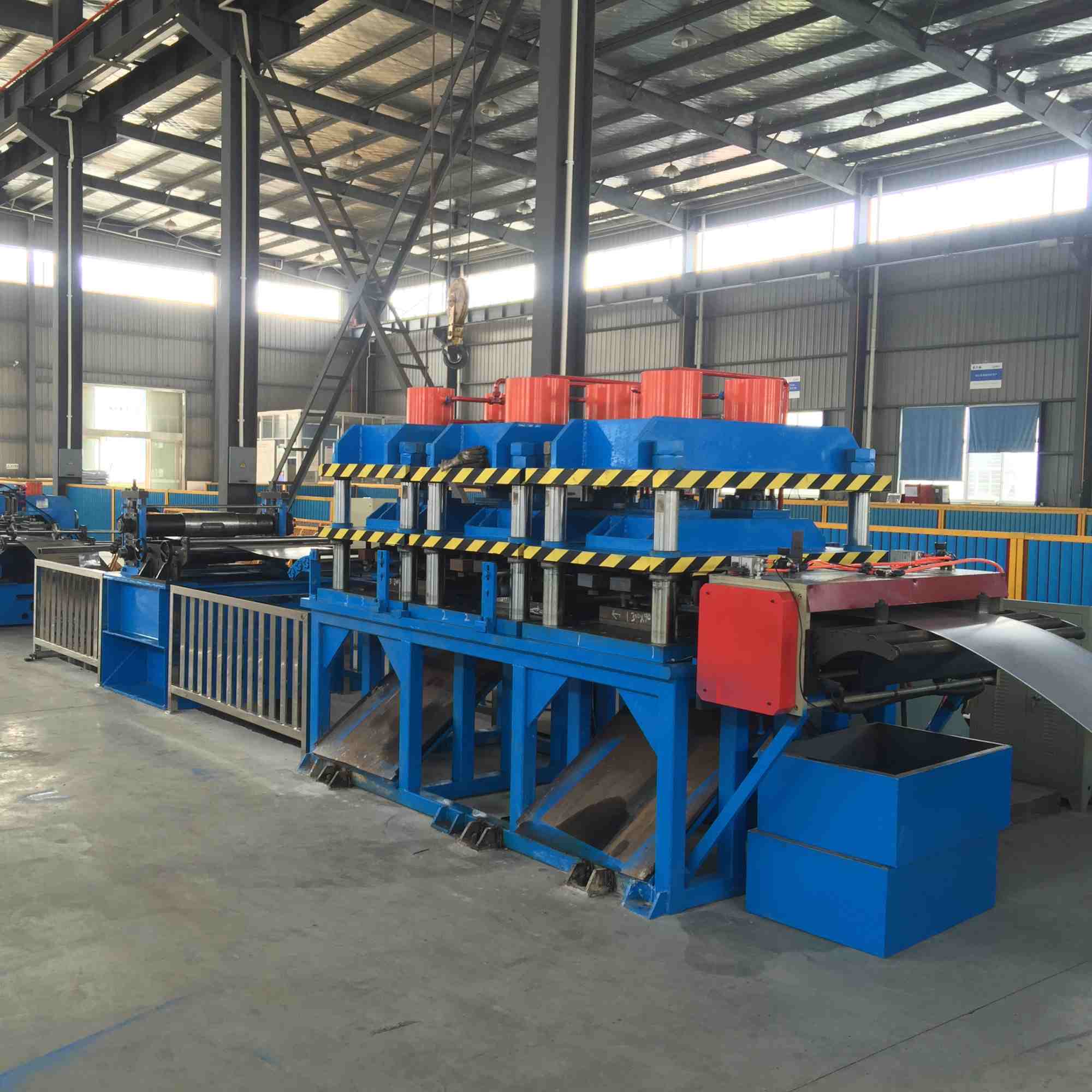

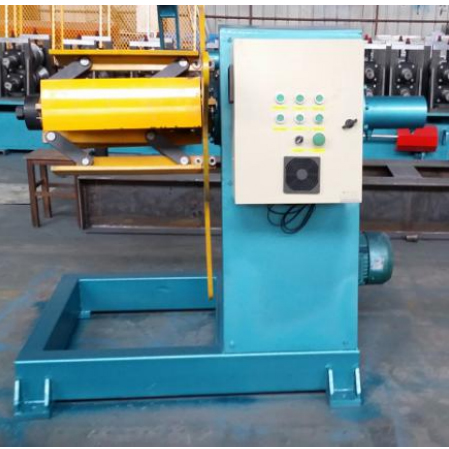

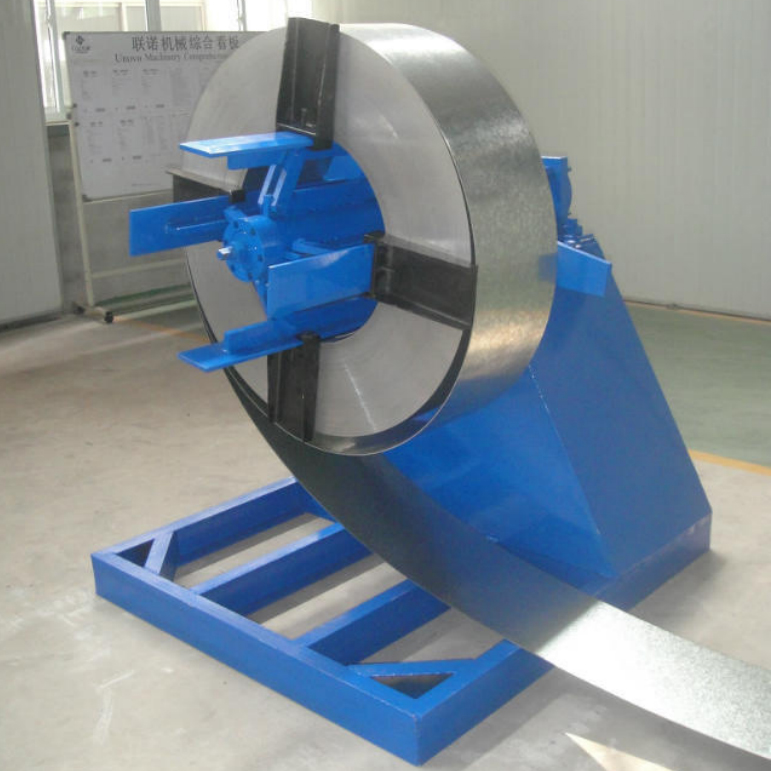

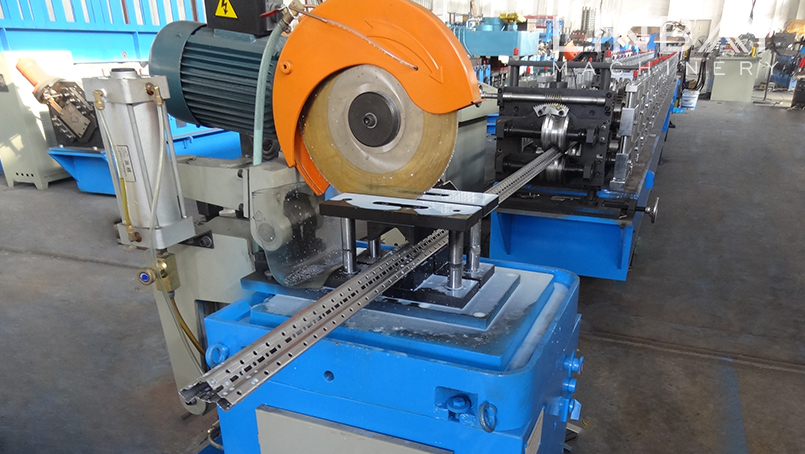

5T Manual decoiler-Servo Feeder-Punching press-Roll forming machine-Saw cut-Out table

We have experience of exporting our strut channel roll formers to Pakistan, Mexico, Peru, Argentina, Macedonia and Malaysia etc.

Linbay roll forming machine  could produce 3-5 sizes (eg: 41x27, 41x41, 41x62) in one machine, the working speed can reach 20m/min, if you want a higher speed like 40m/min, we give you a solution with rotary punch system, which punch speed is up to 50m/min.

1. Q: What kinds of experience do you have in producing strut channel roll forming machine?

A: We have experience of exporting our strut channel roll formers to Pakistan, Mexico, Peru and Malaysia etc. We have produced solid channels, slotted channels, punched channels, standard channels etc. We are confident to solve your strut channel problem.

2. Q: How many sizes can be made in one machine?

A: One machine could produce one same width with different heights like 41x21, 41x41, 41x62, 41x82 or 27x18, 27x30.

3. Q: What is delivery time of strut channel machine?

A: 80 days to 100 days depends on your drawing.

4. Q: What is your machine speed?

A: Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. if you want a higher speed like 40m/min, we give you a solution with rotary punch system, which punch speed is up to 50m/min.

5. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

6. Q: What is your after-sales service system?

A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
