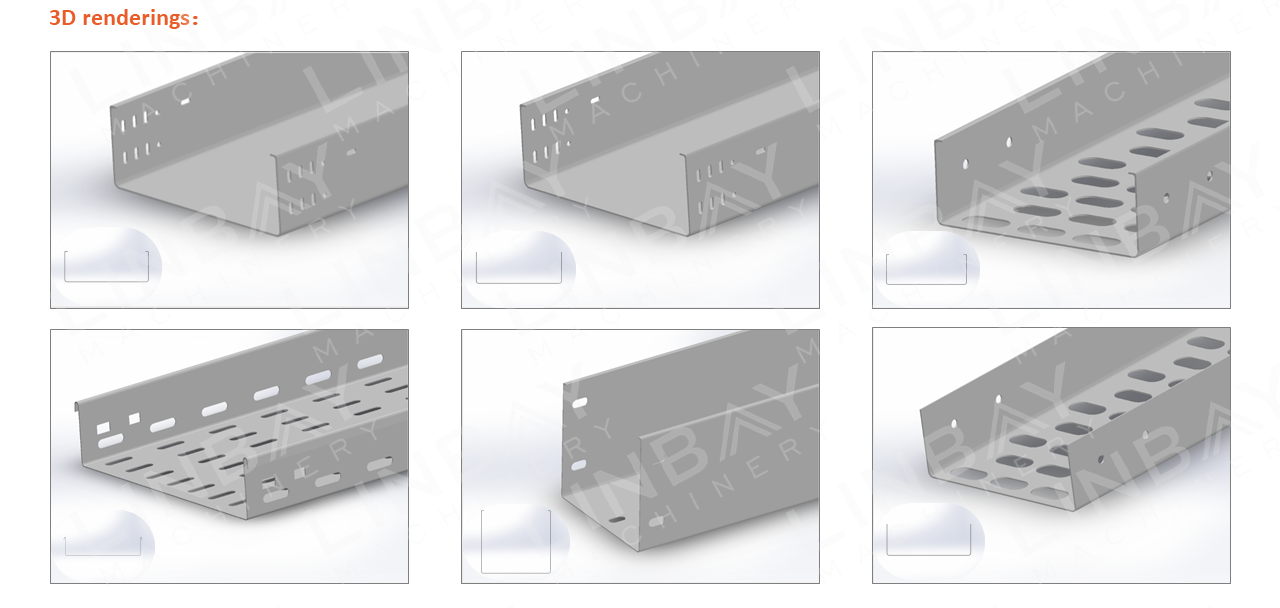

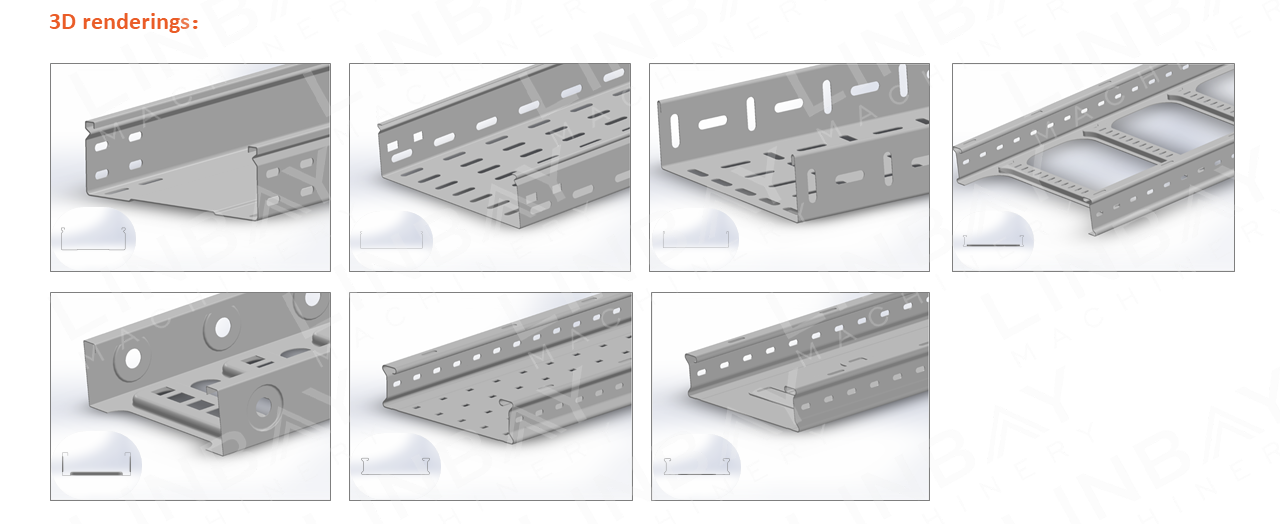

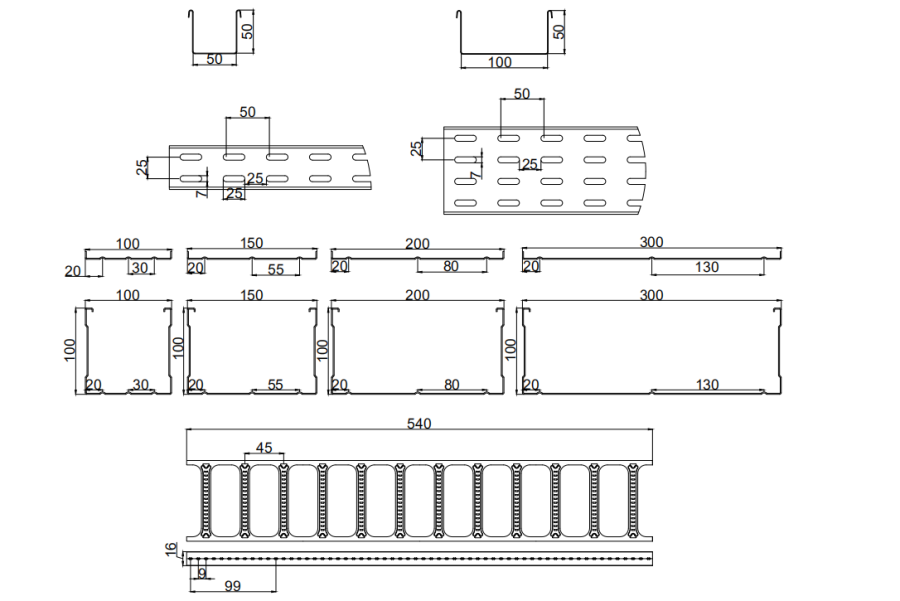

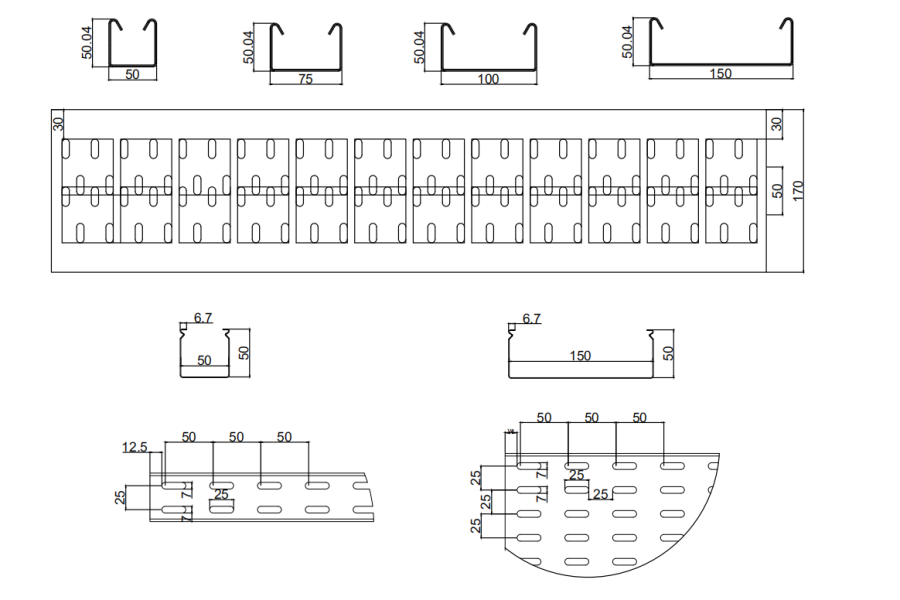

Cable ladder roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.

Our roll forming machine could produce wide range of sizes, and automatically change by motors from one size to the other not only at width but also at height. The only step is put your required data into our touch screen and wait for few seconds. And other wise innovation is that one machine could make cable trays and covers of corresponding size. Change time is only 30 minutes, easy to operate, low-cost and save area.

We have experience of exporting our cable tray roll formers to Argentina, Russia, Australia etc.

1. What kinds of experience do you have in producing cable tray roll forming machine?

We have exported cable tray production line to Russia, Australia, Argentina, Malaysia, Indonesia. We have produced perforated cable tray, CT cable tray, ladder cable tray and etc. We are confident to solve your cable tray problem.

2. Can I just use one line to produce cable tray and tray cover?

Yes, you definitely can use one line to produce cable tray and tray cover. The change operation is simple, you can complete it in half an hour. In this way, this will greatly reduce your cost and time.

3. What is delivery time of cable tray machine?

120 days to 150 days depends on your drawing.

4. What is your machine speed?

Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. Please send us your drawing and let us know your required speed, we would customize it for you.

5. How could you control your machine’s precision and quality?

Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

6. What is your after-sales service system?

We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

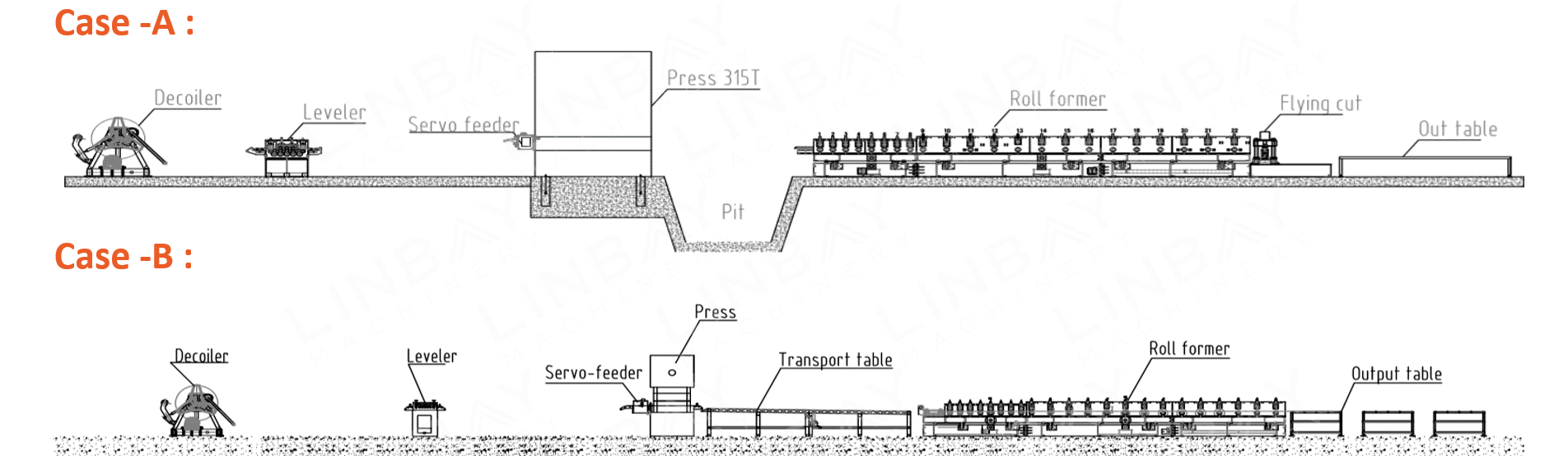

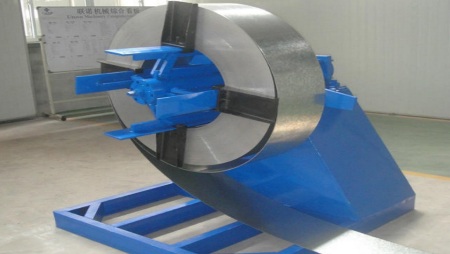

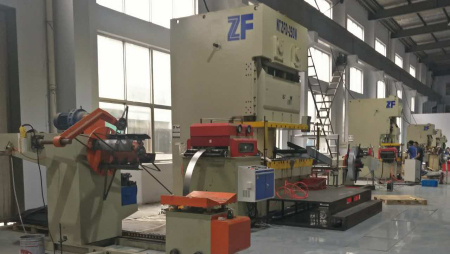

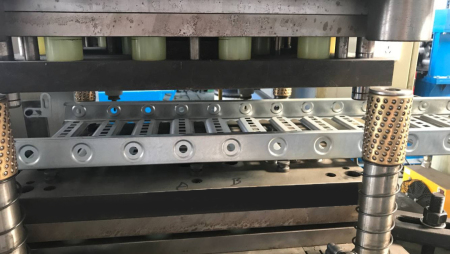

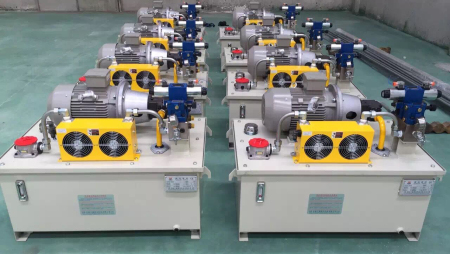

Manual Decoiler--Punching Press--Forming Machine--Hydraulic Cutting--Out Table
