Steel Slitting Machine Description

Linbay Machinery is professional to make slitting machines and cut to length machine, we have exported to Iraq, Malaysia, Saudi Arabia, Egypt, Australia, Salvador,India, Sri Lanka, USA etc. We have rich experience, powerful technical force and a perfected quality control system.



The best-selling product is SLT1600, it's suitable for profile manufacturers and newly established factory. We export a large amount of this model every year, so the production cost is lower and price is competitive.



Also we have some cheap model as option like SLT1250, SLT1300 and SLT1600C so every customer can find the suitable solutions to its needs. Model SLT1600 PRO has a fast speed up to 200m/min, this machine can be compared with American technology, but price is affordable. You can choose the model according to your needs.


Besides, Linbay Machinery can also make slitting machines for steel thickess above 3mm. We slitting machine project like 5*1600 slitting machine, 8*2000 slitting machine, 6*1600 slitting machine, 6*2000 slitting machine. We offer a variety of customized slitting machines for you. Please contact us for more details.

Specifications of steel stlitting machine

Specifications of Steel Slitting Machine

Model

Thickness

Coil width

Uncoiler

Recoiler

Strip No.

Speed

mm

mm

Tons

Tons

Unit

m/min

SLT1250

0.3-0.8

1250

≤5

8

20

SLT1300

0.3-1.5

1300

≤10

≤5

10

30

SLT1600C

0.3-3

1600

≤20

≤10

10

60

SLT1600

0.3-3

1600

≤20

≤15

30

120

SLT1600Pro

0.3-3

1600

≤25

≤15

30

200

Machine Flow Charts

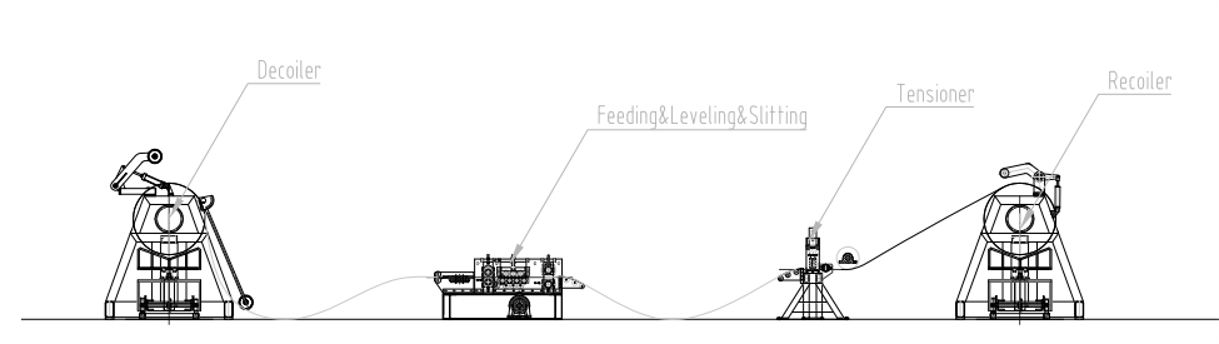

Model: SLT1250

Decoiler--Feeding&guiding&slitting-Tensioner-Recoiler

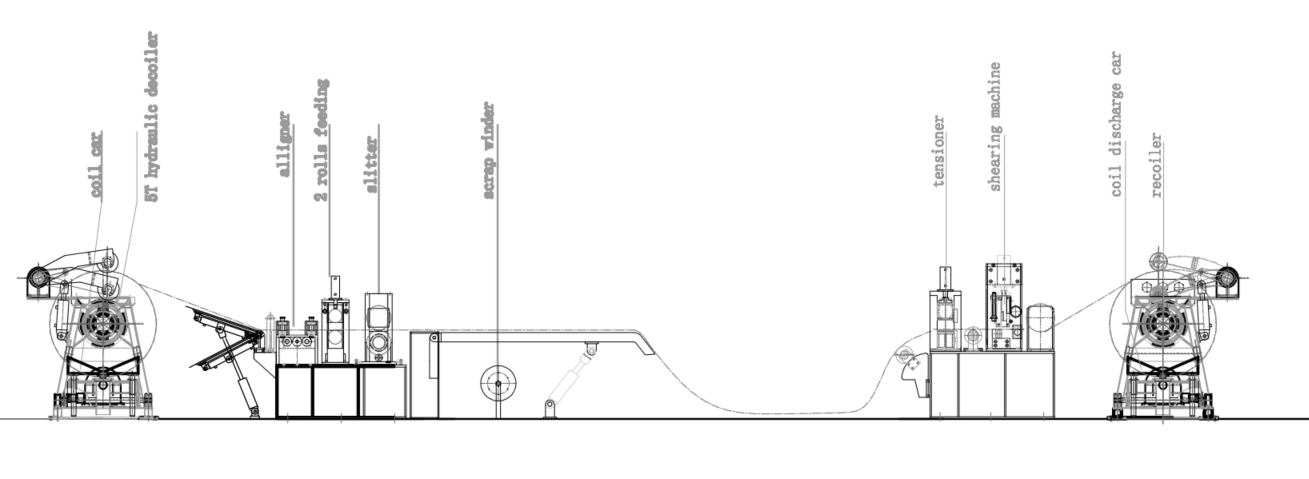

Model: SLT1300

Decoiler with loading coil car--Center aligner&feeding&slitting--Scrap recoiler--Transportation plate--Tensioner&Shearing&Pre-seperator--Recoiler with loading coil car

Model:SLT1600C/SLT1600

Recoiler with loading coil car--Pre-seperator&Tensioner--Pit--Wastage recoiler--Slitting machie&Center aligner--Pit--Shearing machine&Leveler--Decoiler with loading coil car

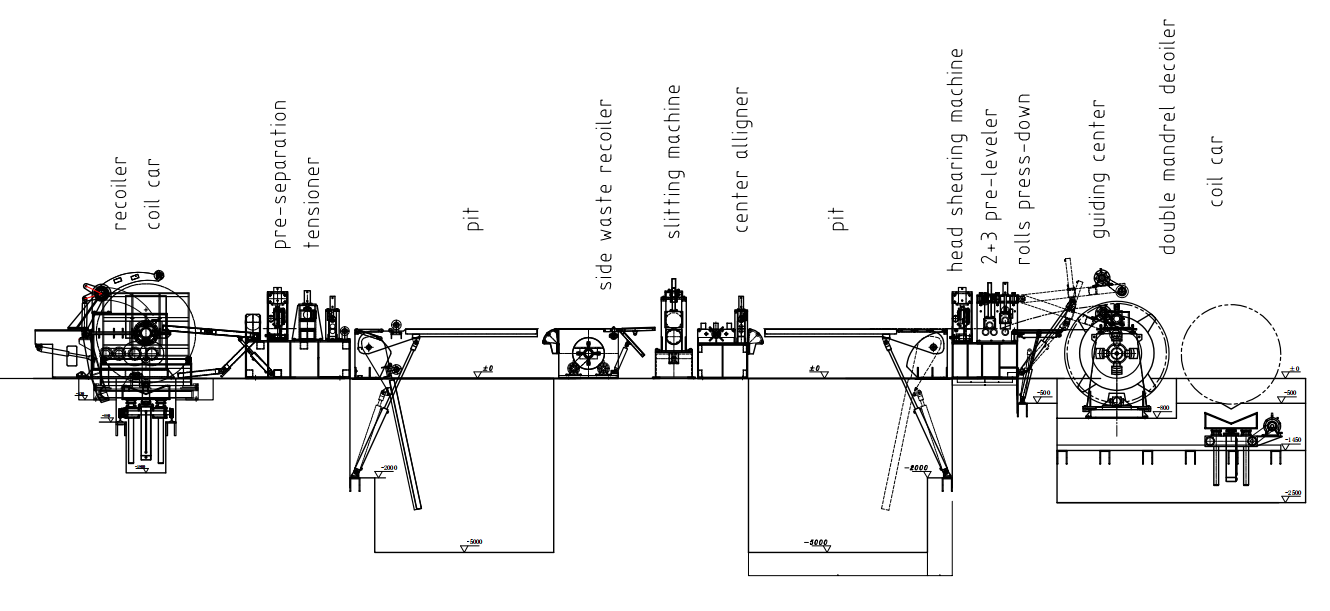

Model:SLT1600 PRO

Recoiler with loading coil car--Pre-seperator&Tensioner--Pit--Wastage recoiler--Slitting machie&Center aligner--Pit--Shearing machine&Leveler--Double mandral decoiler with loading coil car

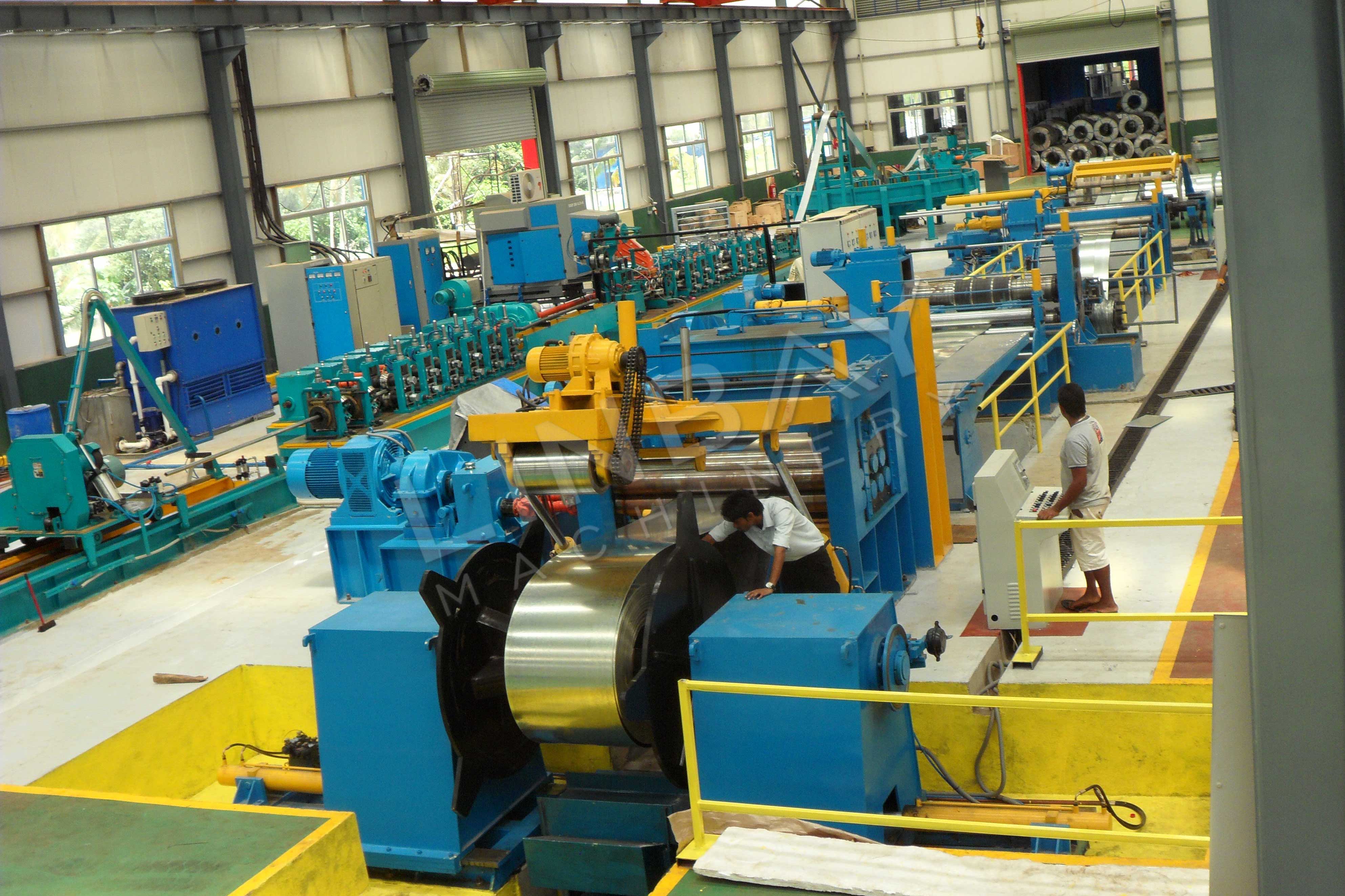

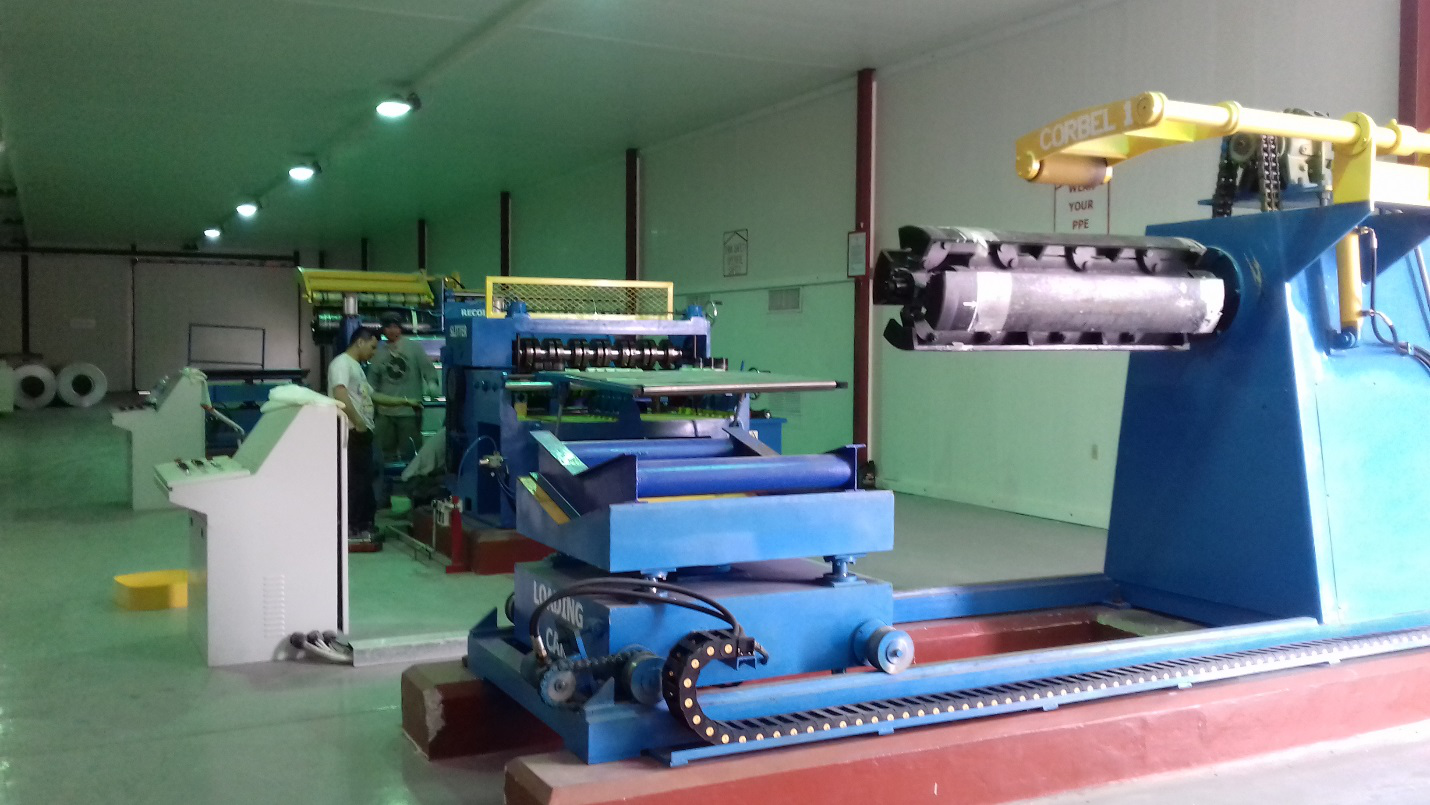

Machine Pictures

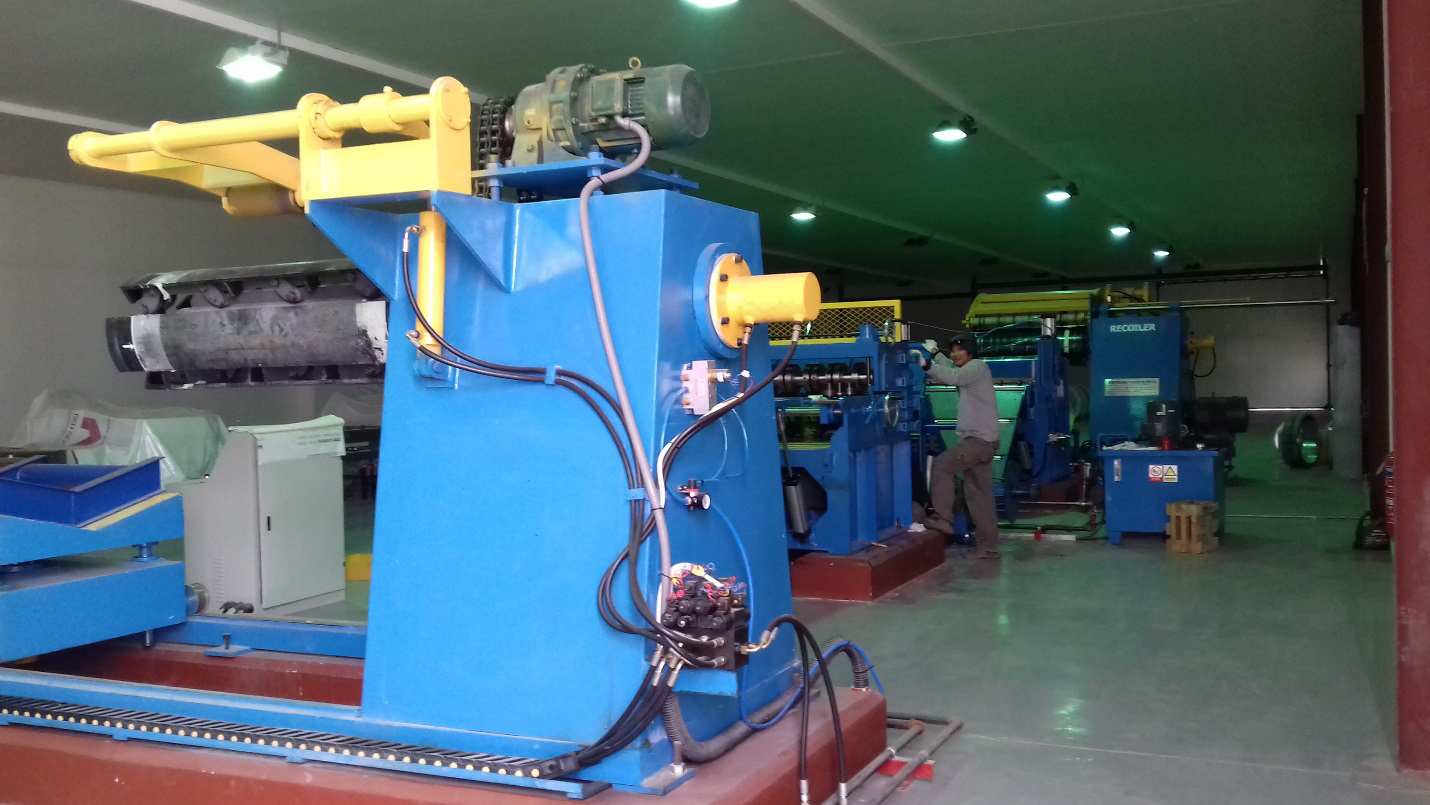

SLT 1300
SLT1600

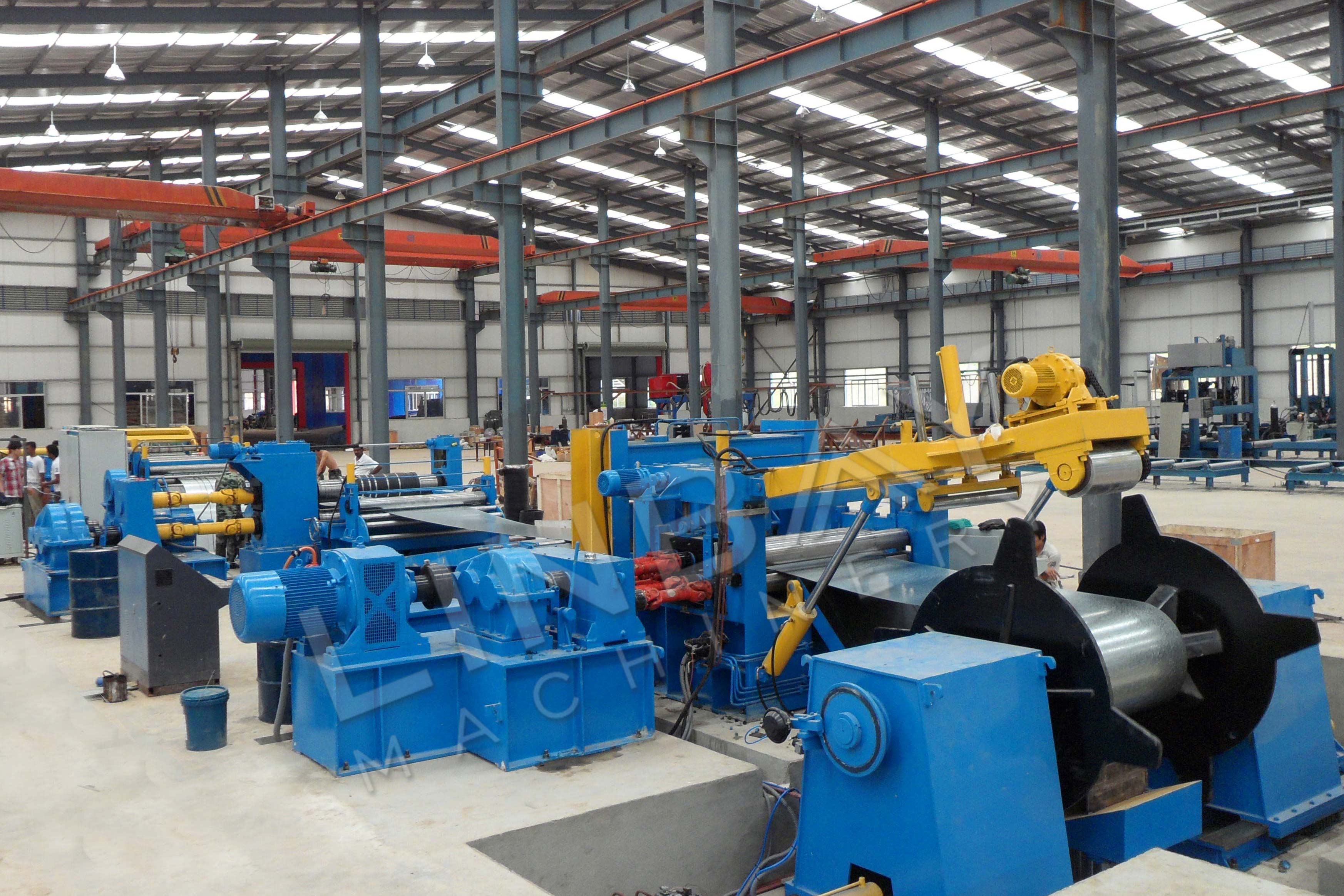

SLT1600 PRO
SLT 1300
SLT1600
SLT1600 PRO
