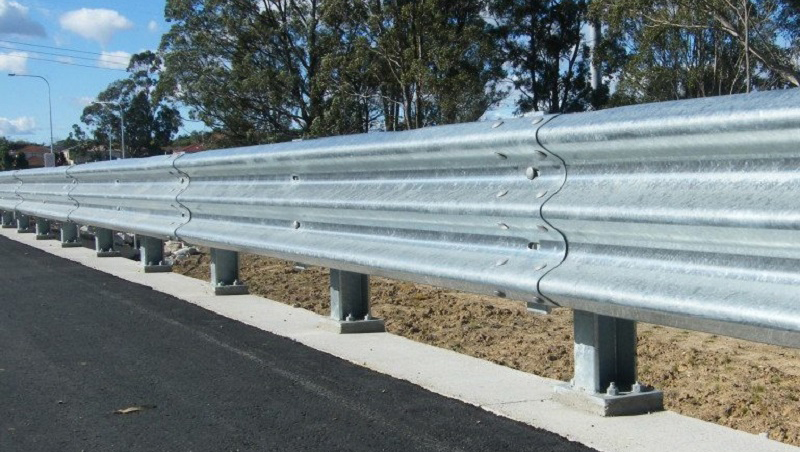

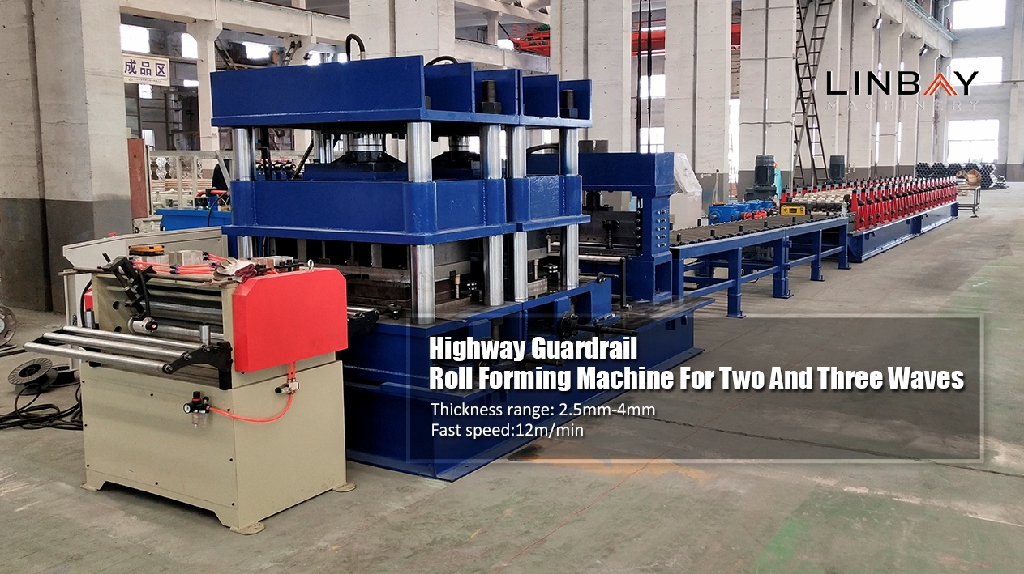

Highway Guardrail Roll Forming Machine can make W beam guardrail, thrie beam guardrail, also can be designed as two waves or three waves profiles in one machine  just need to add some stations at the end of the machine.

We had experience of Russian type Guardrail, there are four lines totally:① two/three wave guardrail roll forming machine, ② U post roll forming machine,③ connection punching line and ④end terminal punching line.

Also we have experience of producing guradrail roll forming machines can meet different standards :

AASHTO M180--American standard

RAL RG620--Germany standard

BS EN-1317-- European standard

AS/NZS 3845:1999--Australian standard

Two/Three Wave Roll Forming Machine: We have two solutions for you.

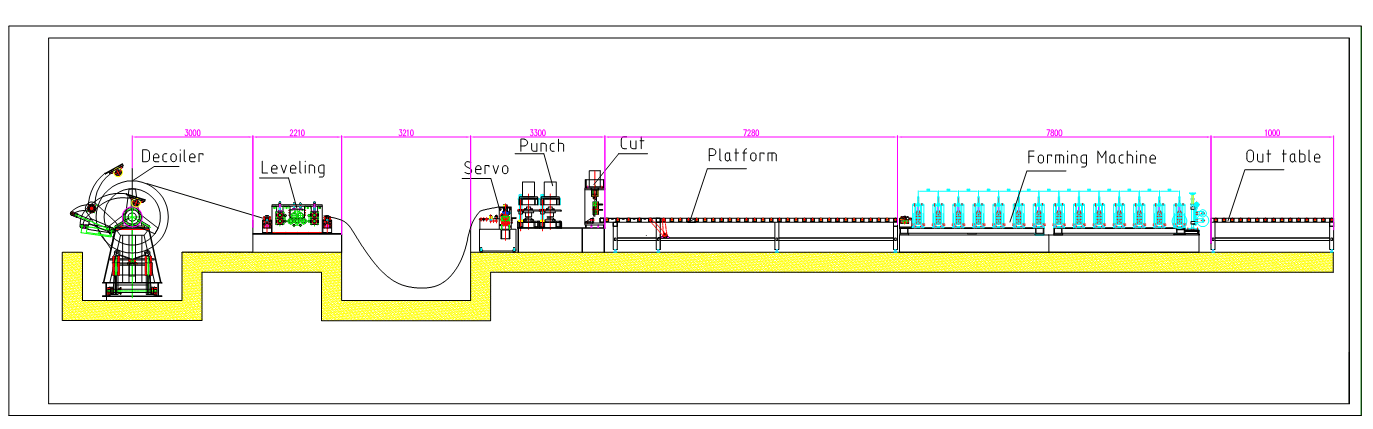

2. Hydraulic decoiler-Leveling-Servo feeder-Punching-Cutting-Platform-Roll forming machine-Out table

3. Special for Turkish two wave guardrail drawing(meet EN 1461:2009 STANDARD)

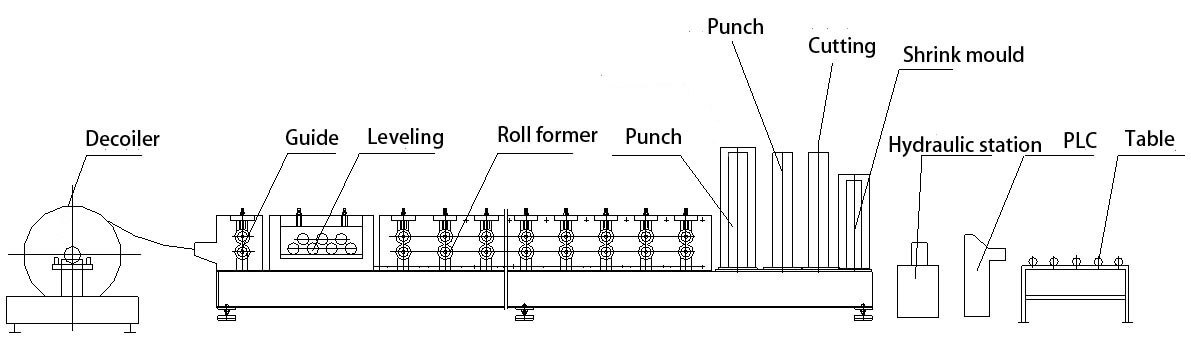

Hydraulic decoiler-Guide-Leveling-Roll forming machine-Hydraulic punch-Hydralic cut-Shrink mould-Out table

We have experience of exporting our guardrail roll formers to Russia, Saudi Arabia, Turkey, Indonesia etc. And we have a Chinese government project. We provide machine and guardrails to our government. You could see our producing line in new factory, if you visit us.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

1. Q: What kinds of experience do you have in producing highway guardrail roll forming machine?

    A: We have experience of exporting our highway guardrail roll formers to Russia, Saudi Arabia, Turkey, Indonesia, India etc. We have produced AASHTO M180--American Guardrail standard (more useful and popular), RAL RG620--Germany Guardrail standard, BS EN-1317-- European Guardrail standard, AS/NZS 3845:1999--Australian Guardrail standard, EN 1461:2009 - Turkish Guardrail Standard.

2. Q: Can I produce W beam and Thrie beam guardrails on one machine?

    A: One operator adds or takes off 5 stations of rollers according to our drawing. It wouldn't more than 30 minutes..

3. Q: How to change from producing W beam to thrie beam? And how long it takes?

    A: According to the drawing given to replace forming rollers of last five forming station, process of changing just needs 30mins and only by one operator.

4. Q: What is delivery time of highway guardrail roll forming machine?

    A: 80 days to 100 days depends on your drawing.

5. Q: What is your machine speed?

    A: Machine’s working speed depends on drawing specially punch drawing. Normally line speed is around 8m/min.

6. Q: How could you control your machine’s precision and quality？

    A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

7. Q: What is your after-sales service system?

    A: We don’t hesitate to give you a 2 years warranty period for whole lines, 5 years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.

Turkish Guardrail profile drawing:

Meet EN 1461:2009 Standard
