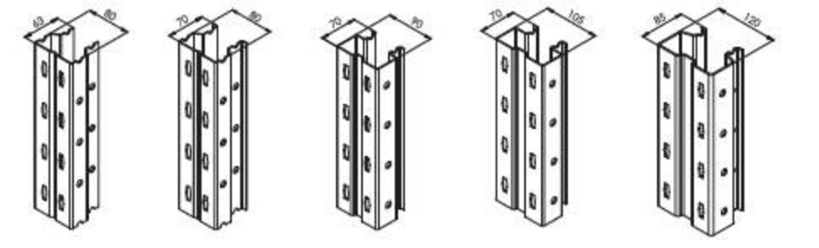

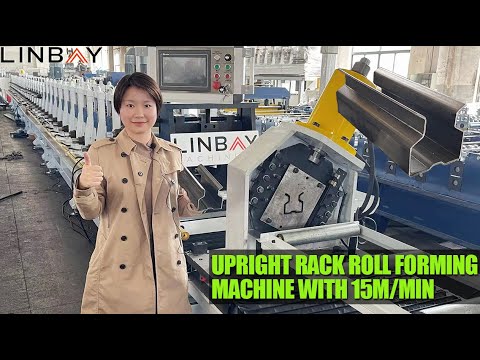

Upright rack is a kind of warehouse shelf system which is used in conjunction with the rack beam, shelf panel and bracing. Our upright rack roll forming machine can produce a wide range size of the products. The way to change the size is also very convenient. We are equipped with automatic size adjustment function which can quickly change the width and the height. The normal thickness could be 2-2.5mm with raw material Galvanized Coil. This machine is applied to Warehouse, supermarket and industry.

Flow chart:

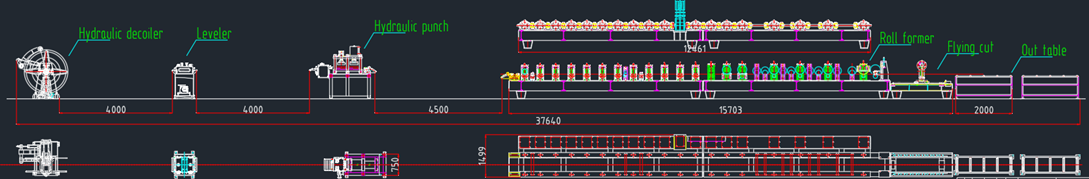

Hydraulic decoiler—Leveler—Servo feeder—Hydraulic punch—Roll former—Hydraulic flying cut—Out table

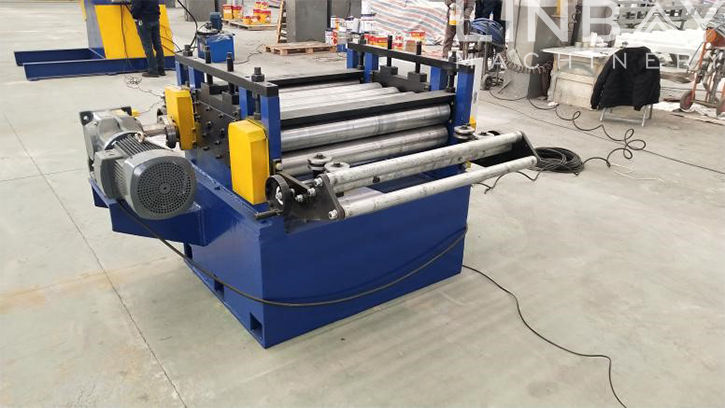

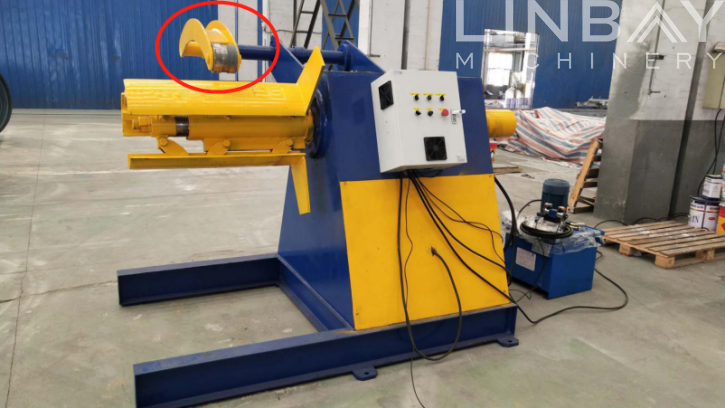

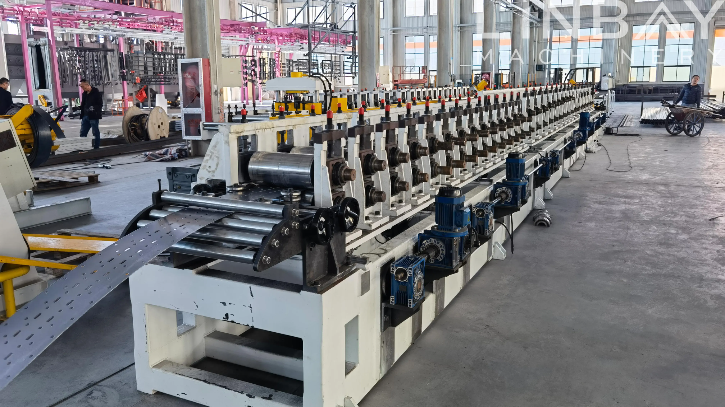

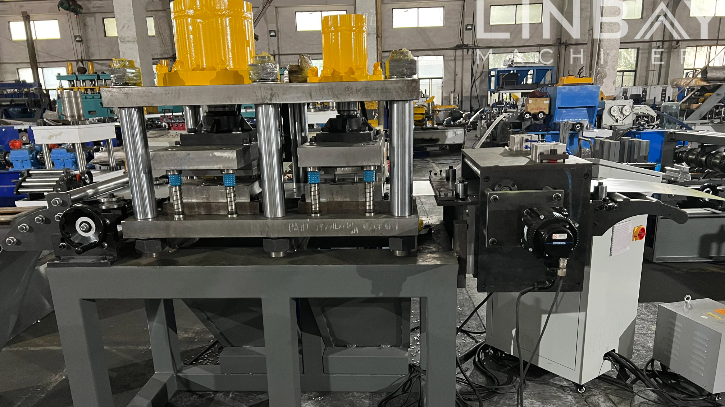

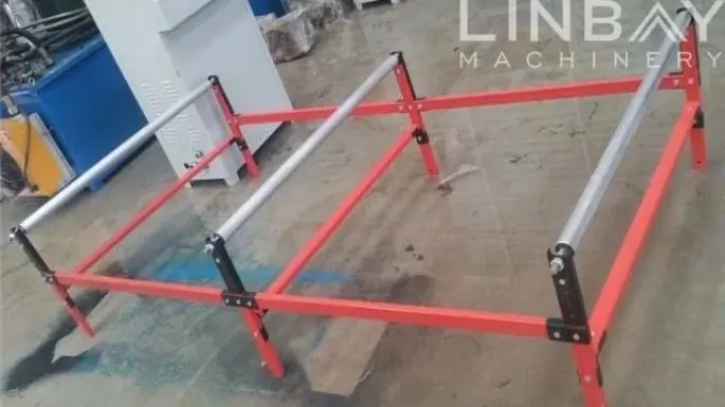

Our upright rack roll forming machine consists of 7 parts. First it is equipped with a hydraulic uncoiler. The hydraulic running motor power is 5.5kw and the hydraulic power is 3kw. Its feeding width is 300mm.  The raw material of the coil should be Galvanized Steel and its normal thickness is 2-2.5mm. Since the material is thicker, the yield strength is 350Mpa. This whole production line weighs 27.5 tons. The next part is a leveler to prevent the coil bending. The servo feeder motor power is 1.9kw with reducer. Go through the punching part, the machine uses a hydraulic punch. The hydraulic motor power is 11kw offered by hydraulic station. The section of the roll former we use a cast iron structure which is high efficient. There are 18 stands in the forming station and we provide a 15kw motor. The speed of the production line is 4m/min.  Next the shearing part uses a hydraulic flying cut. It is a non-stop type which can increase the cutting speed. Finally, there is an out table.

We have extensive export experience, for example, USA, South Africa, Cameroon, Australia etc.

1. Q: What kinds of experience do you have in producing bracing roll forming machine?

A: We have exported pallet rack production line to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture Upright beam roll forming machine, Box beam roll forming machine, Step beam roll forming machine and Shelf panel roll forming machine etc. We are confident to solve your shelve problem.

2. Q: How many sizes can produce this machine?

A: We adopt cast iron structure or cantilever structure with automatic width-change and height-change system. For upright rack beam, our customer usually make 3-4 sizes in one machine. We would check your profile drawings to meet your needs. In this way, we will greatly reduce your cost and time.

3.Q: What is delivery time of your bracing roll forming machine?

A: 80 days to 100 days depends on your drawing.

4. Q: What is your machine speed?

A: Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. In addition, considering the complicated punch holes, we recommend that you use a separate punch line to increase production speed, and it’s more cost-effective

5. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory-self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

6. Q: What is your after-sales service system?

A: We don’t hesitate to give you a 2 years warranty period for whole lines, 5 years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
