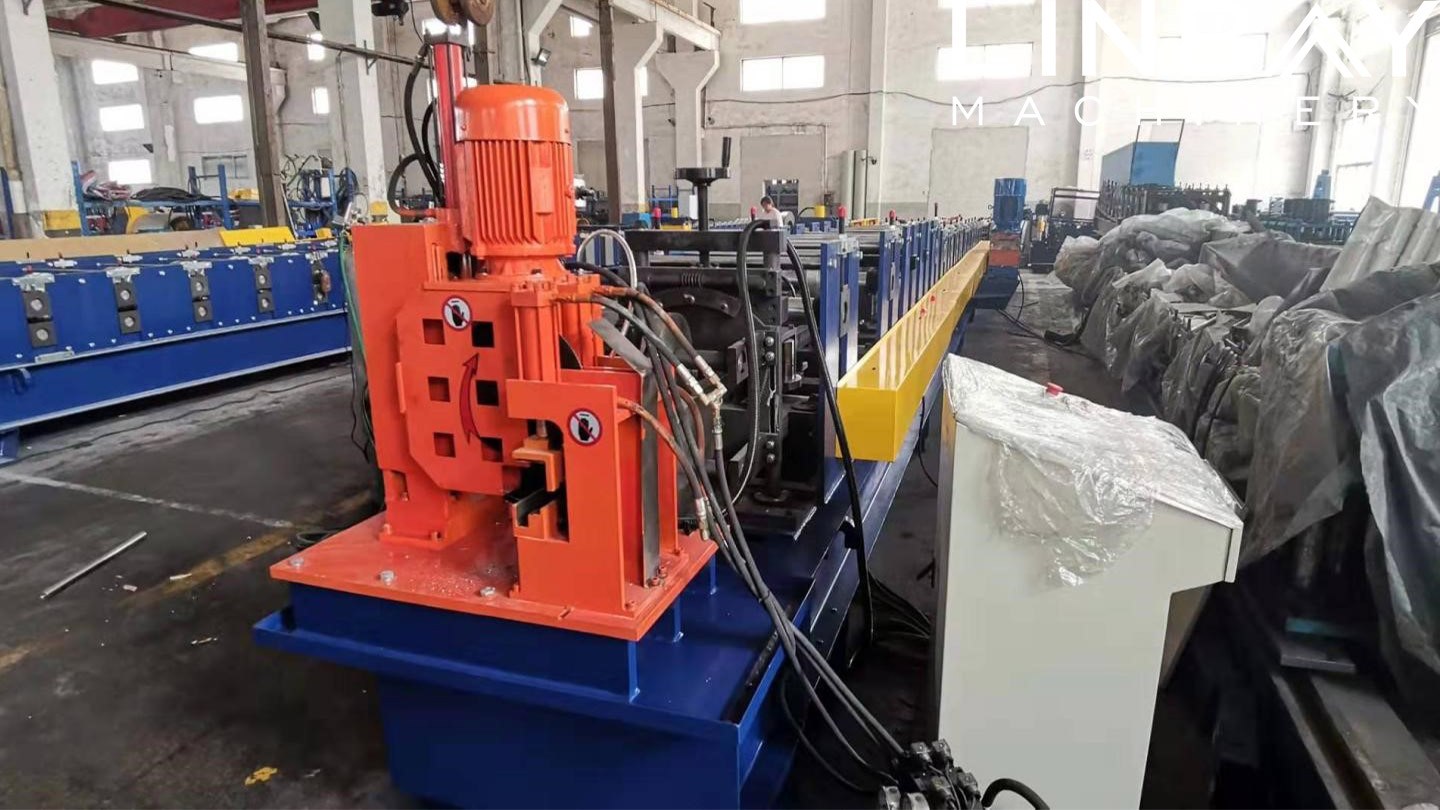

Step beam roll forming machine is widely used in warehouse system. It used with the shelf panel, bracing etc. Our step beam roll forming machine uses an automatic size adjustment which can easily change the size. The normal thickness of the coil should be 1-1.8mm with raw material Galvanized steel or hot rolled steel. This machine is applied to supermarket, warehouse and industry.

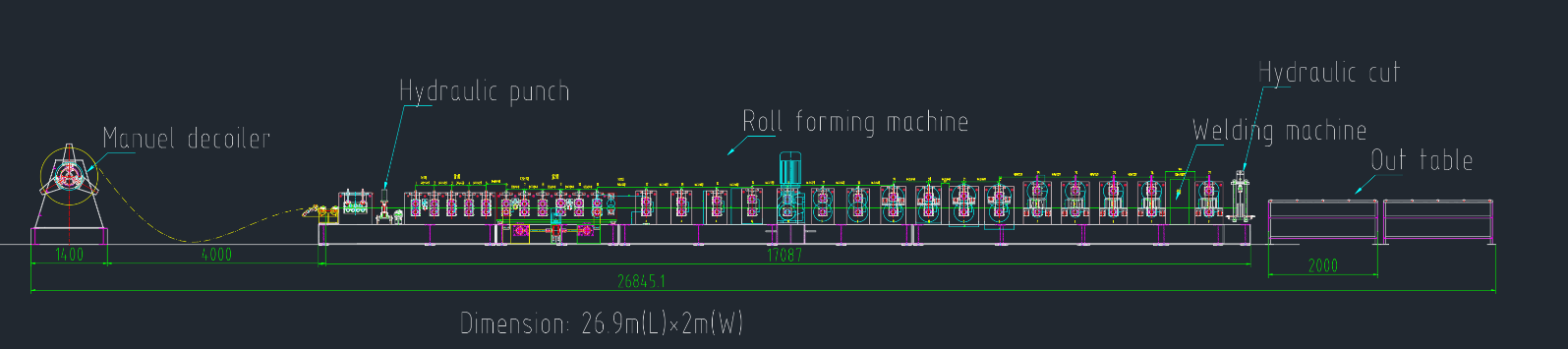

Flow chart:

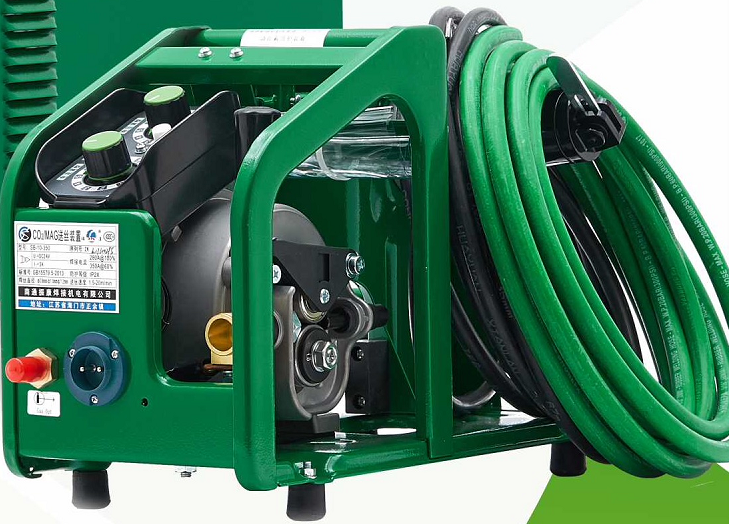

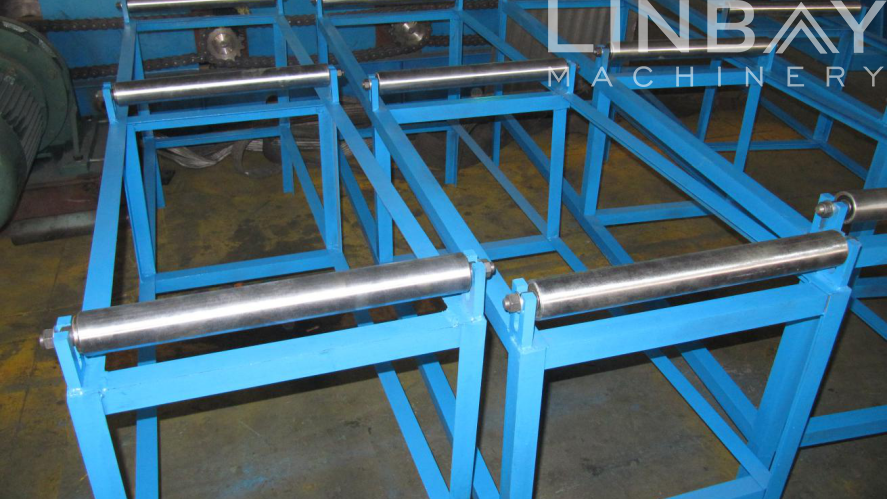

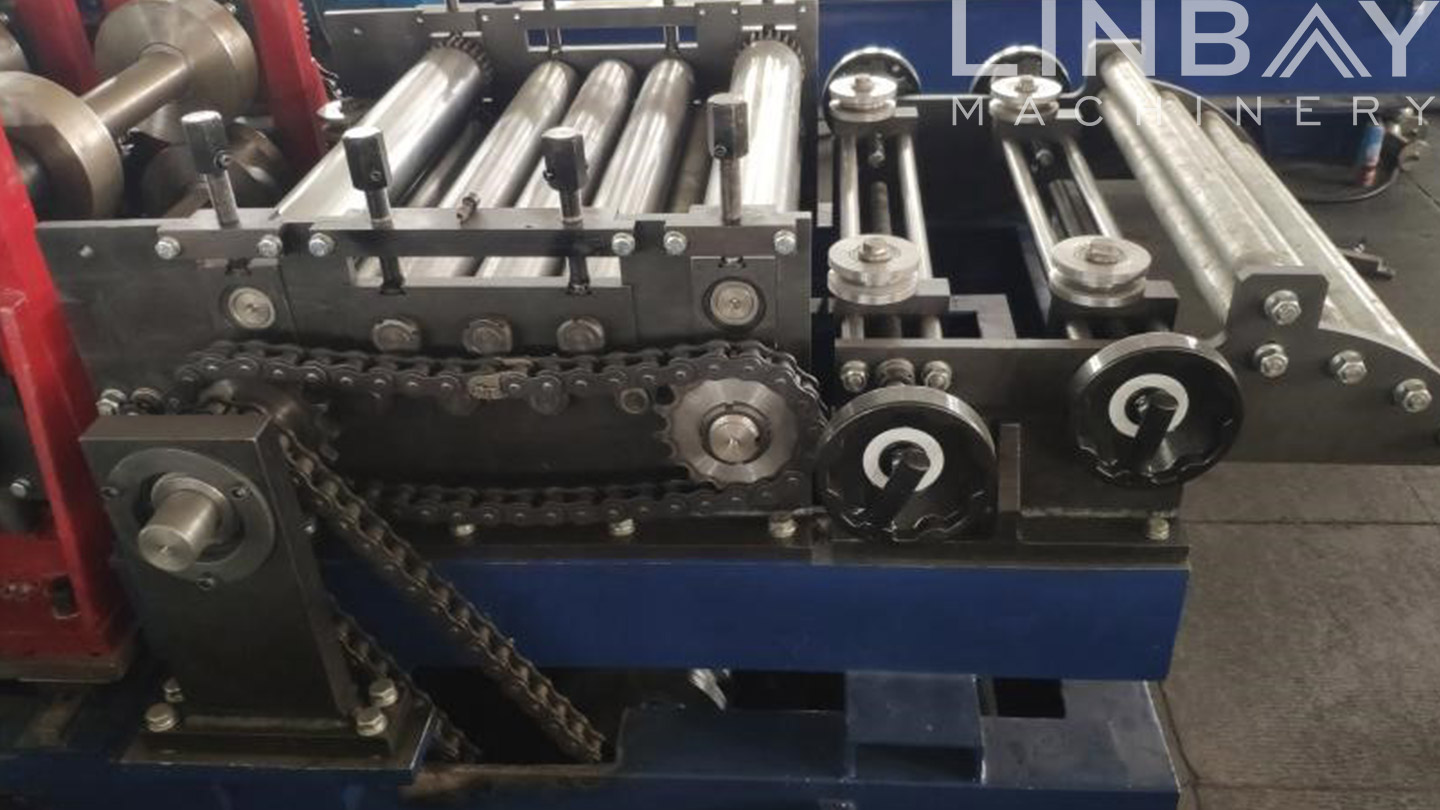

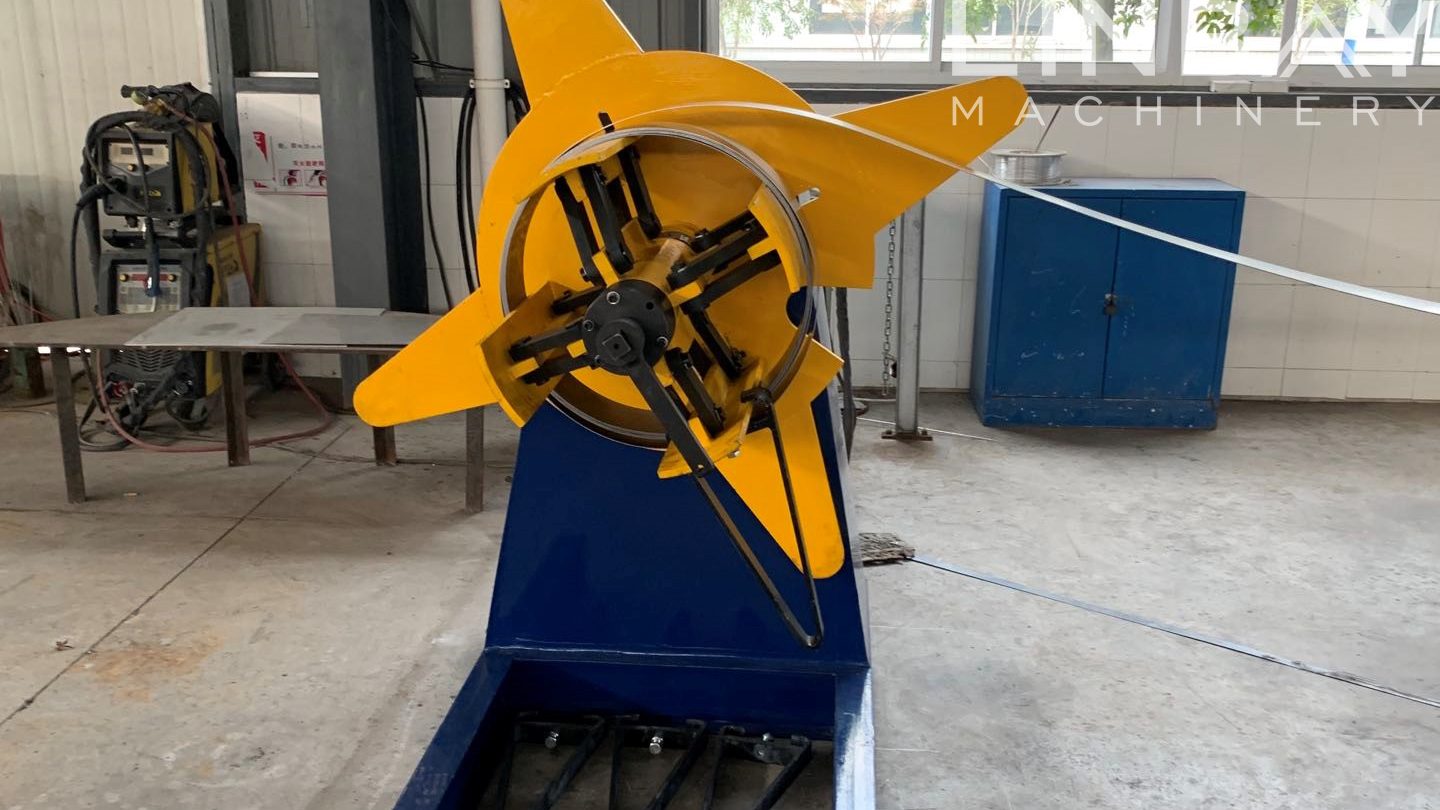

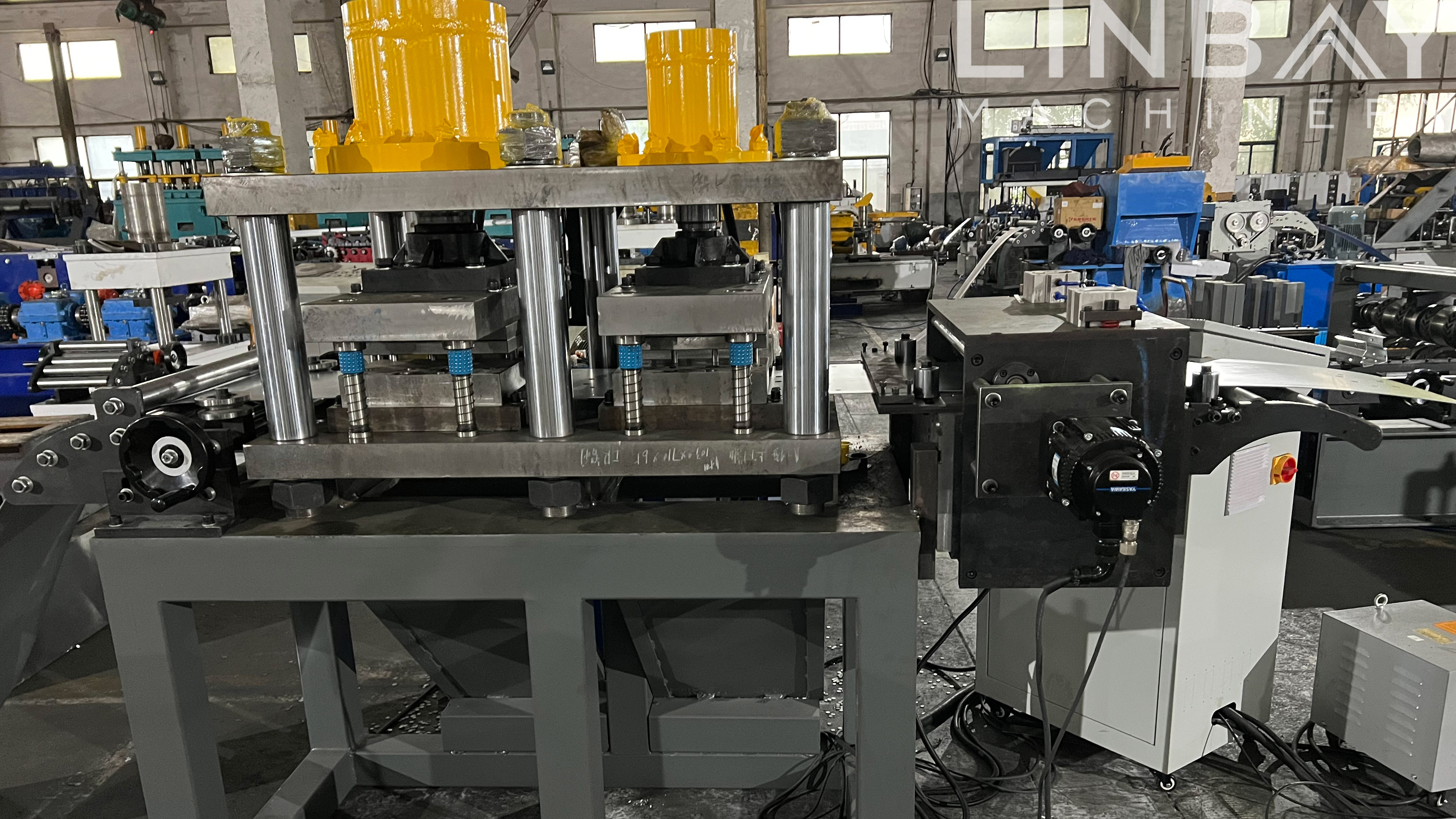

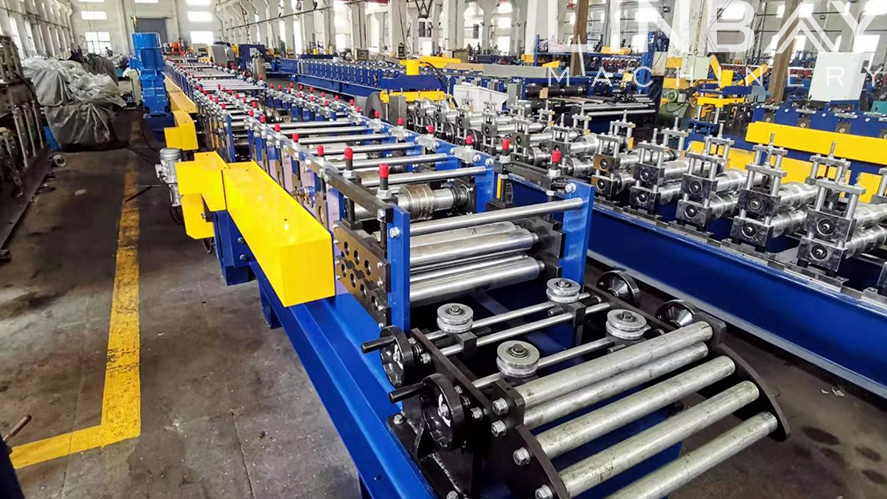

Manual uncoiler—guiding—Leveler—Hydraulic punch—Roll former—Welding machine—Hydraulic cut—Out table

1. Q: What kinds of experience do you have in producing bracing roll forming machine?

A: We have exported pallet rack production line to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture Upright beam roll forming machine, Box beam roll forming machine, Step beam roll forming machine and Shelf panel roll forming machine etc. We are confident to solve your shelve problem.

2. Q: How many sizes can produce this machine?

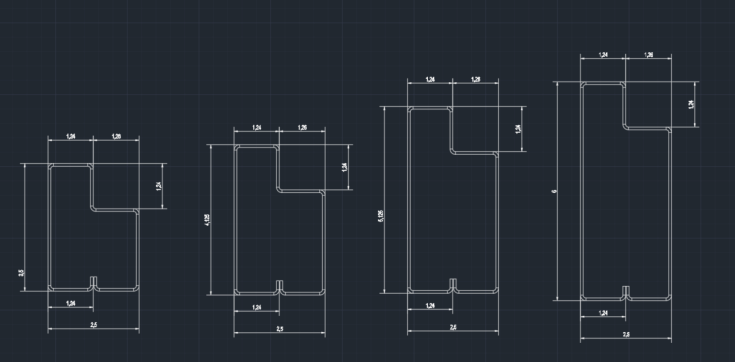

A: We adopt cast iron structure or cantilever structure with automatic width-change and height-change system. For upright rack beam, our customer usually make 3-4 sizes in one machine. We would check your profile drawings to meet your needs. In this way, we will greatly reduce your cost and time.

3.Q: What is delivery time of your bracing roll forming machine?

A: 80 days to 100 days depends on your drawing.

4. Q: What is your machine speed?

A: Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. In addition, considering the complicated punch holes, we recommend that you use a separate punch line to increase production speed, and it’s more cost-effective

5. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory-self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

6. Q: What is your after-sales service system?

A: We don’t hesitate to give you a 2 years warranty period for whole lines, 5 years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
