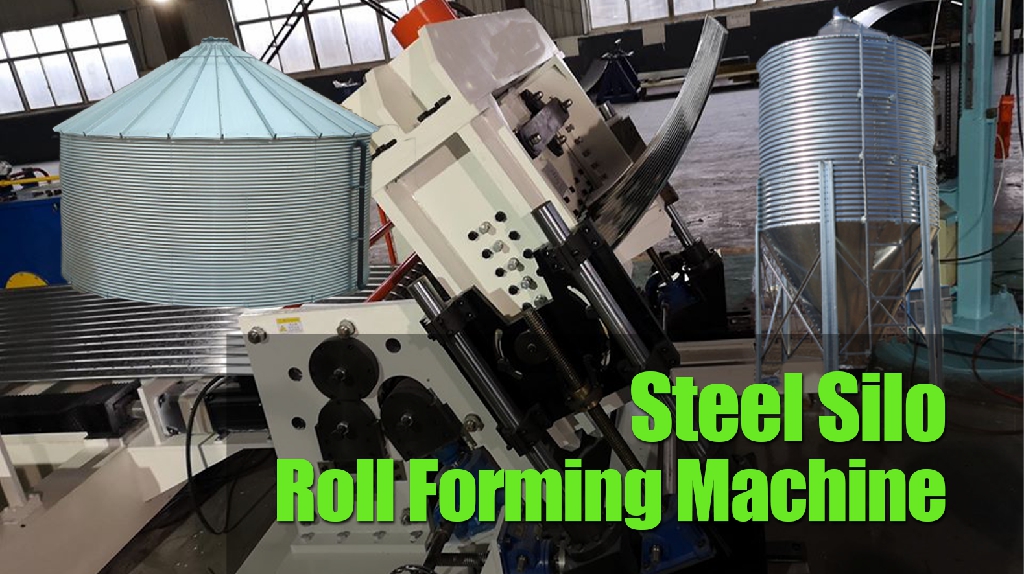

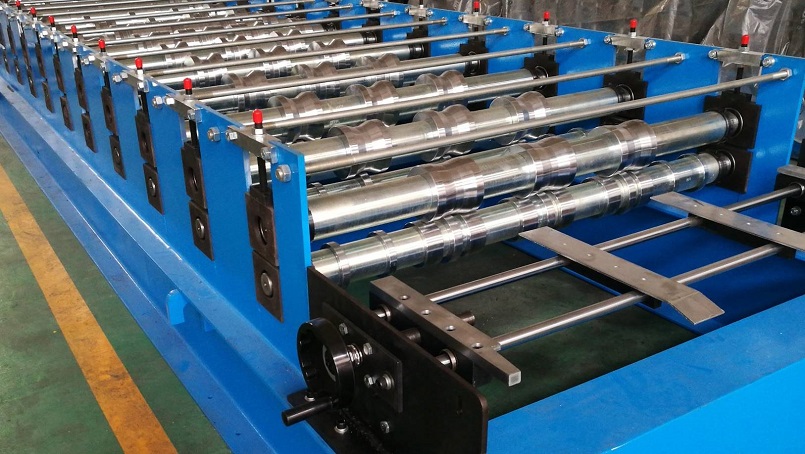

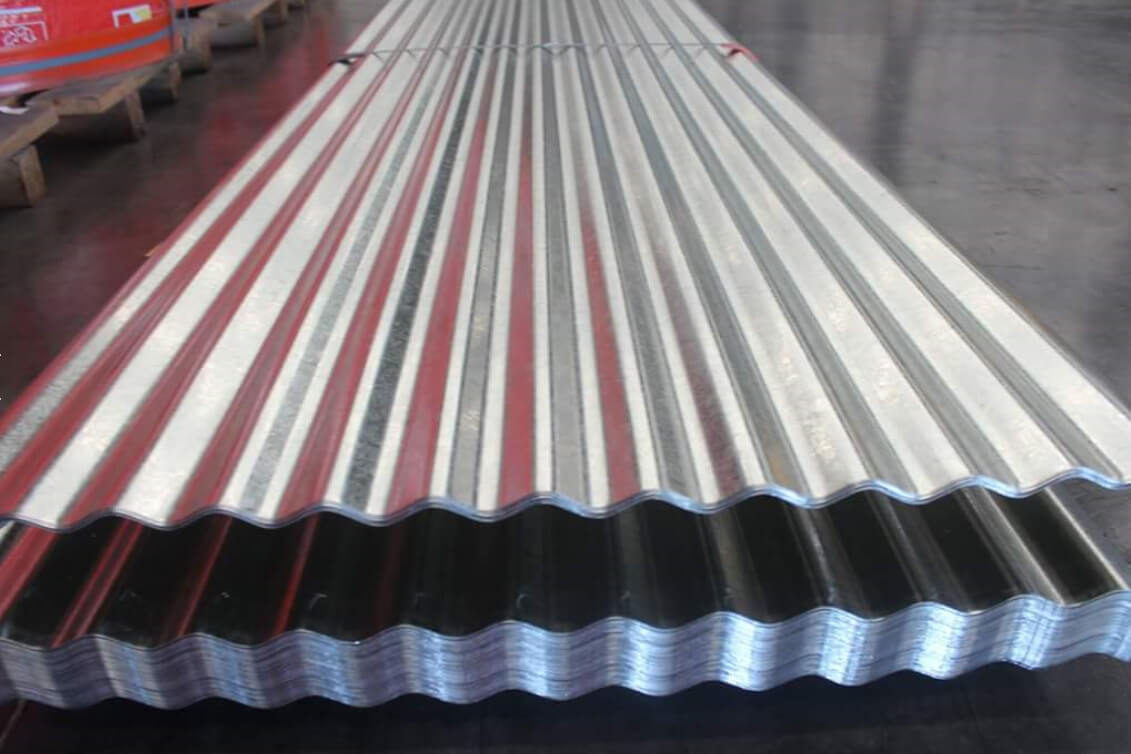

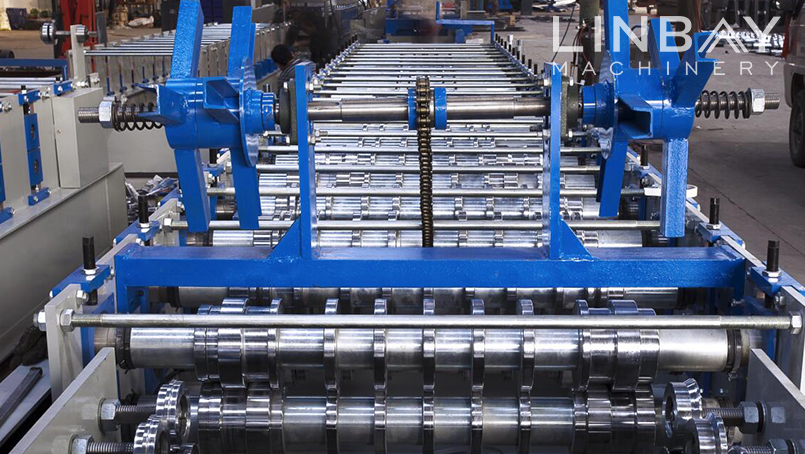

This Steel Silo Roll Forming Machine can produce 4-5mm corrugated sheets. We use forged iron stands and some customers ask gearbox driving system to mantain the machine work stablely.

Max working speed is around 8m/min with punching holes, cutting and curving process.

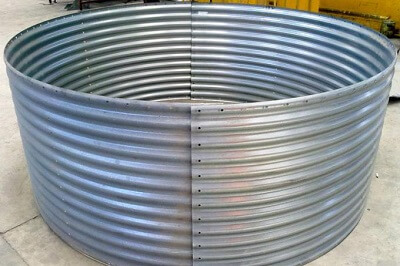

This steel silo is widely used granary,warehouse, grain storage etc.

Apllication

Technical Specification

Steel silo roll forming machine
No.	Item	Specification	Optional
1	Suitable material	Type:Galvanized Coil, PPGI, Carbon steel Coil
		Thickness(mm):4-5
		Yield strength: 250 - 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	5-8	Or according to your requirement

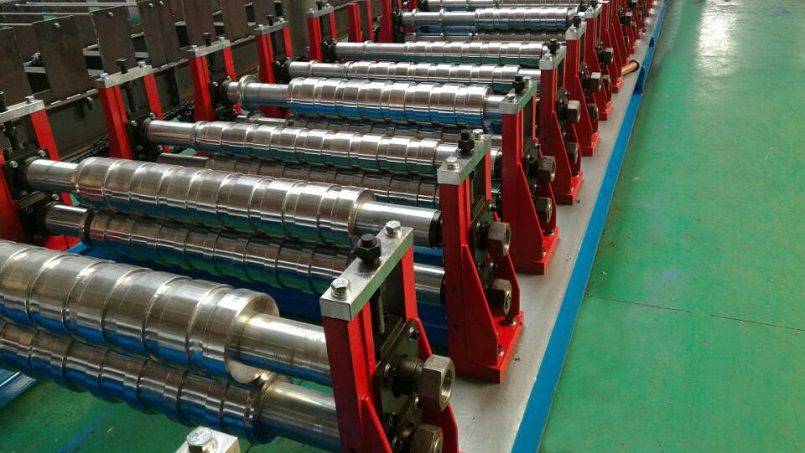

3	Forming station	18	According to your profile

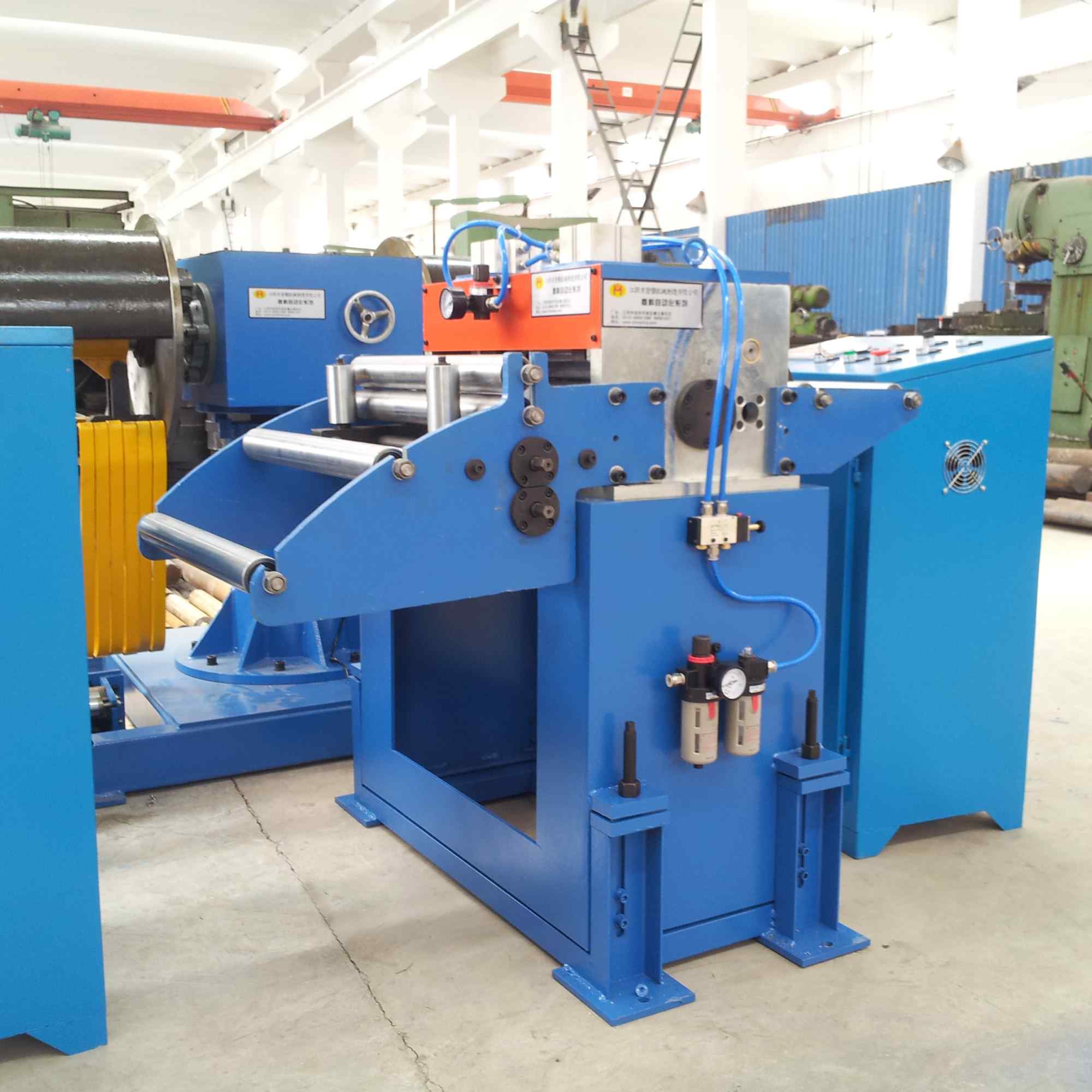

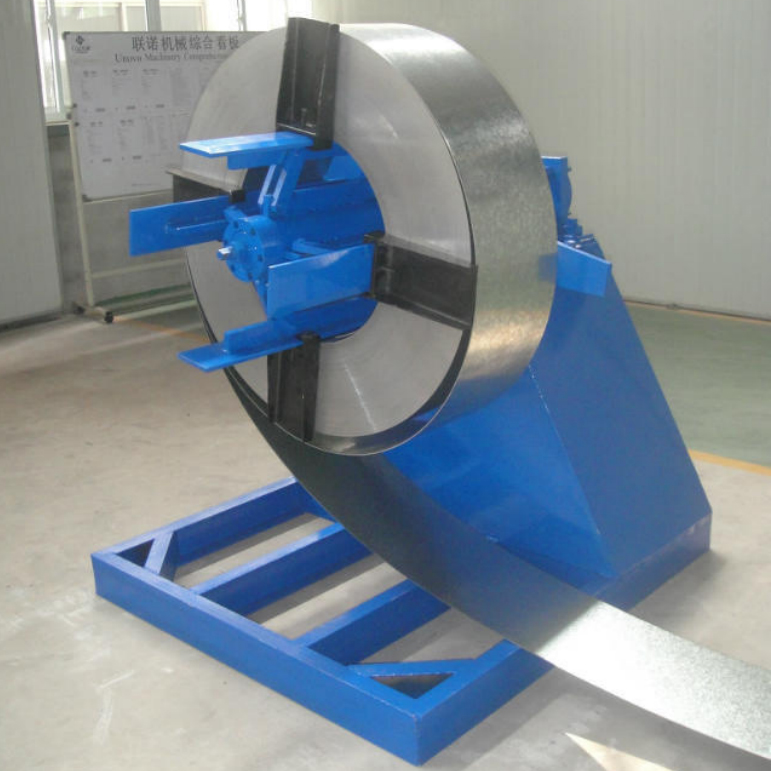

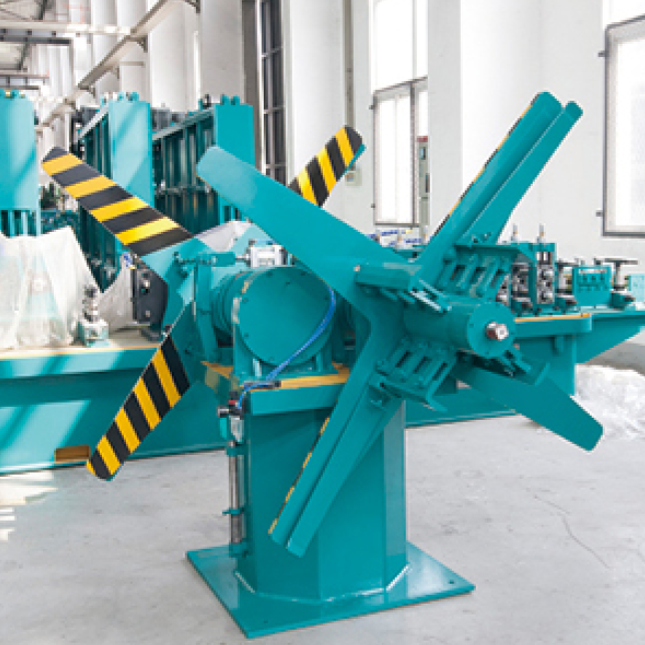

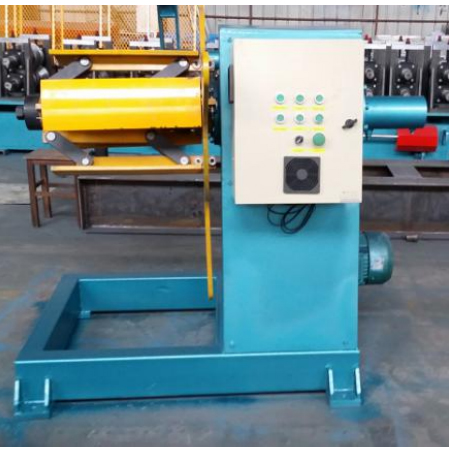

4	Decoiler	Hydraulic decoiler	Manual decoiler or double head decoiler
5	Main machine motor	Sino-German Brand	Siemens
6	PLC brand	Panasonic	Siemens
7	Inverter brand	Yaskawa

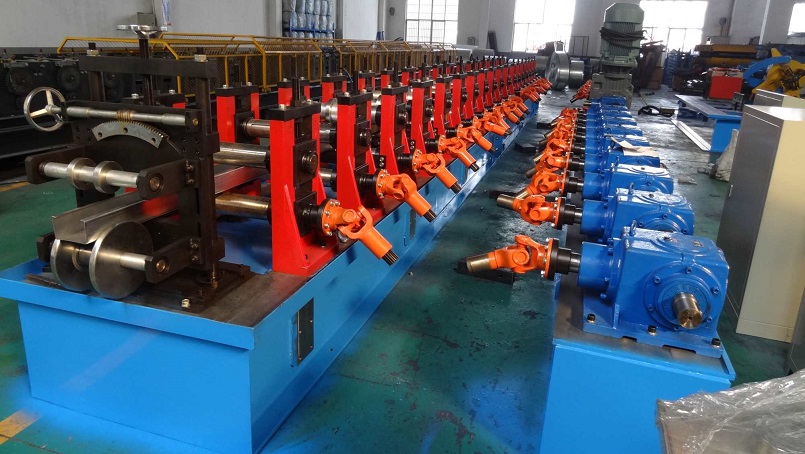

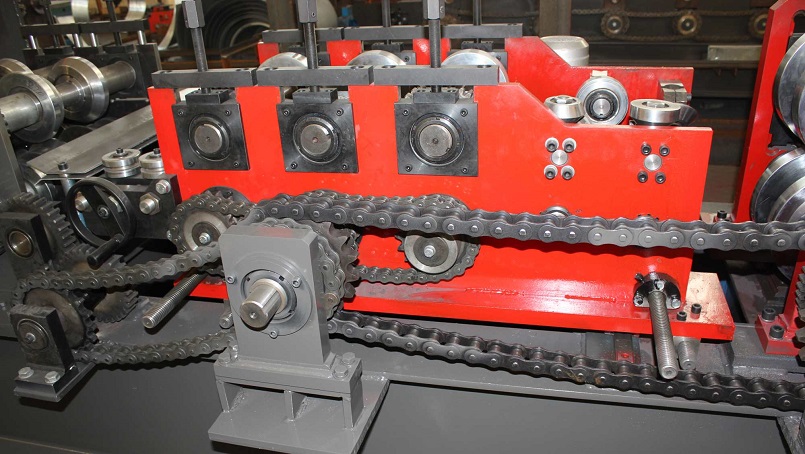

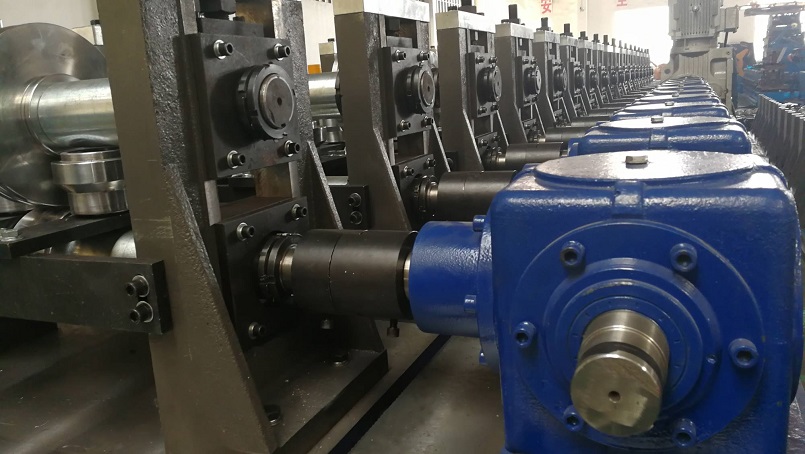

8	Driving system	Gearbox drive	Chain drive

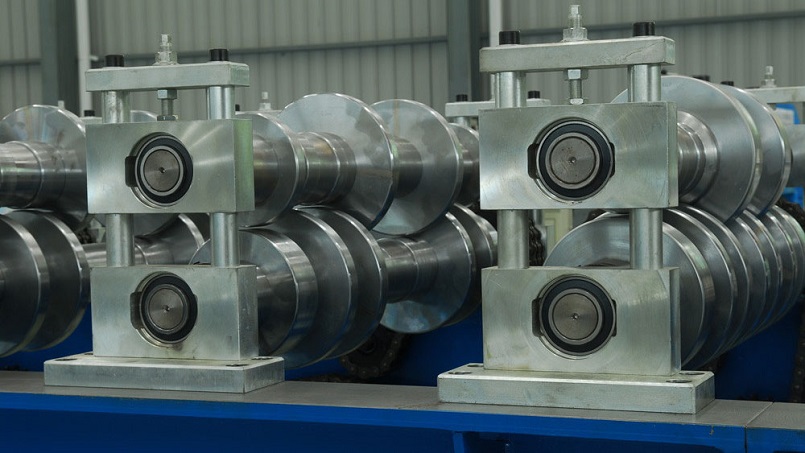

9	Rollers’ materail	Steel #45	GCr15

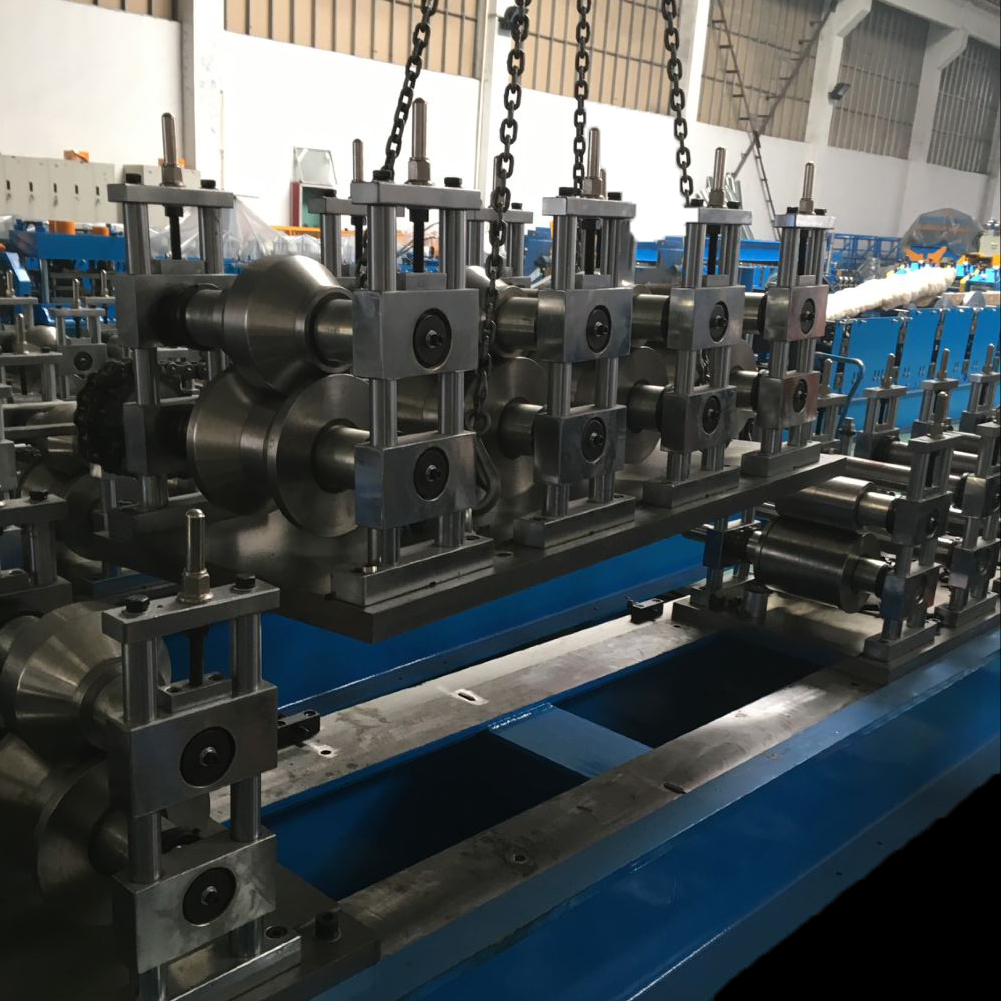

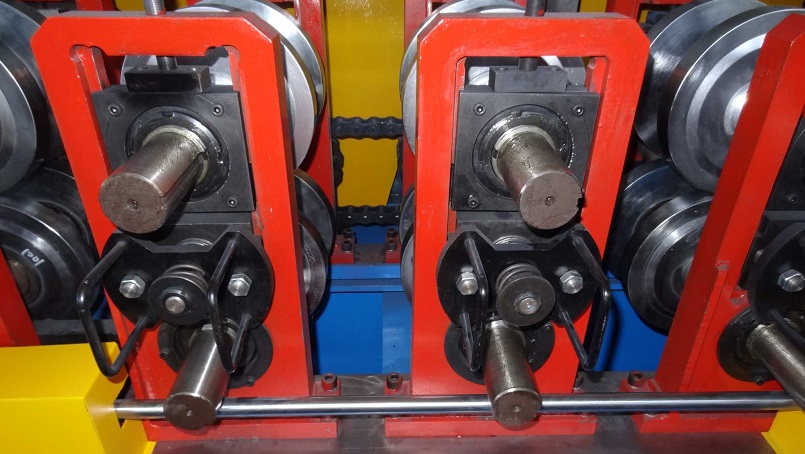

10	Station structure	Forged iron station	Wall panel station Or torri stand structure

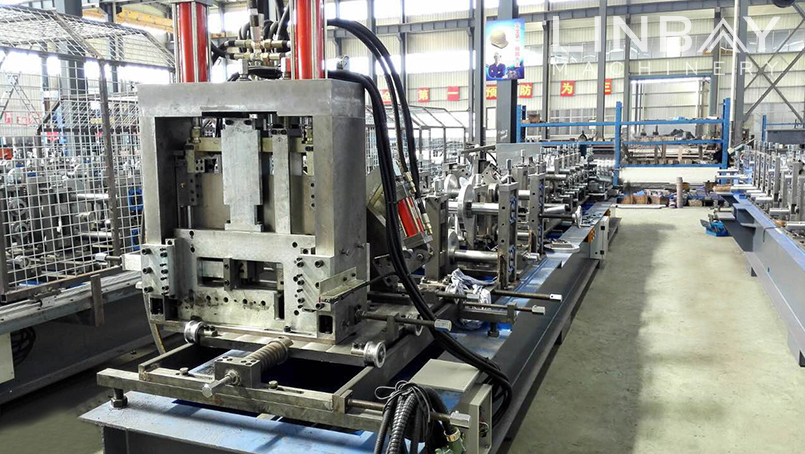

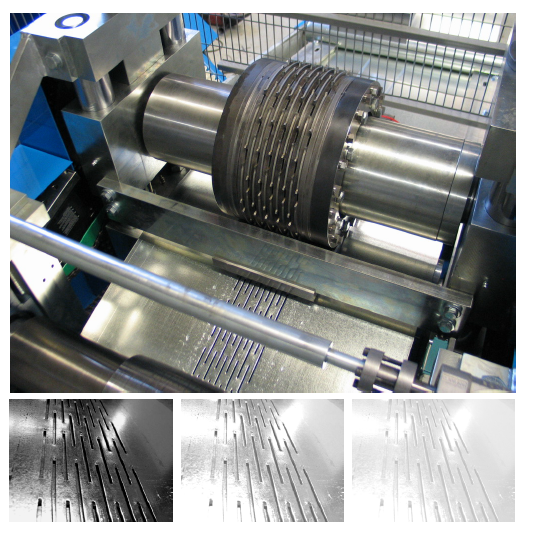

11	Punching system	No	Hydraulic punching station or Punching press

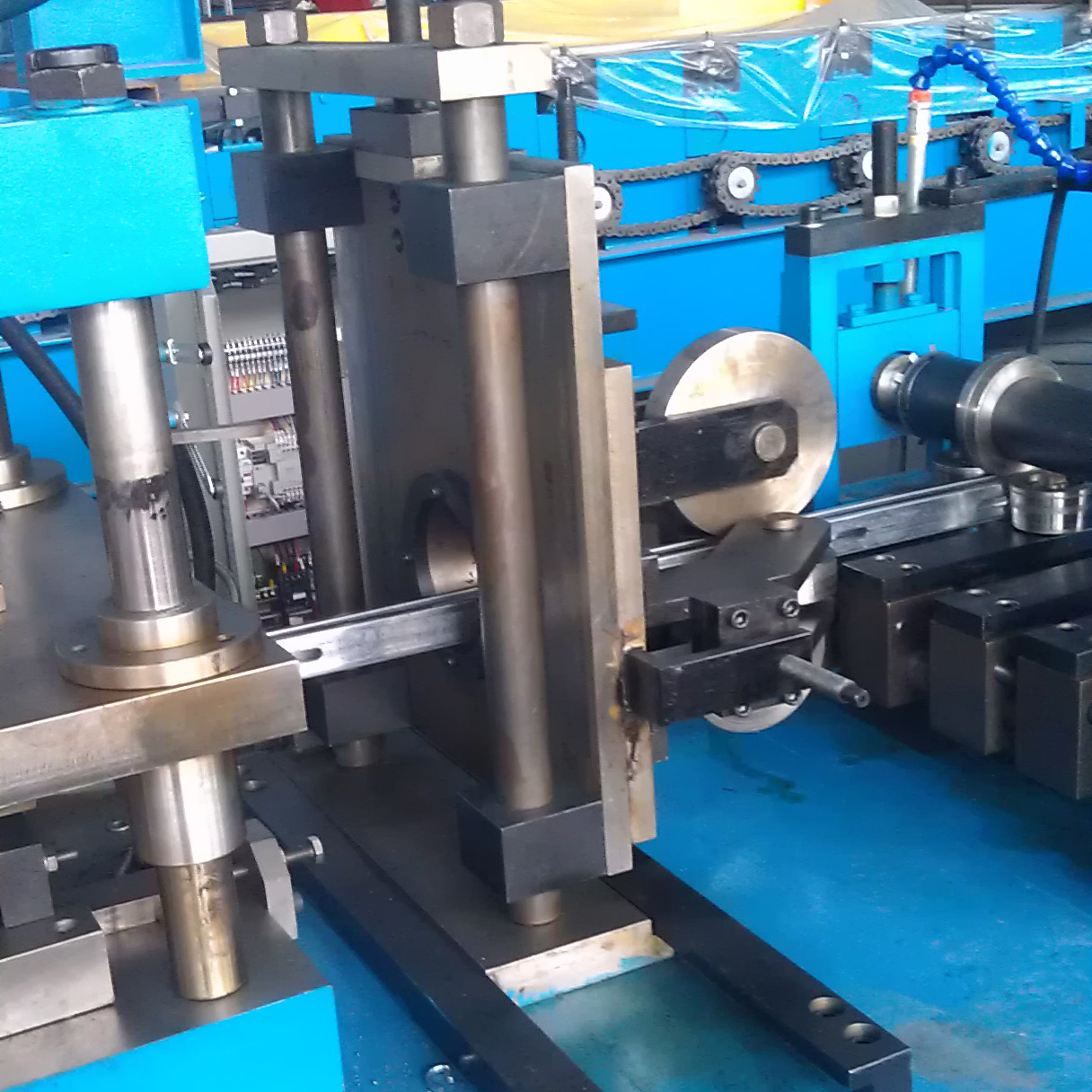

12	Cutting system	Post-cutting	Pre-cutting
13	Power supply requirement	380V 60Hz	Or according to your requirement
14	Machine color	Industrial blue	Or according to your requirement
