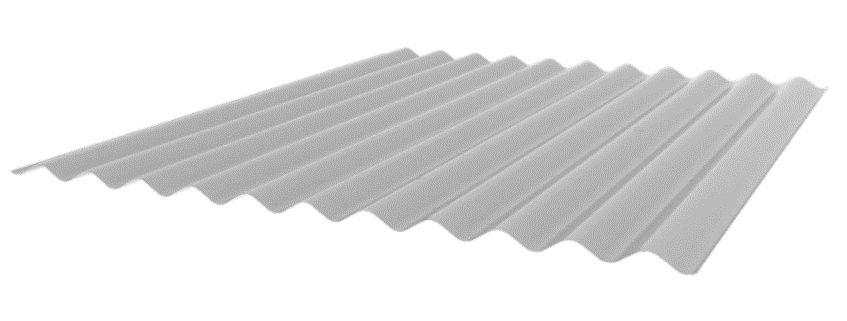

836 Corrugated panel roll forming machine is a kind of Roof panel Roll Forming Machine. Its normal thickness is 0.4-0.6mm. The raw material could be galvanized. Our machine has an extensive use in Roofing system.
In Construction Industries, we are able to manufacture more machines like 760 Sinusoidsal panel roll forming machine, 988 Sinusoidsal panel roll forming machine, ST762 Sinusoidsal panel roll forming machine etc.
Linbay makes different solutions according to the customer’s drawings, tolerances and budgets, providing professional one-on-one service to suit your various needs. Whichever production line you choose, the quality of Linbay Machinery will ensure that you get the perfect functional profile.
LINBAY will hereby explain how we install our machines.
First of all, we adjust the machine in the factory, we first ask the size you want to produce, we put the machine in the size that we want to produce and adjust all the correct parameters before shipping, so that you don’t have to change anything when you get this machine.
Then, when we disassemble the machines for debugging, we shoot videos so that you know how to connect them. Each machine has its own video. In the video, we will show how to connect cables and tubes, place oil, put physical structures together, etc...
Here is the example of this video: https://youtu.be/p4EdBkqgPVo
Hydraulic ecoiler--guiding--Roller former--Electric cut--Out Table

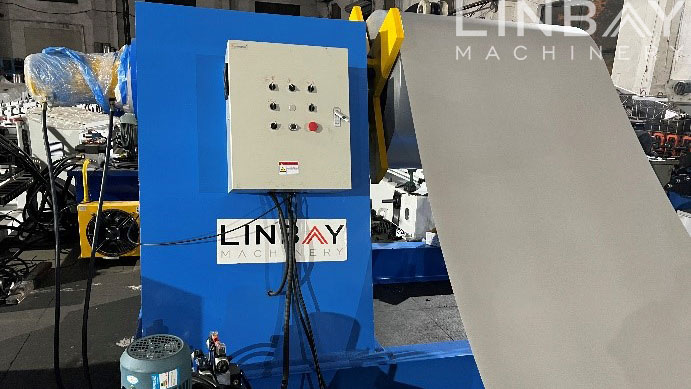

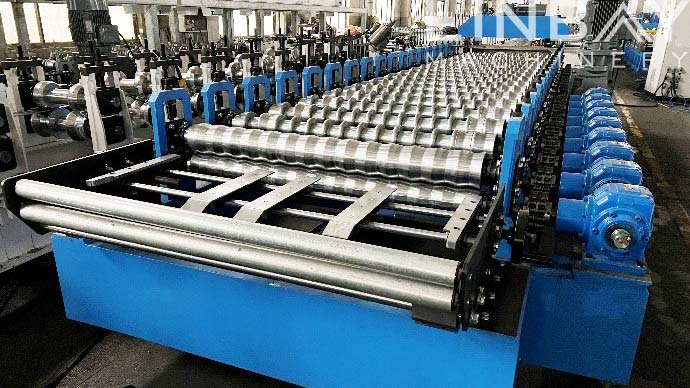

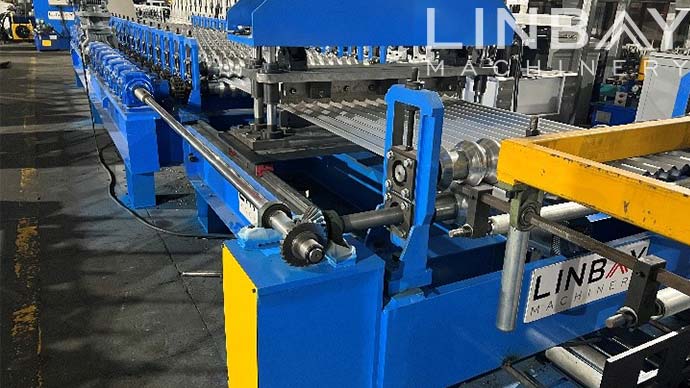

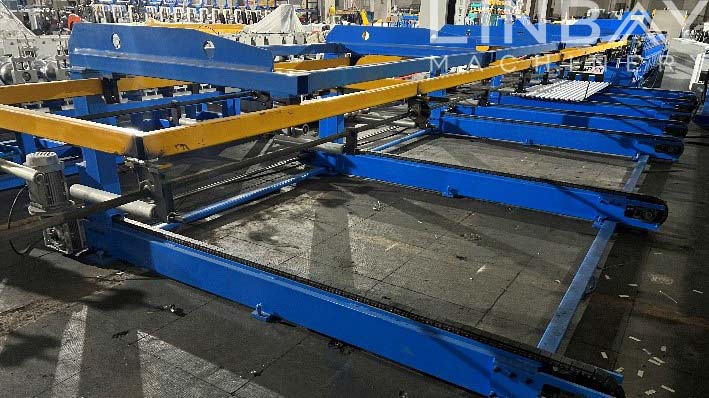

Our 836 Sinusoidsal panel roll forming machine is first equipped with a hydraulic uncoiler. The hydraulic running motor power is 5.5kw and the hydraulic motor power is 3kw. Its feeding width is 1000mm. The material of the coil could be galvanized and the normal thickness is 0.4-0.6mm. The yield strength of the coil is 300Mpa. This entire production line Weighs 15 tons. Going through the guiding part, is the main body of the roll forming machine. We choose a gearbox-driven cast iron structure which is more stable. There are 18 stands in the forming station and we provide a 11kw motor. The speed of the forming machine is 40m/min. In the shearing part the machine uses an electric cut. This cutting method is high efficiency which will increase the cutting speed. Finally, there is an out table.
We have extensive export experience, for example, India, Spain, UK, Mexico etc.
Here are some pictures of our machine:

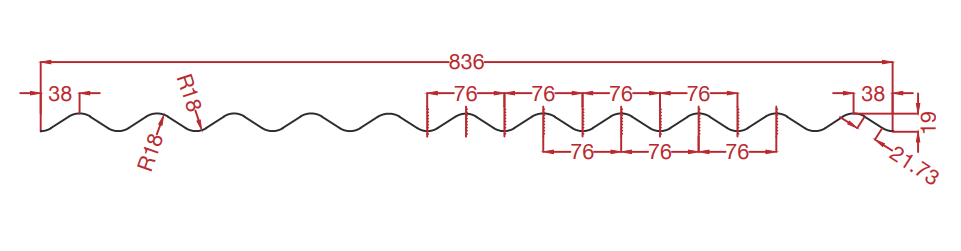

836 Corrugated Panel Roll Forming Machine | ||
Machinable Material : | Galvanized Coil | Thickness(MM):0.4-0.6 |
Yield strength : | 300 Mpa | |
Nominal forming speed(M/MIN): | 0-40 | * Or according to your requirement (Optional) |
Forming station : | 18 stands | * According to your steel material |
Decoiler : | Hydraulic decoiler | |
Main machine motor brand : | Simens Brand | |
Driving system : | Gearbox drive | |
Machine structure: | Cast iron station | |
Rollers’ material : | GCr15 | * Cr 12 (Optional) |
Cutting system : | Electric cut | * Pre-cutting (Optional) |
Frequency changer brand : | Yaskawa | * Siemens (Optional) |
PLC brand : | Siemens | |
Power supply : | 380V 50Hz | * Or according to your requirment |
Machine color : | Industrial blue | * Or according to your requirment |
