Cross bracing is an essential part of heavy-duty rack structures, diagonally supporting between two uprights. It prevents the racks from wobbling and maintains alignment under heavy loads. It is typically made from hot-rolled steel, cold-rolled steel, or galvanized steel with a thickness of 1.5-2 mm.

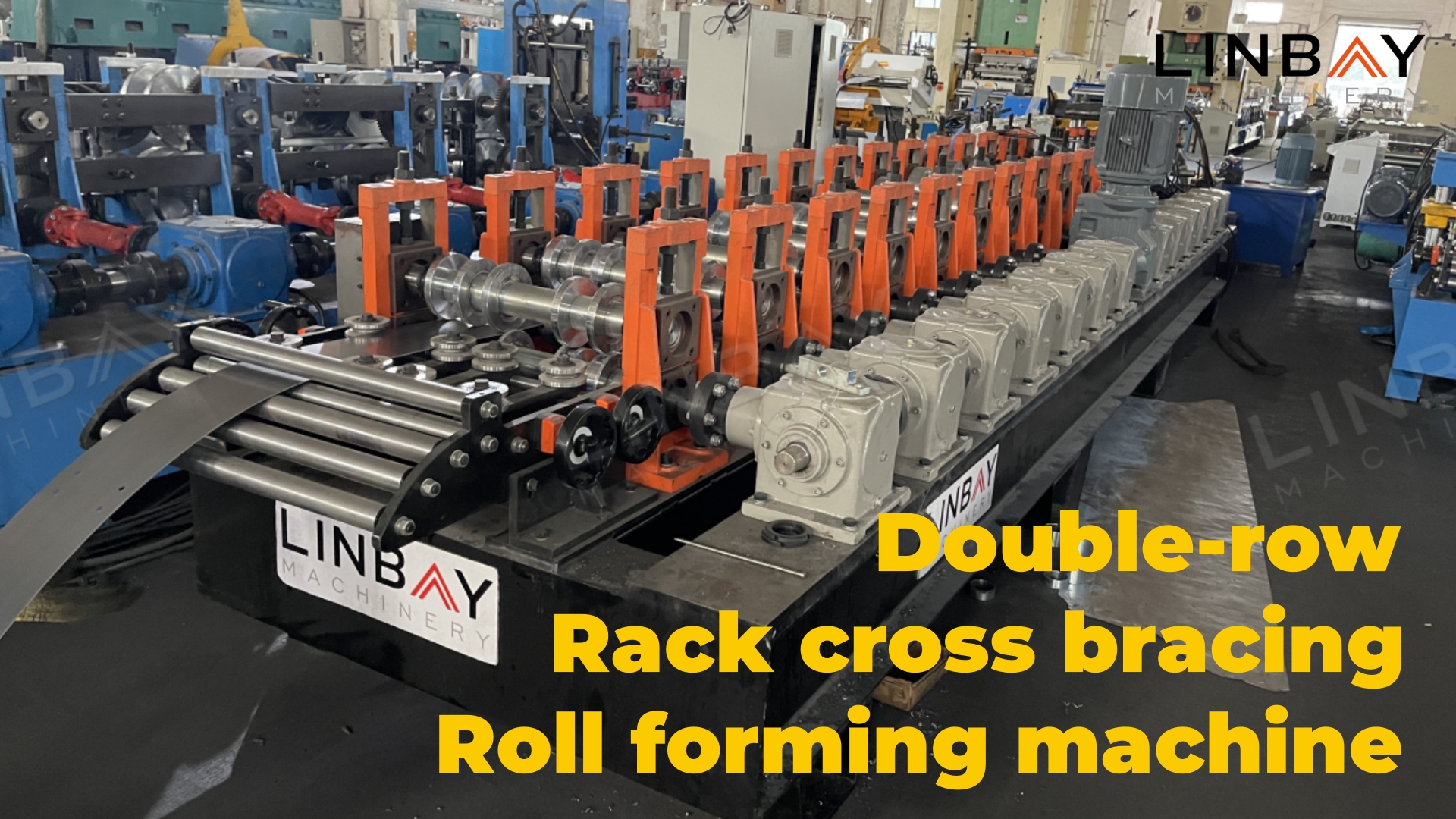

The traditional production solution of cross bracing is the bending machine. And now the roll forming machine line, which include uncoiling, leveling, roll forming, punching, and cutting, offers higher automation, helps saving manual cost and has become the preferred choice for many clients.

There are different punching styles based on the installation method:

Installation Method 1: A single brace is installed within the rack upright, requiring pre-punched holes at the height of the bracing for screw installation.

Installation Method 2: Two braces are installed within the rack upright, also requiring pre-punched holes at the bottom of the bracing for screw installation.

1. Q: What kinds of experience do you have in producing bracing roll forming machine?

A: We have exported pallet rack production line to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture Upright beam roll forming machine, Box beam roll forming machine, Step beam roll forming machine and Shelf panel roll forming machine etc. We are confident to solve your shelve problem.

2. Q: How many sizes can produce this machine?

A: We adopt cast iron structure or cantilever structure with automatic width-change and height-change system. For upright rack beam, our customer usually make 3-4 sizes in one machine. We would check your profile drawings to meet your needs. In this way, we will greatly reduce your cost and time.

3.Q: What is delivery time of your bracing roll forming machine?

A: 80 days to 100 days depends on your drawing.

4. Q: What is your machine speed?

A: Machine’s working speed depends on drawing specially punch drawing. Normally forming speed is around 20m/min. In addition, considering the complicated punch holes, we recommend that you use a separate punch line to increase production speed, and it’s more cost-effective

5. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory-self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

6. Q: What is your after-sales service system?

A: We don’t hesitate to give you a 2 years warranty period for whole lines, 5 years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
