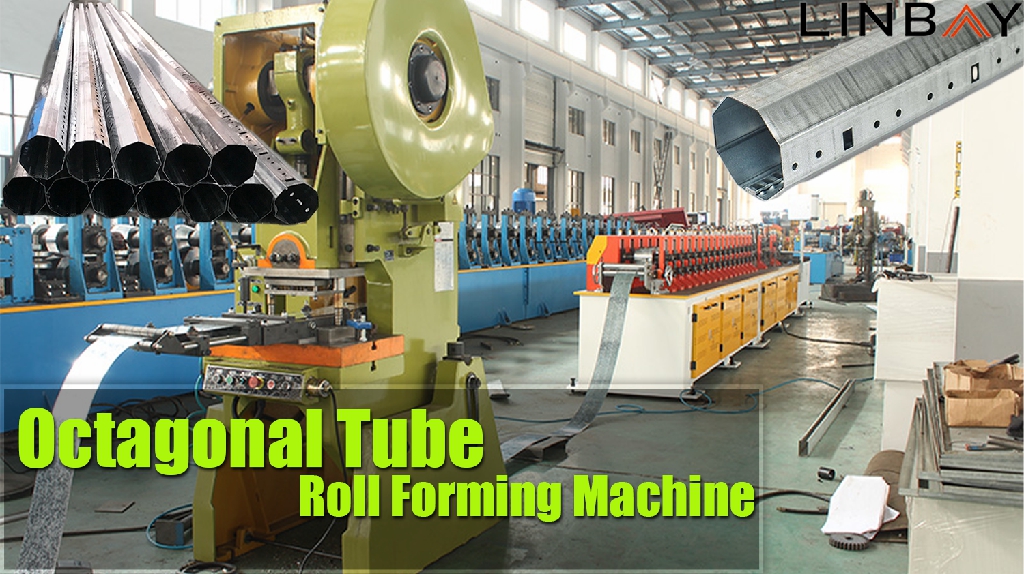

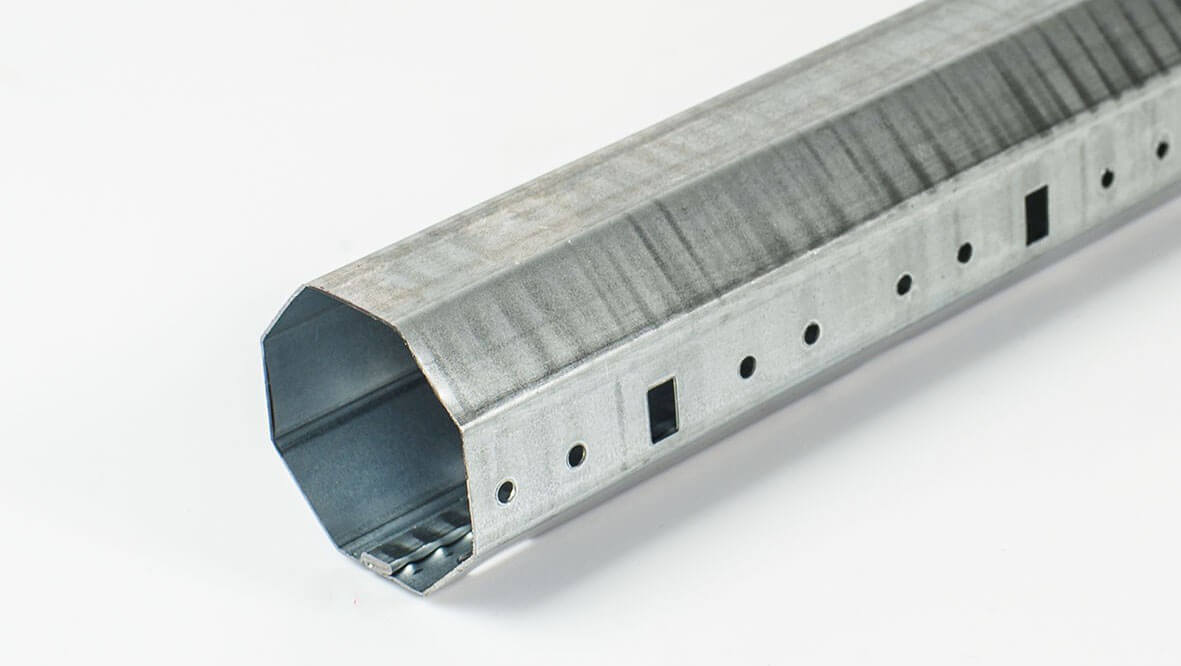

Octagonal tube is accesory of shutter slat door.
There are three types more used in market.
| Thickenss | Diameter | Feed width |
| 0.5-0.6mm | 40mm | 143mm |
| 0.6-0.8mm | 60mm | 210mm |
| 1-1.2mm | 70mm | 248mm |
Machine details:
Normally we recommend our customers that one roll forming machine produce one size of octagonal tube.
Flow chart:
3T Manual decoiler-Hydraulic punch-Roll forming machine-Saw cut-Out table
Application
Technical specification
|
Steel Strut& Rail roll forming machine |
|||
|
No. |
Item |
Specification |
Optional |
|
1 |
Suitable material |
Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
|
Thickness(mm):1.5-2.5 |
|||
|
Yield strength: 250 - 550MPa |
|||
|
Tensil stress( Mpa):G350Mpa-G550Mpa |
|||
|
2 |
Nominal forming speed(m/min) |
10-20 |
Or according to your requirement |
|
3 |
Forming station |
17 |
According to your profile |
|
4 |
Decoiler |
Manual decoiler |
Hydraulic decoiler or double head decoiler |
|
5 |
Main machine motor |
Sino-German Brand |
Siemens |
|
6 |
PLC brand |
Panasonic |
Siemens |
|
7 |
Inverter brand |
Yaskawa |
|
|
8 |
Driving system |
Gearbox drive |
Chain drive |
|
9 |
Rollers’ materail |
Steel #45 |
GCr15 |
|
10 |
Station structure |
Torri stand structure |
Forged Iron station |
|
11 |
Punching system |
No |
Hydraulic punching station or Punching press |
|
12 |
Cutting system |
Post-cutting |
Pre-cutting |
|
13 |
Power supply requirement |
380V 60Hz |
Or according to your requirement |
|
14 |
Machine color |
Industrial blue |
Or according to your requirement |
More Pictures
-
Others
-
scrap collector
-
pasting
-
mould change
-
guiding head
-
Cooling system
-
-
Out table
-
non-powered
-
auto stacker
-
-
Cutting
-
saw cutting
-
flying shear
-
-
Driving
-
chain drive
-
gearbox drive
-
gearbox drive with coupling
-
-
Stands
-
wall panel stands
-
torri stands
-
forged iron stands
-
wall panel for Cpurlin
-
-
Punching
-
hydraulic punching station
-
punching press
-
roller punching
-
-
Feeding
-
leveling
-
servo feeding
-
-
Decoiler
-
manual decoiler
-
hydraulic decoiler
-
double head decoiler
-
