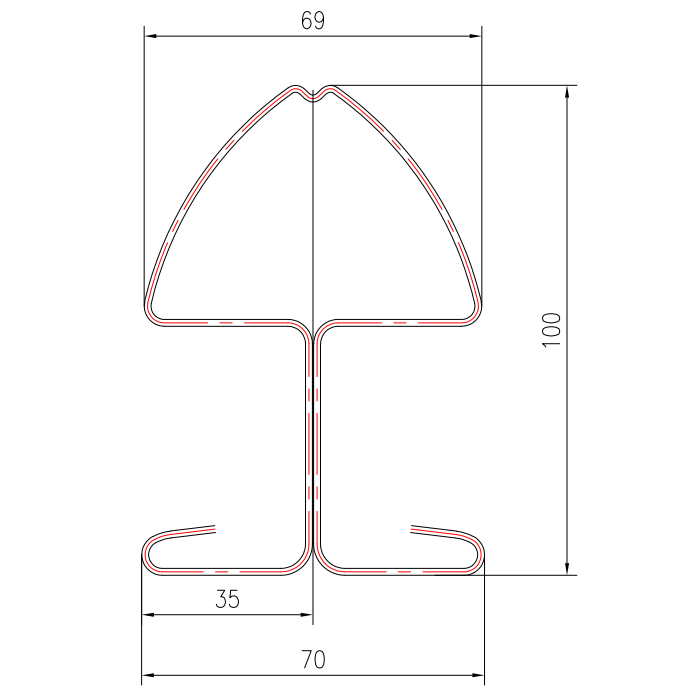

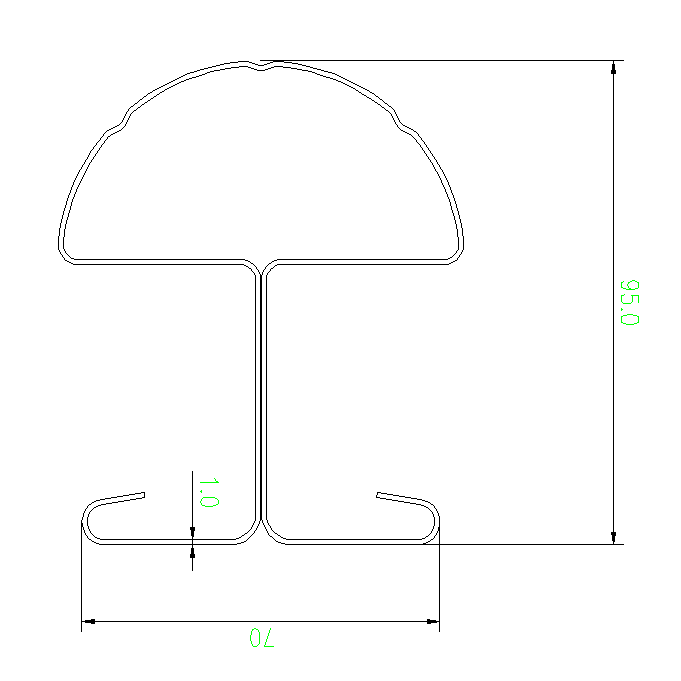

Wire mesh fence posts typically employ the peach-type profile, with a thickness of 1-1.2mm, crafted from black steel, carbon steel, as well as galvanized steel. Wire mesh can simply be clipped onto the spine of the post using clips.

Wire Mesh Fence Post

Introduction:

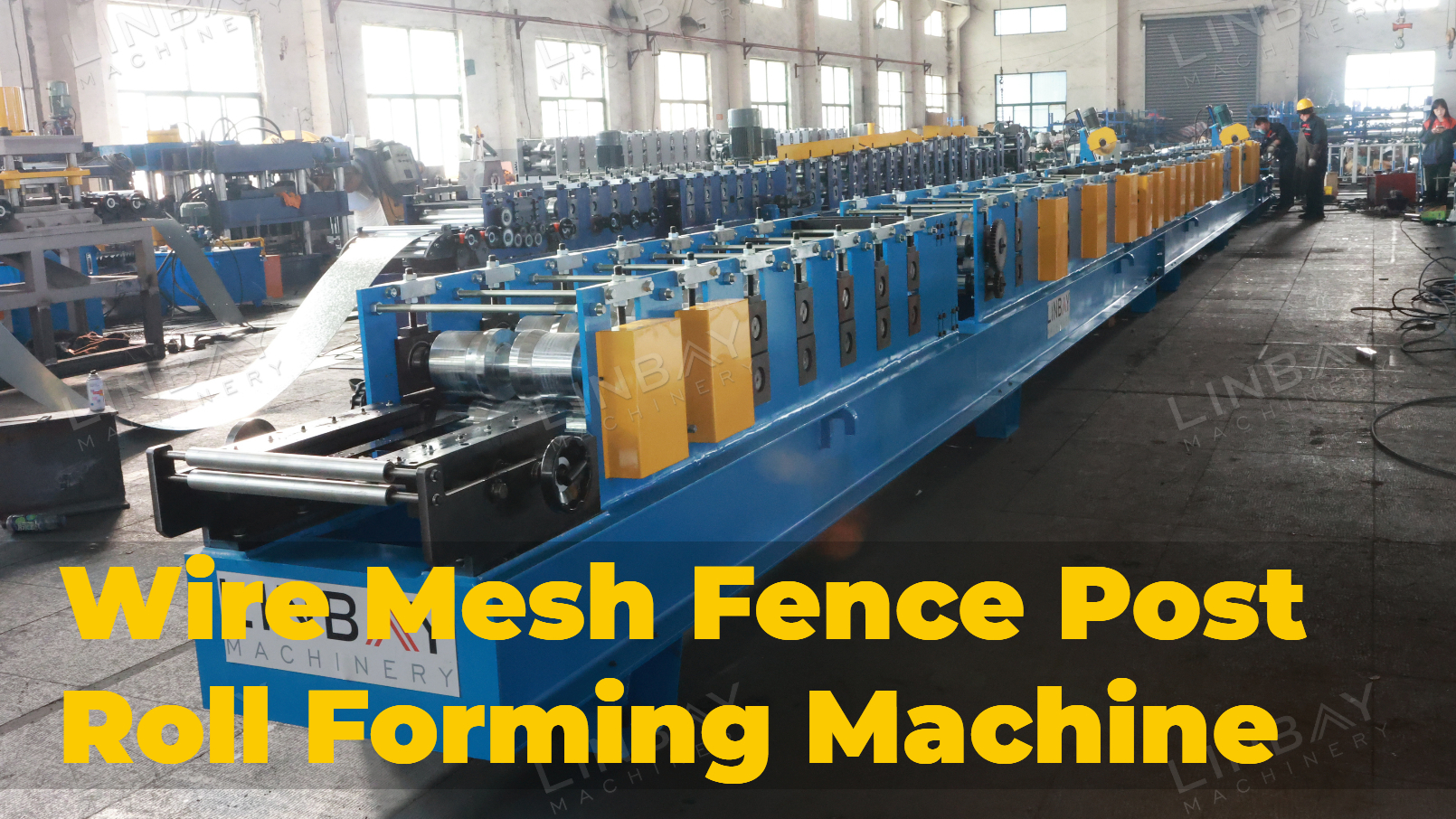

This wire mesh fence post roll forming machine has a basic configuration: manual decoiler-hydraulic chamfer-roll former-hydraulic punch-hydraulic post cut-out table. At the feeding part of the roll forming machine, we make a chamfer device, this is easy for post cutting. The punch system equipped on the roll former, it can reduce the machine’s cost it’s an economic choice, but the working speed will be low, around 4m/min. Customer can choose Case B’s machine configuration if you want a fast speed roll forming machine.

Introduction:

This wire mesh fence post roll forming machine has a high speed and precision configuration: manual decoiler- leveler-servo feeder-punch press- roll former-flying saw cut-out table. The servo feeder system uses Yaskawa servo motor to control the feeding length for the punch press, then you will have a high-precision at the holes punch part. The 80Tons press can offer a fast punch speed compared hydraulic punch system, it can double the production, up to 8m/min. Normally we suggest our customer buy Yangli brand press JH21-80. The roll former part we use 26 forming stations to ensure the profile prefect and 2 riveting rollers to make profile together. With this fast speed, we put a flying saw cut device, which will not stop the roll former when cutting. The saw cut has a smaller burr and wastage(around 3mm). This is the best roll forming machine solution we suggest for wire mesh fence post.

Linbay make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

1. Q: What kinds of experience do you have in producing wire mesh fence post roll forming machine?

A: We have exported wire mesh fence post production line to Algeria, Russia and Indonesia. The metal fence post has a Z shape profile, which is very common profile drawing, and we have exported thousands of Z profile roll forming machines.

2. Q: What is delivery time of wire mesh fence post roll forming machine?

A: 60 days normally.

3. Q: What is your machine speed?

A: Machine’s working speed depends on drawing specially punch drawing. Now we have made two different machines, which is faster with punch press, its speed is 8m/min, and the other more economic one has speed around 4m/min.

4. Q: How could you control your machine’s precision and quality?

A: Our secret to producing such precision is that our factory has its own production line, from punching moulds to forming rollers, each mechanical part is completed independently by our factory self. We strictly control the accuracy at each step from design, processing, assembling to quality control, we refuse to cut corners.

5. Q: What is your after-sales service system?

A: We don’t hesitate to give you a two-years warranty period for whole lines, five years for motor: If there will be any quality problems caused by non-human factors, we will handle it immediately for you and we will be ready for you 7X24H. One purchase, lifetime care for you.
