Light Gauge steel roll forming machine is the most popular machine and its product includes stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, clip, etc, our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.4-0.6mm or up to 1.2mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. The finished products meet IBC 2003, 2006 & 2009, AISI NASPEC (S100), ICC-ES AC86 (2010) etc. Simply the best light gauge steel roll forming machine for your project.

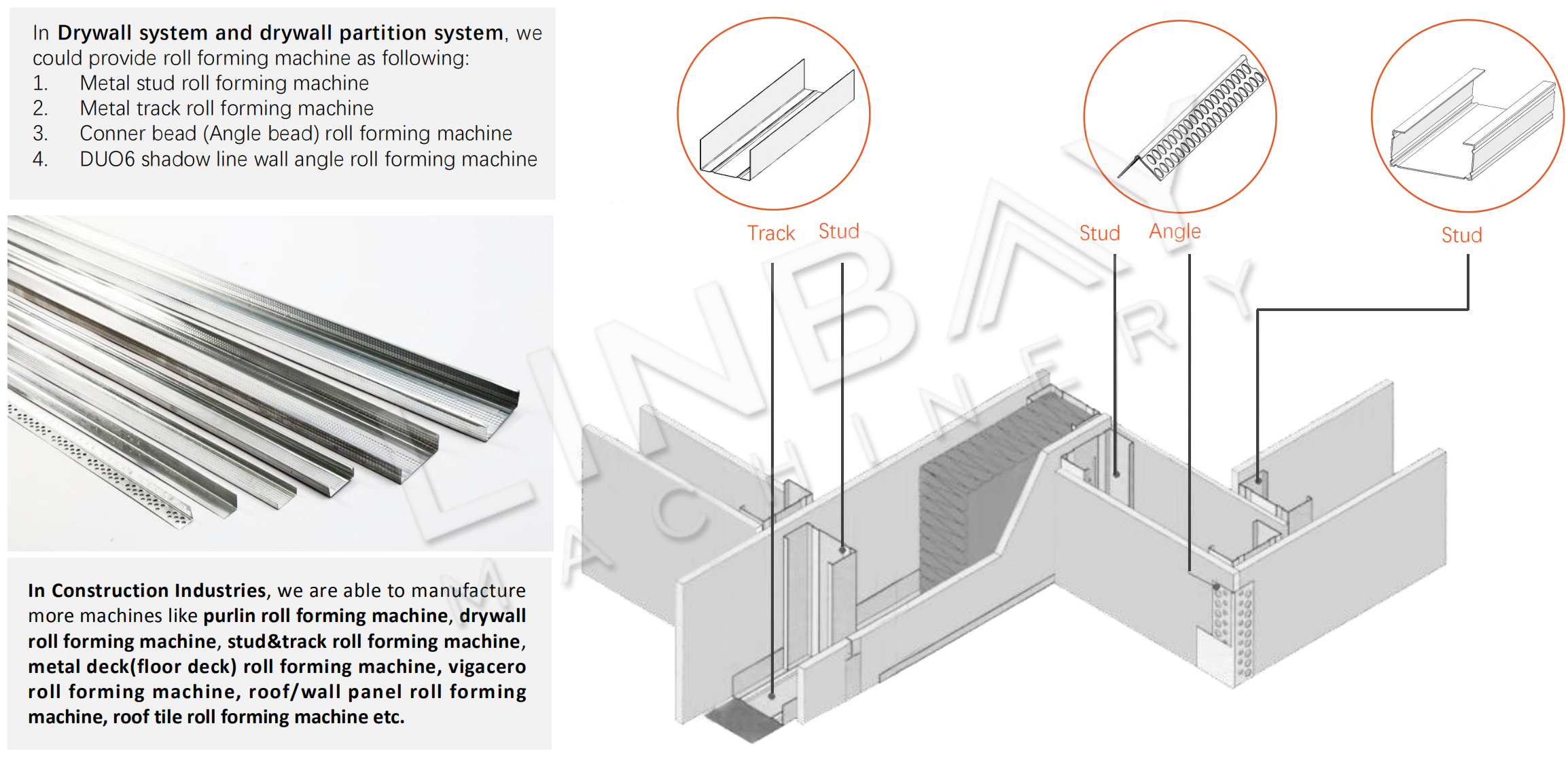

In Drywall system and drywall partition system, we could provide roll forming machine as following:
1. Metal stud roll forming machine
2. Metal track roll forming machine
3. Conner bead (Angle bead) roll forming machine
4. DUO6 shadow line wall angle

In Construction Industries, we are able to manufacture more machines like purlin roll forming machine, drywall roll forming machine, stud&track roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine etc.

We could make roll forming machine with flying cut system to make working speed faster around 40m/min. And according to your drawing, we offer you double-row roll forming machine or triple-row roll forming machine that you could make two or three profiles in one machine, it reduces your machine cost and make it more affordable.

Linbay make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.

PLC control cabinet:

• With independent intellectual property rights and leading technology in the industry,

• HuazhongCAD LGS maker numerical control system is equipped with professional industrial-grade computer to ensure the stable performance of the software system in any working environment.

• Foxconn brand Super 17 inches professional industrial-grade computer, can choose to operate by keyboard, mouse or touch screen, and can switch between manual and automatic. Extract output data from the software and realize gapless link between design and production without human intervention.
