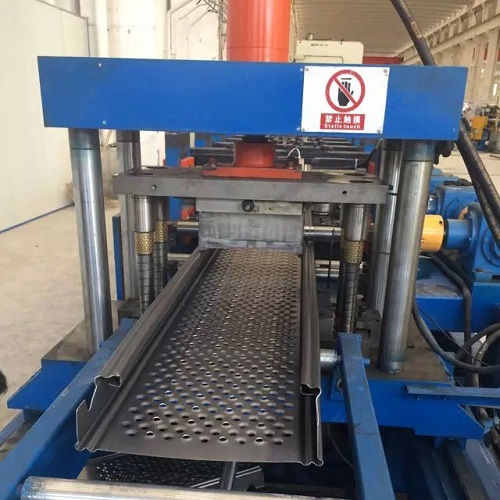

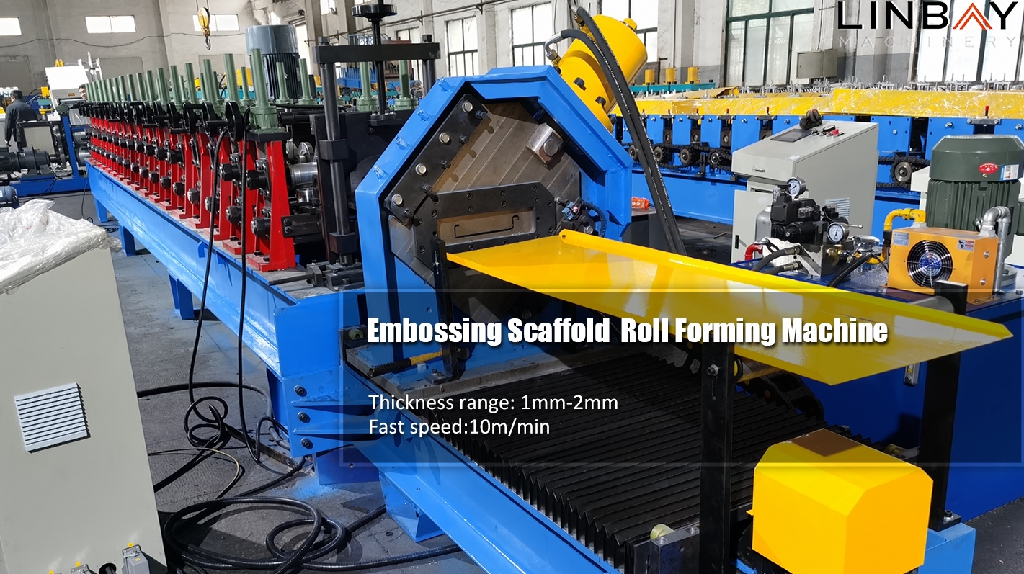

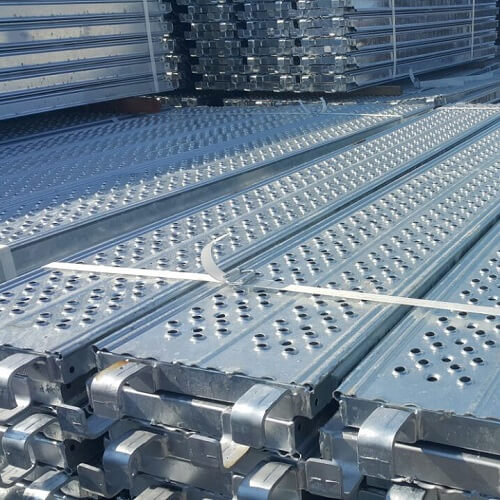

Scaffold plank roll forming machine can make scaffold plank. We adopt servo feeder to make sure the holes are in high precision. We use punching press to make line speed faster and we use hydraulic post cutting to make sure the profile perfect.

The thickness of raw material is around 1-2mm.

Application

Technical Specification

Scaffold plank Roll Forming Machine
No.	Item	Specification	Optional
1	Suitable material	Type:Galvanized Coil, PPGI, Carbon steel Coil
		Thickness(mm):1-2
		Yield strength: 250 - 550MPa
		Tensil stress( Mpa):G350Mpa-G550Mpa
2	Nominal forming speed(m/min)	10-25	Or according to your requirement
3	Forming station	20
4	Decoiler	Manual decoiler	Hydraulic decoiler or double head decoiler
5	Main machine motor	Sino-German Brand	Siemens
6	PLC brand	Panasonic	Siemens
7	Inverter brand	Yaskawa
8	Driving system	Chain drive	Gearbox drive
9	Rollers’ materail	Steel #45	GCr15
10	Station structure	Torri stand structure	Forged Iron station Or Wall panel station
11	Punching system	No	Hydraulic punching station or Punching press
12	Cutting system	Post-cutting	Pre-cutting
13	Power supply requirement	380V 60Hz	Or according to your requirement
14	Machine color	Industrial blue	Or according to your requirement

Flow Chart

Manual decoiler--feeding--hydraulic punching station--forming machine--hydraulic cutting--out table

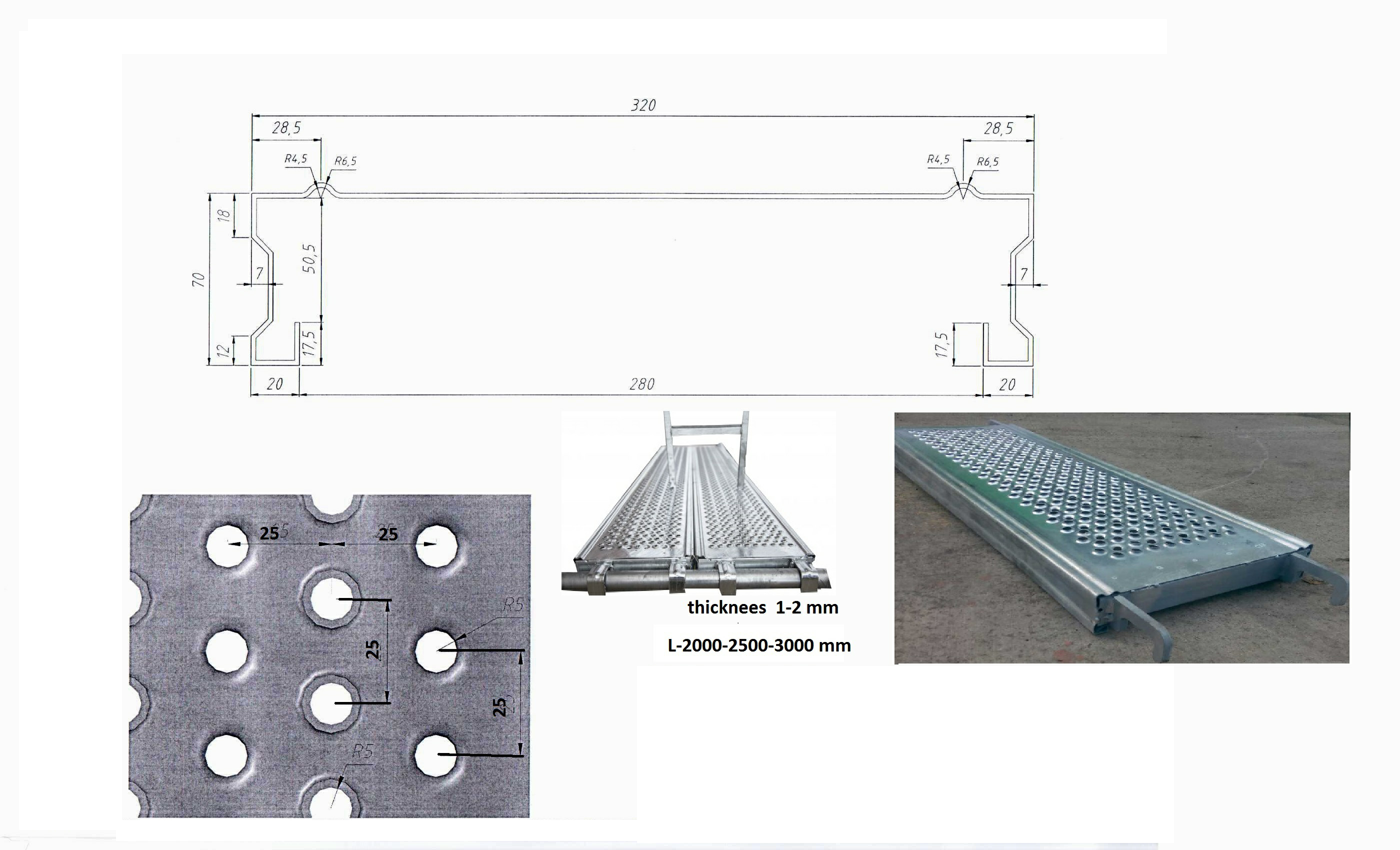

Profile drawings

Optional configuration

Others
- scrap collector

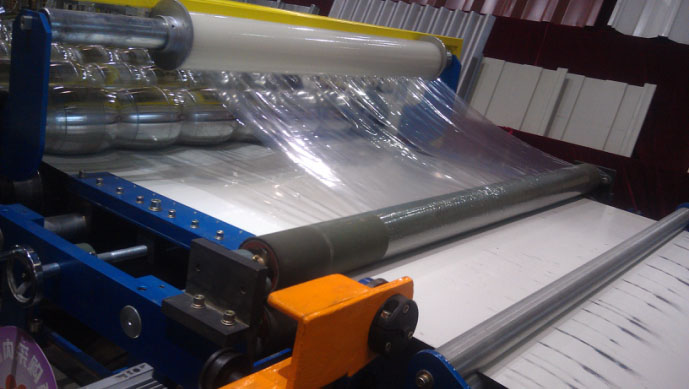

- pasting

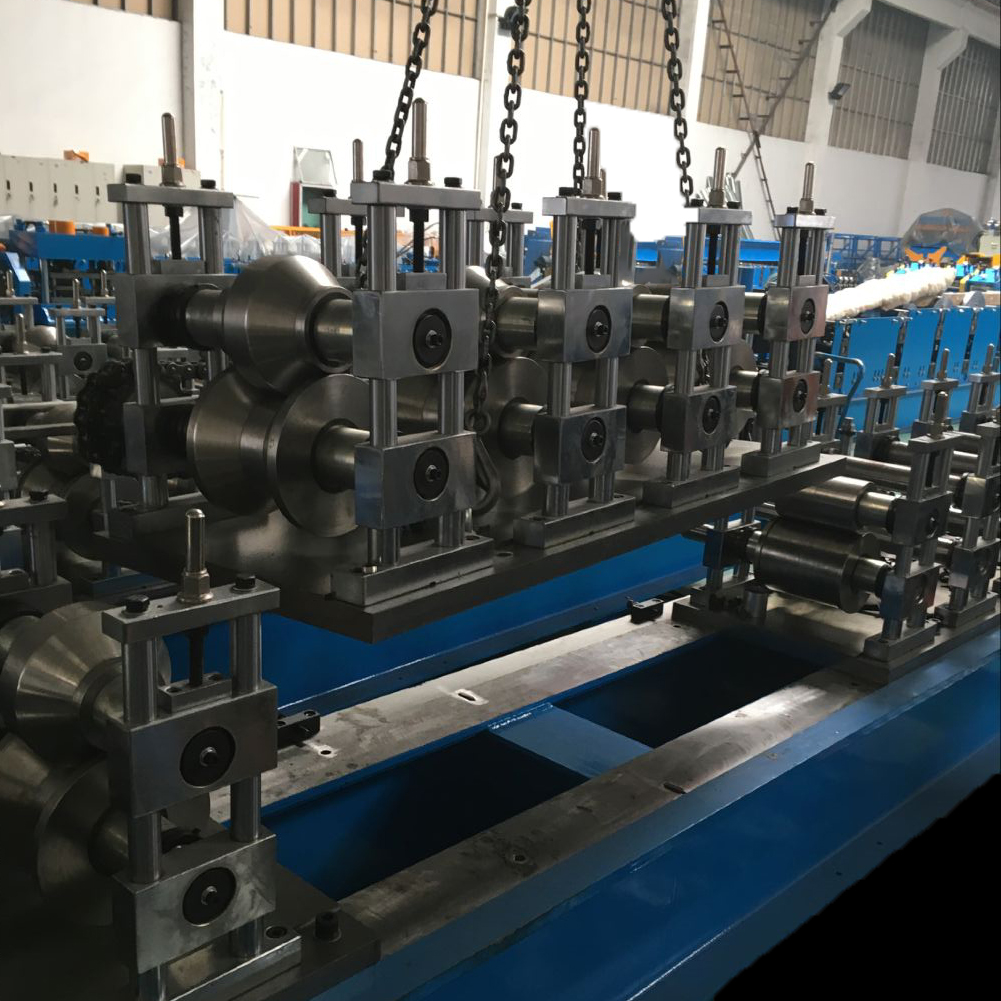

- mould change
- guiding head
- cooling system

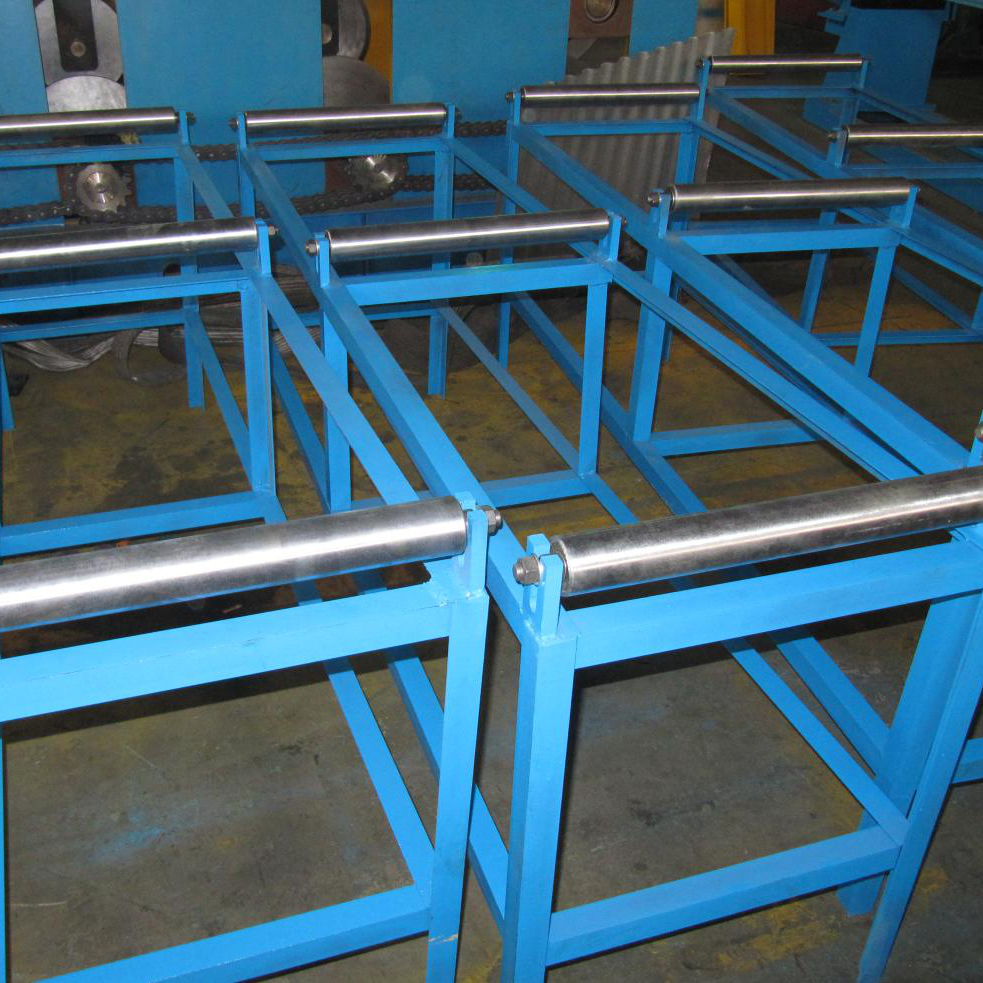

Out table
- non-powered

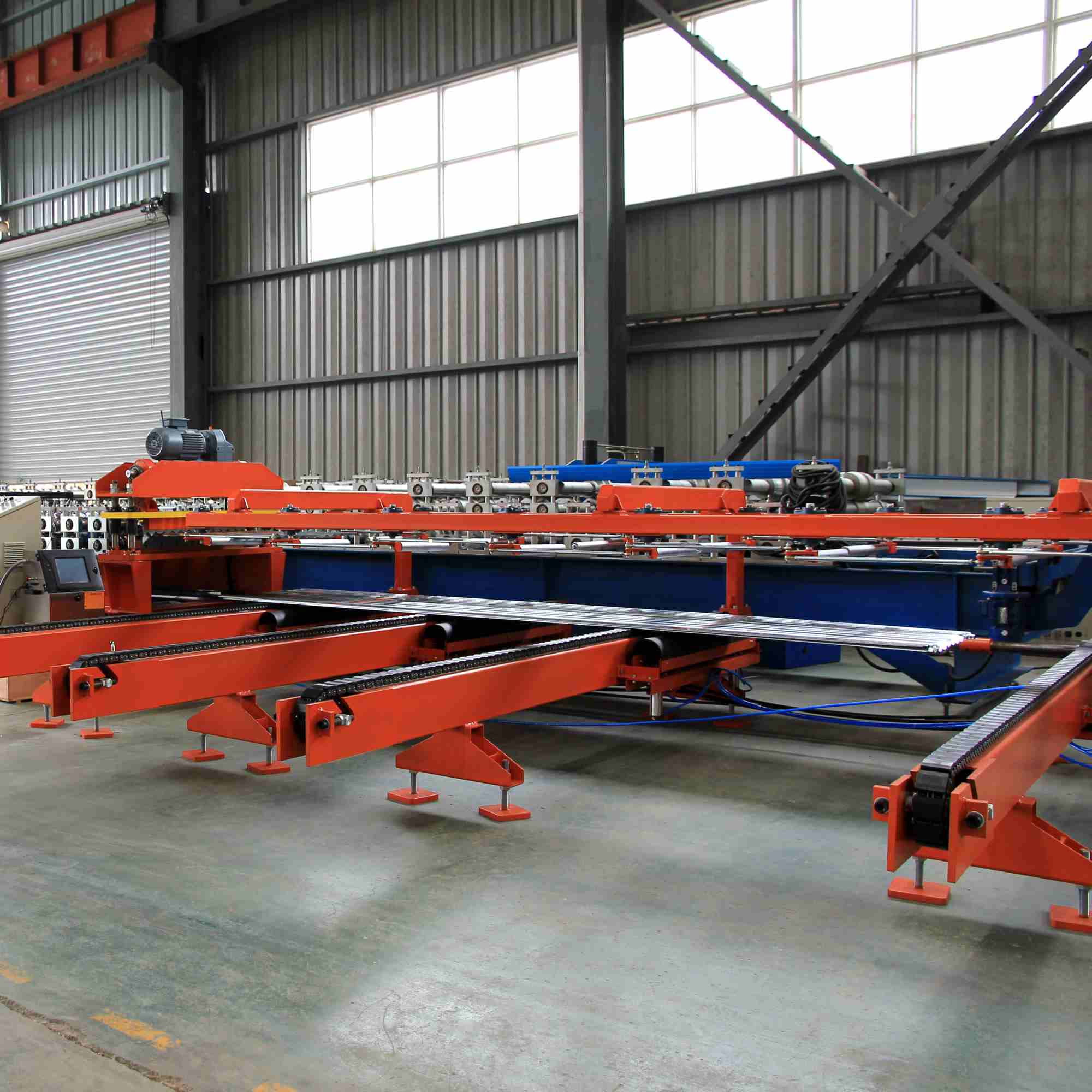

- auto stacker

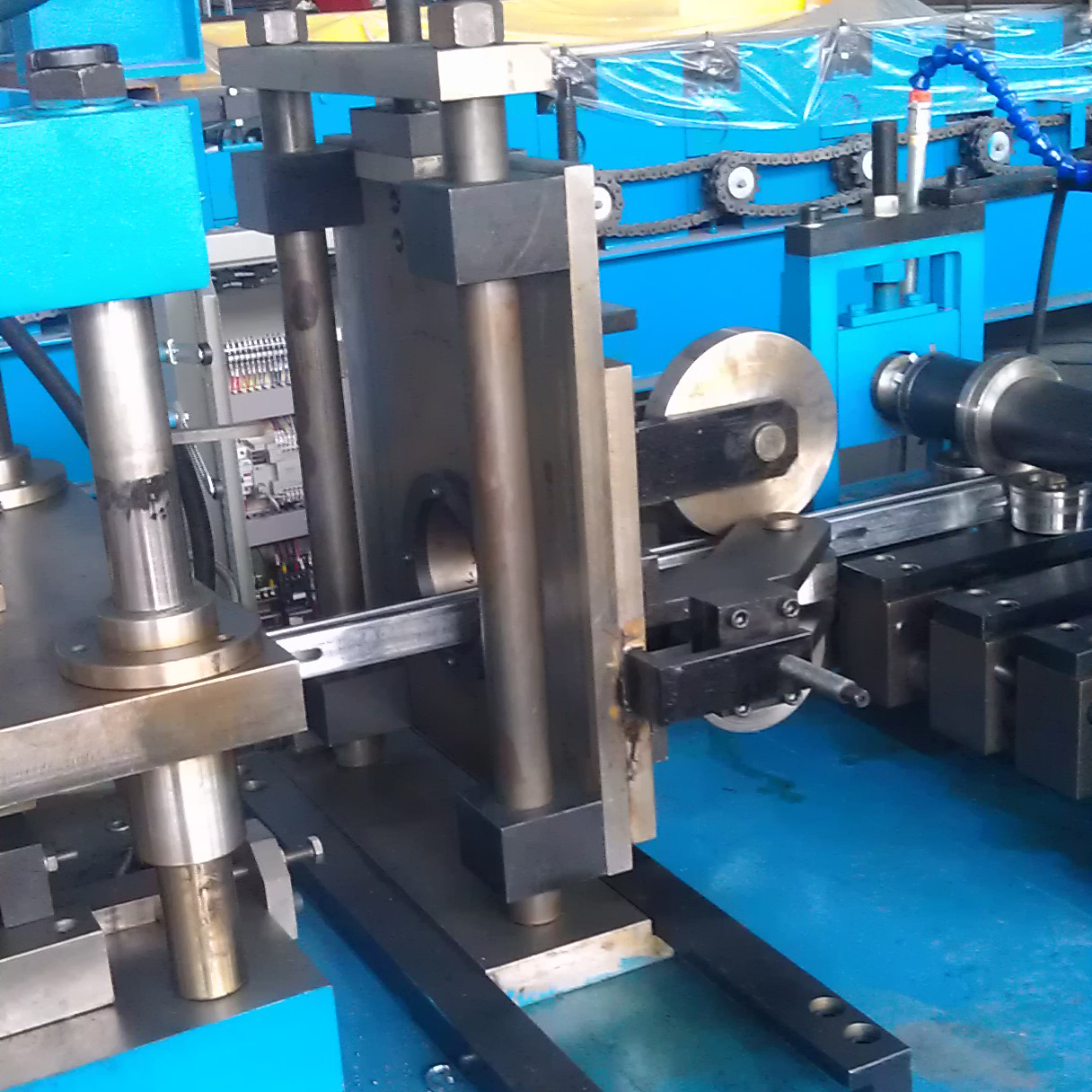

Cutting

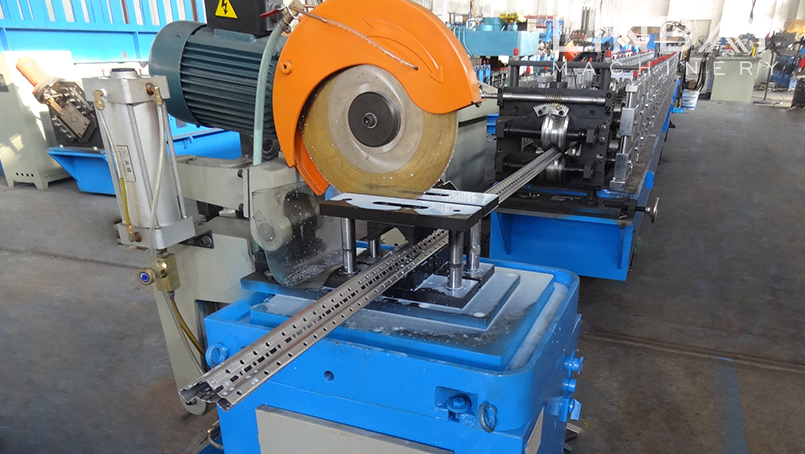

- fixed saw cutting
- flying shear
- universe cutting
Driving

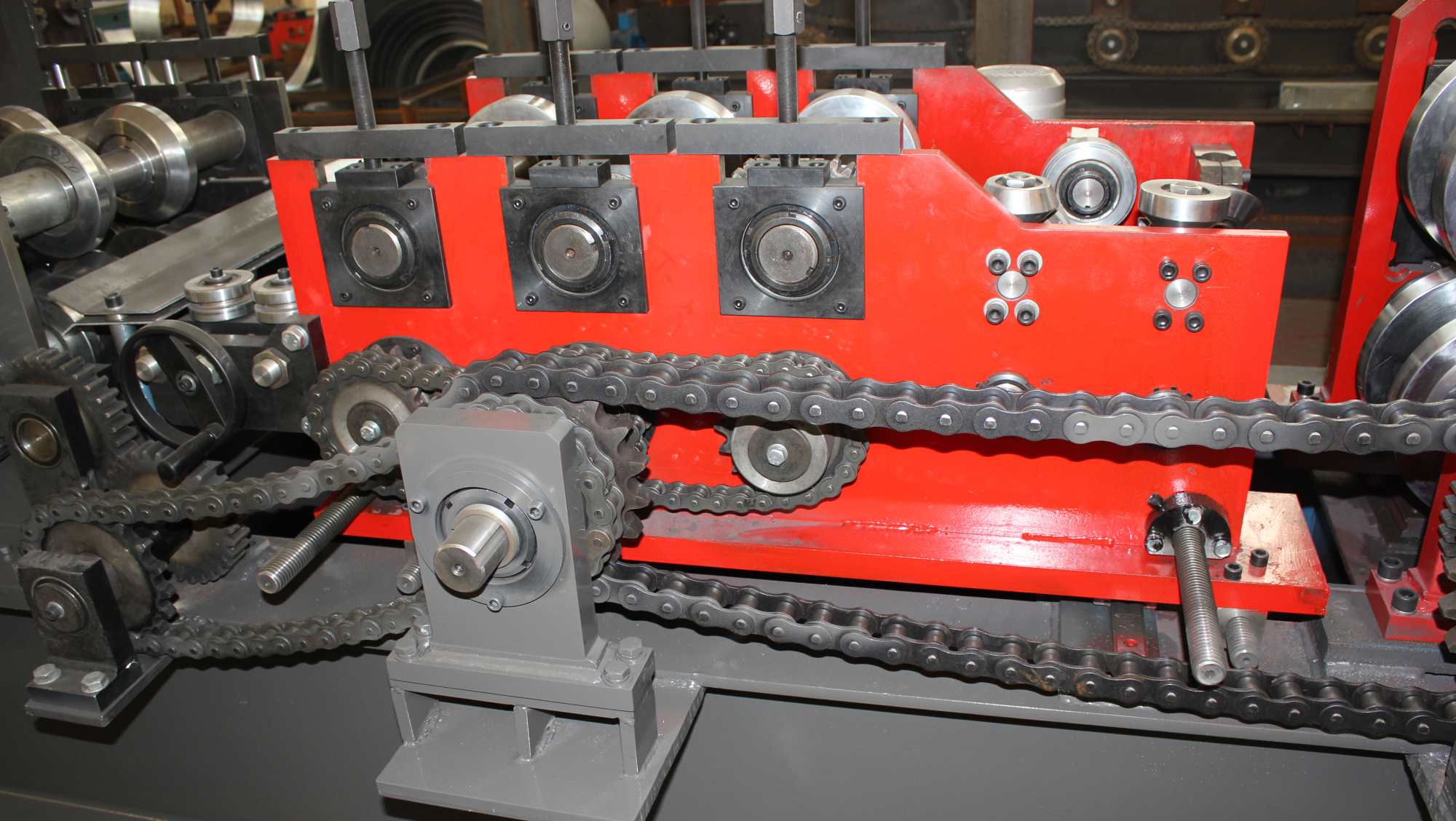

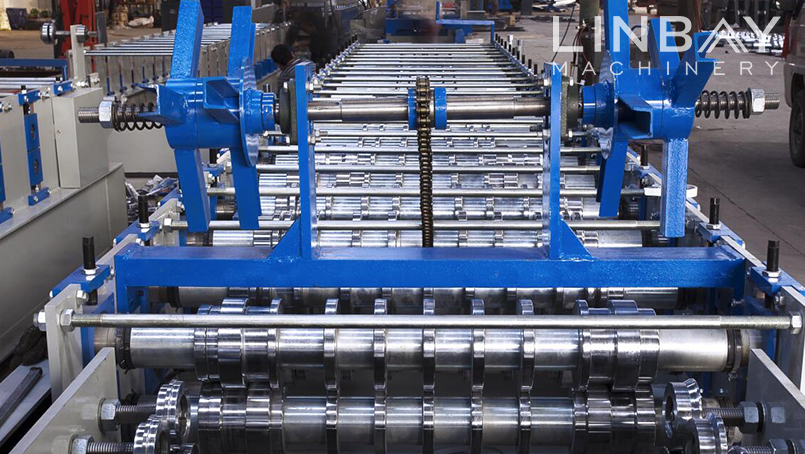

- chain drive

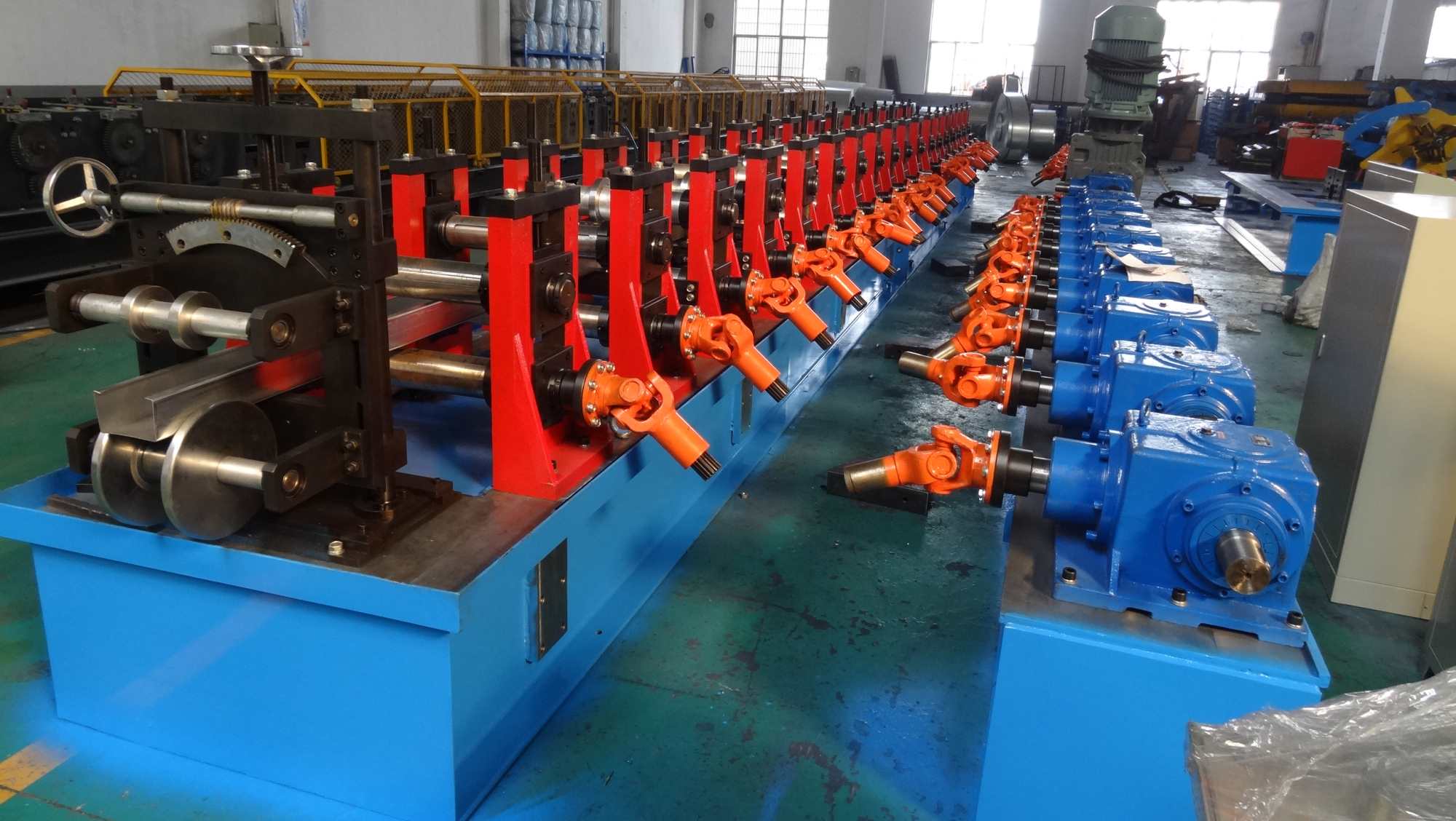

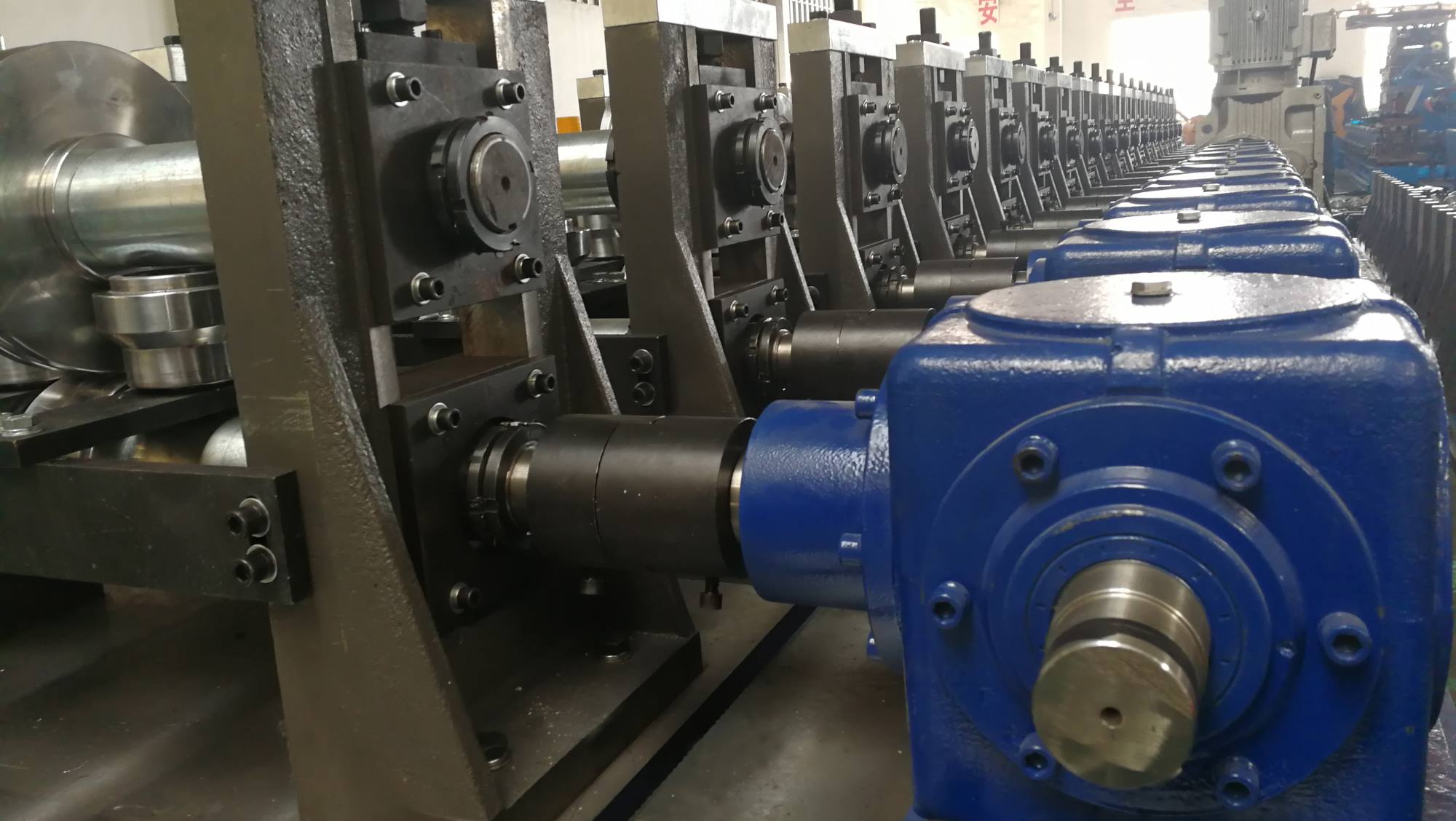

- gearbox drive
- gearbox drive with coupling

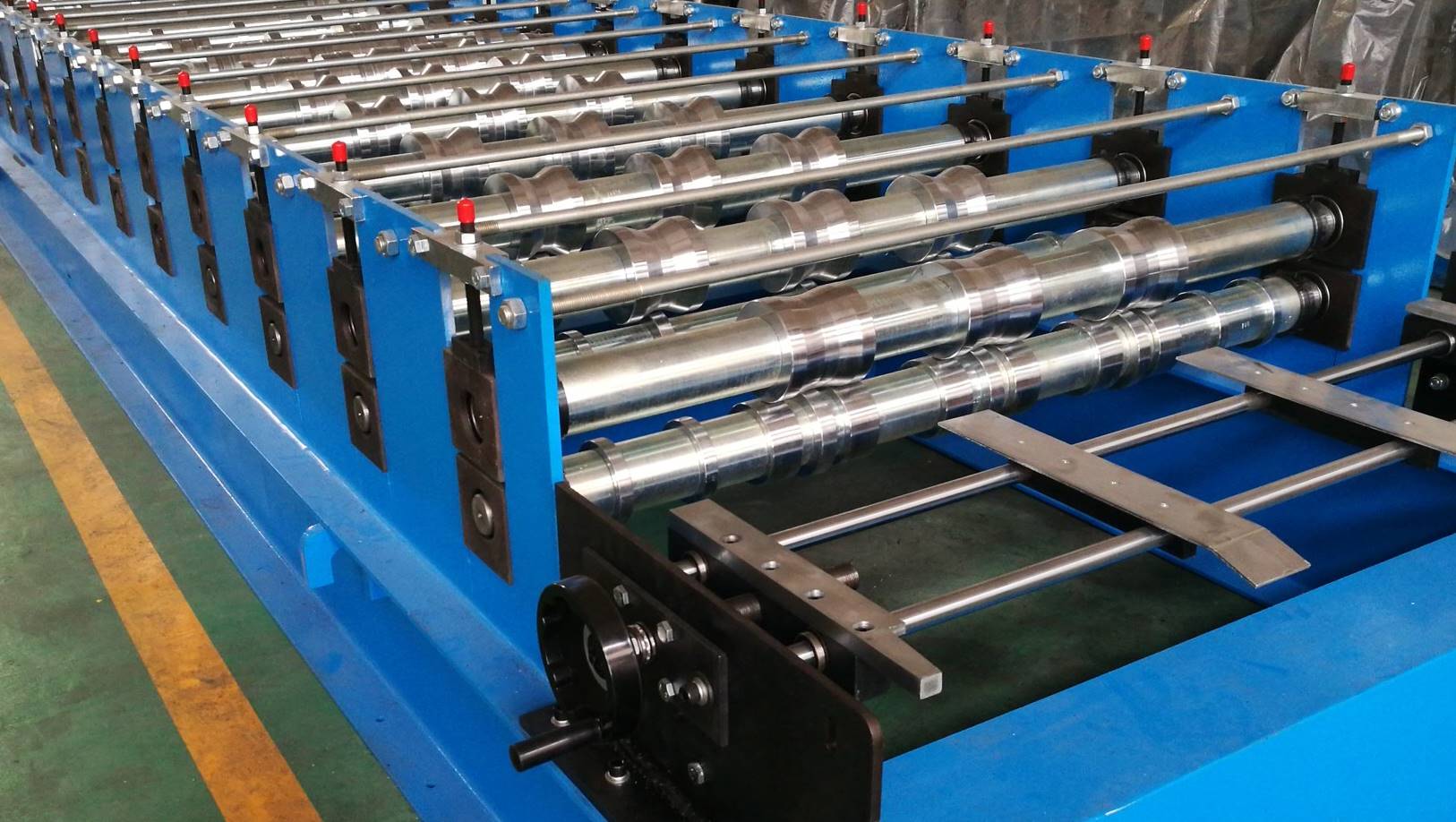

Stands
- wall panel

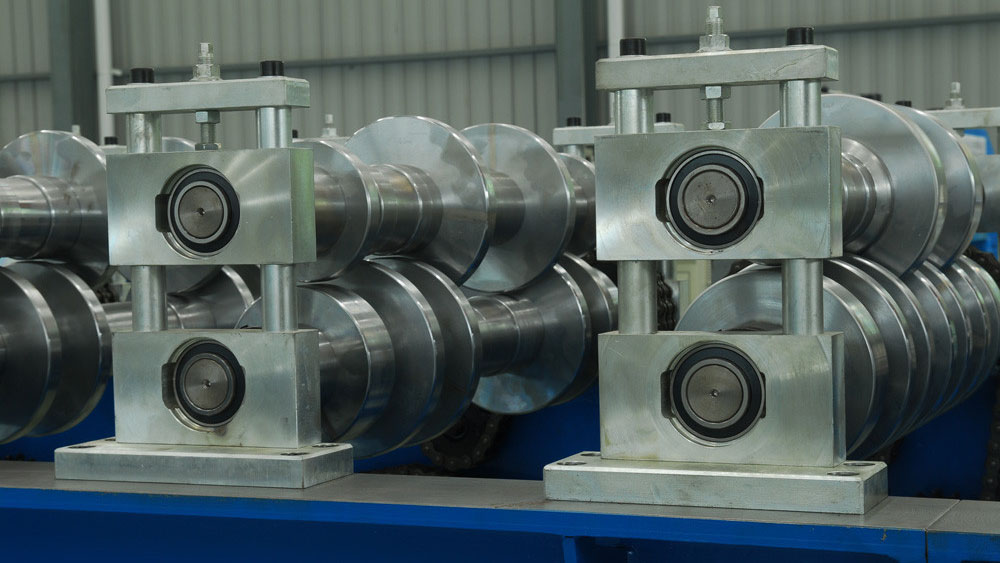

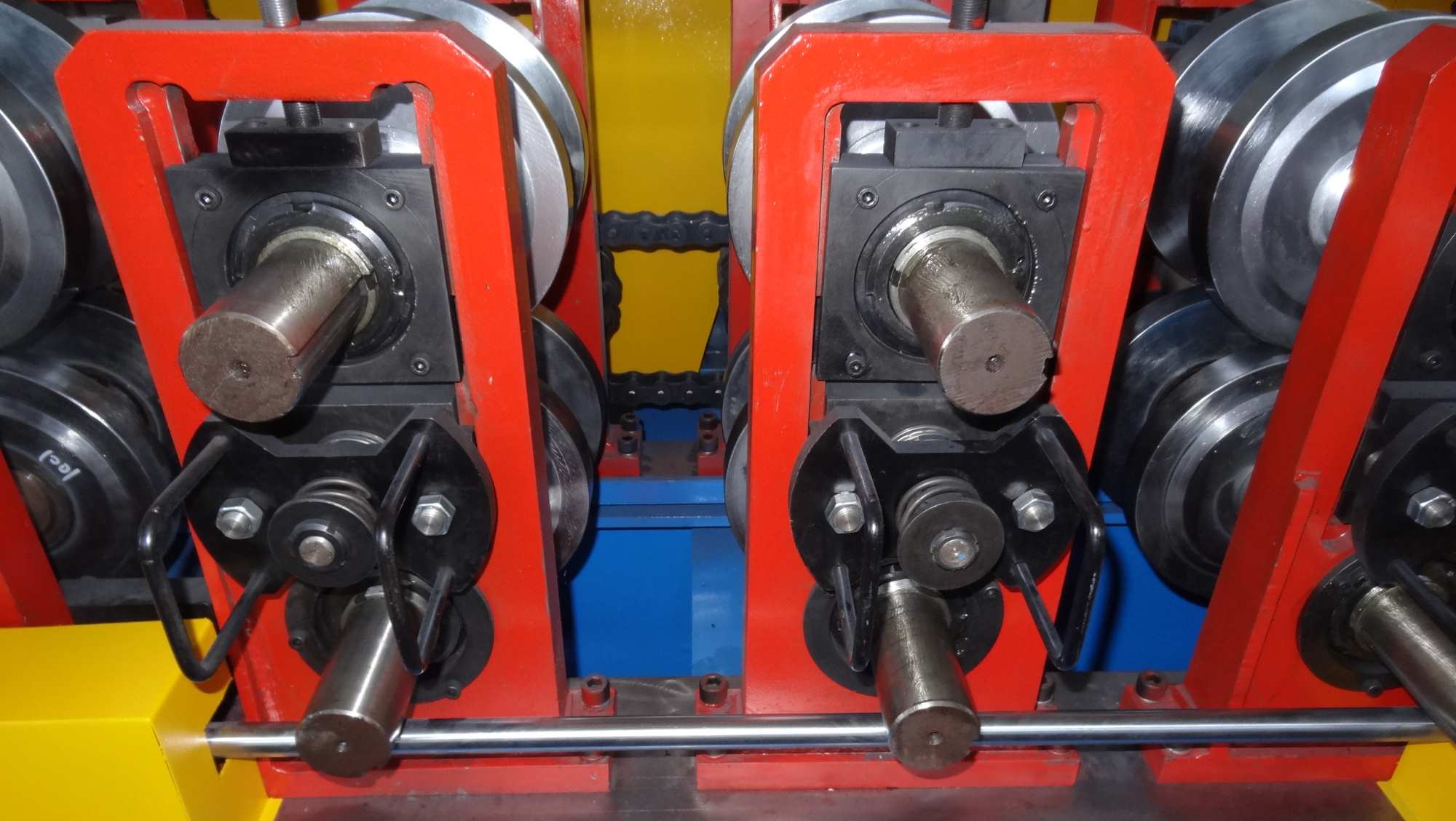

- torri stands
- forged iron stands

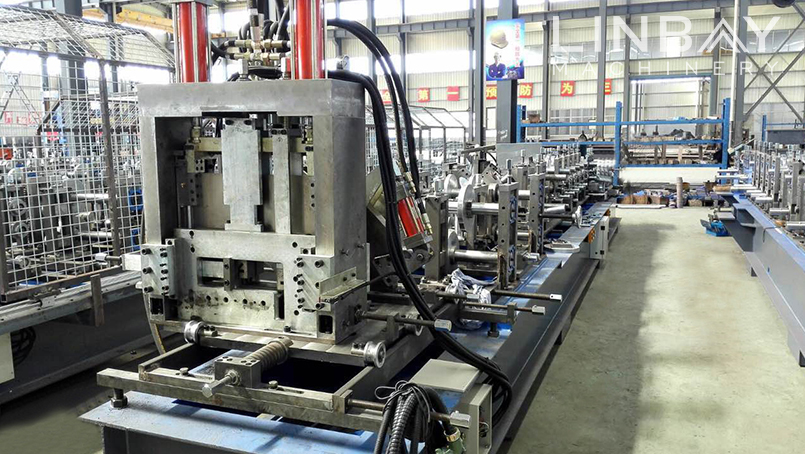

- wall panel for C purlin
Punching

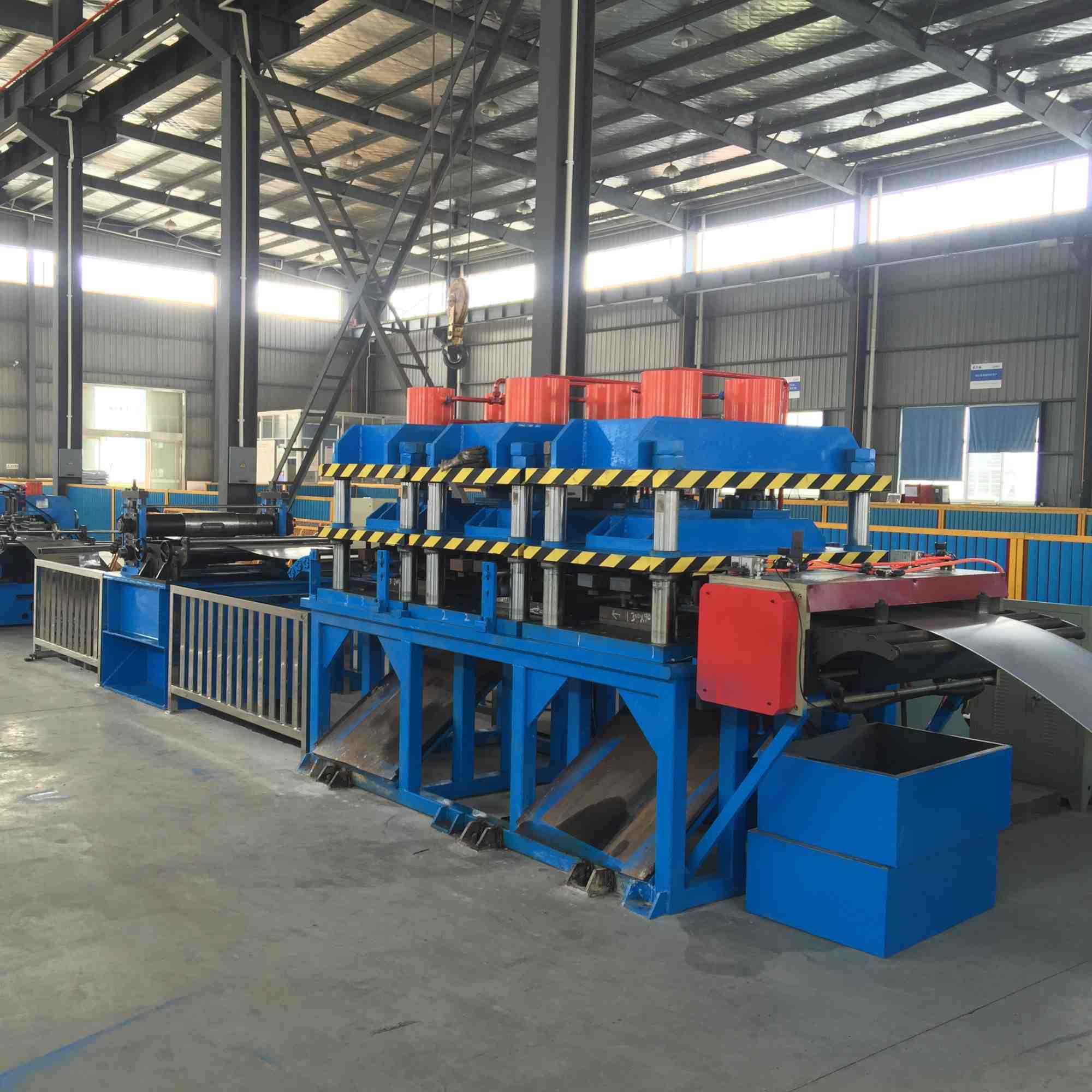

- hydraulic punching station

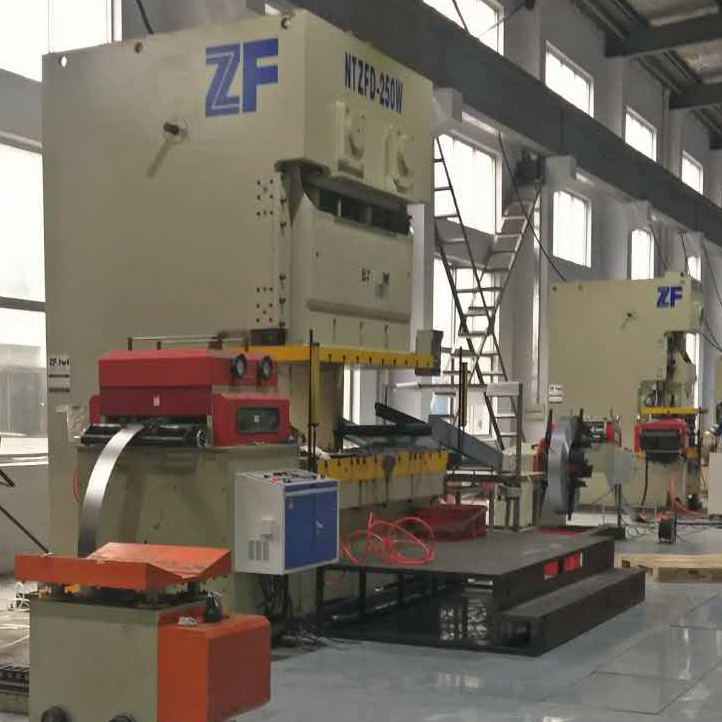

- punching press

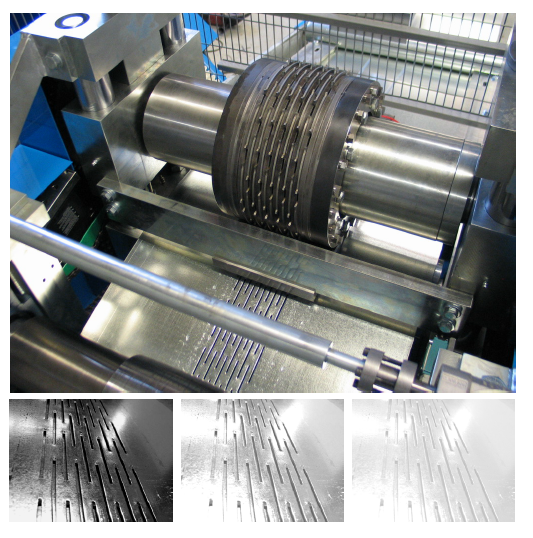

- roller punching
Feeding

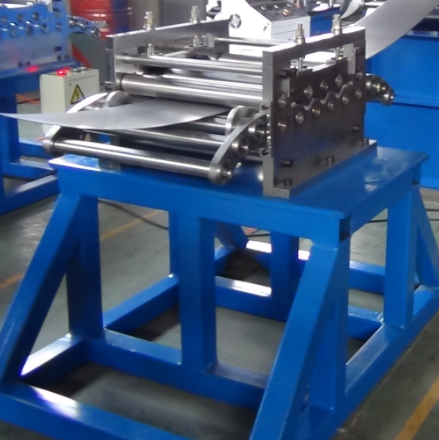

- leveling

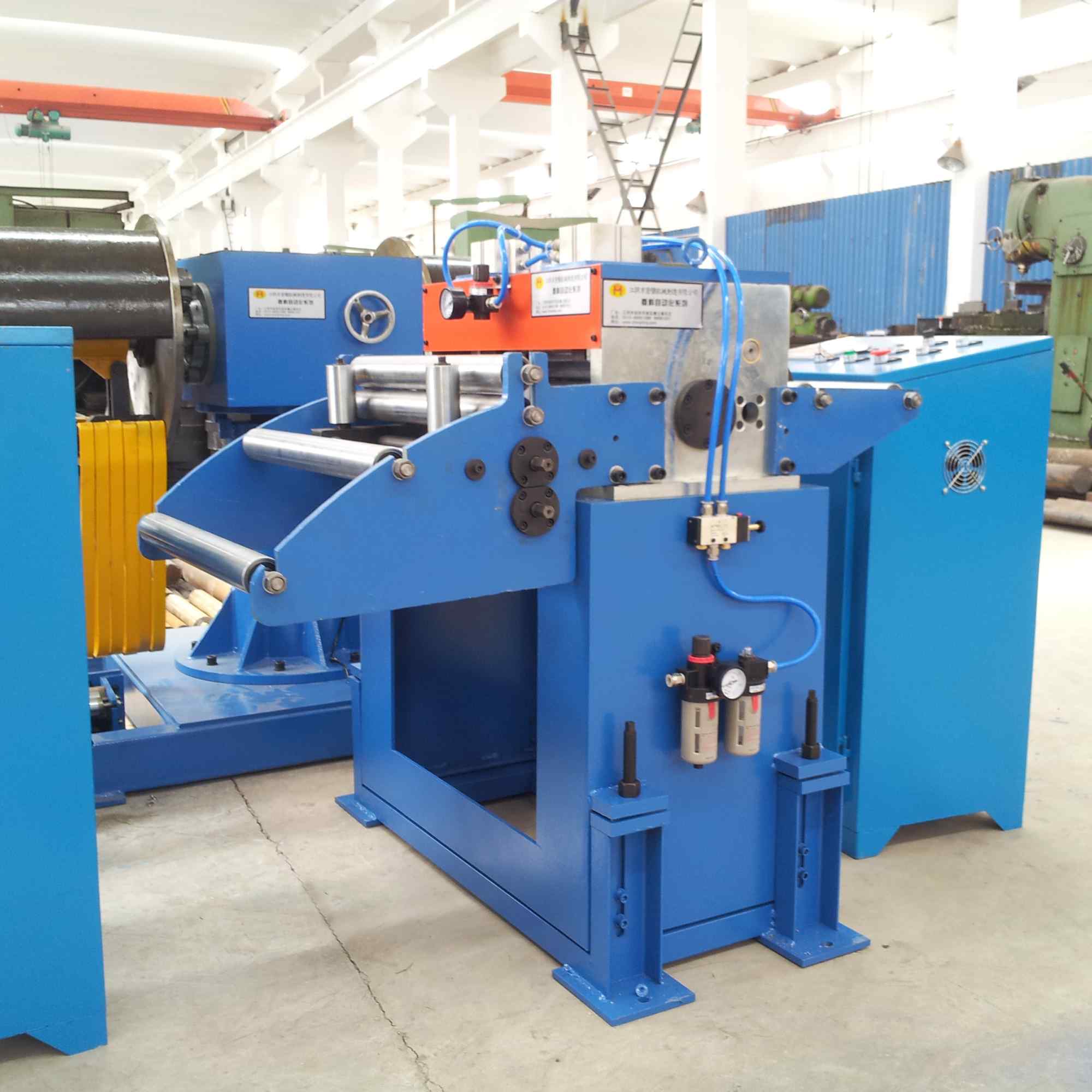

- servo feeding
Decoiler

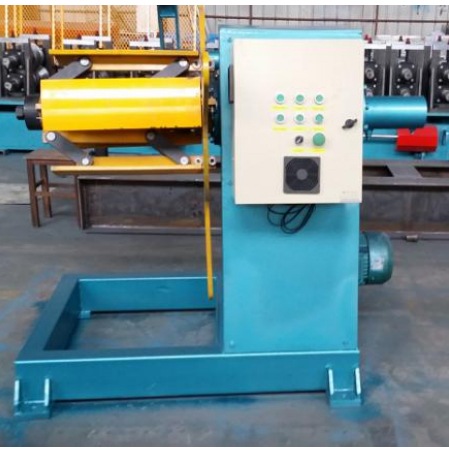

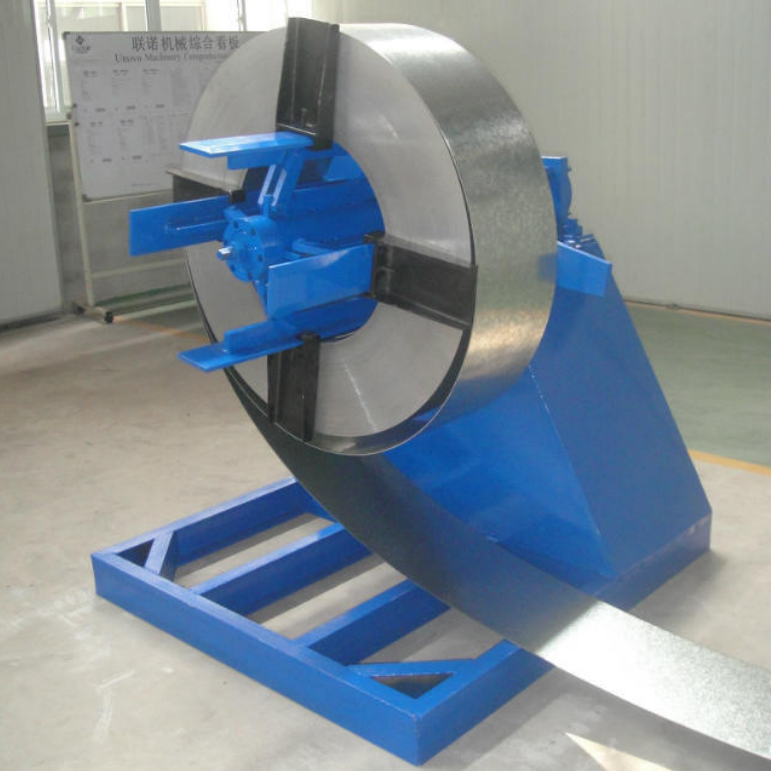

- manual decoiler
- hydraulic decoiler

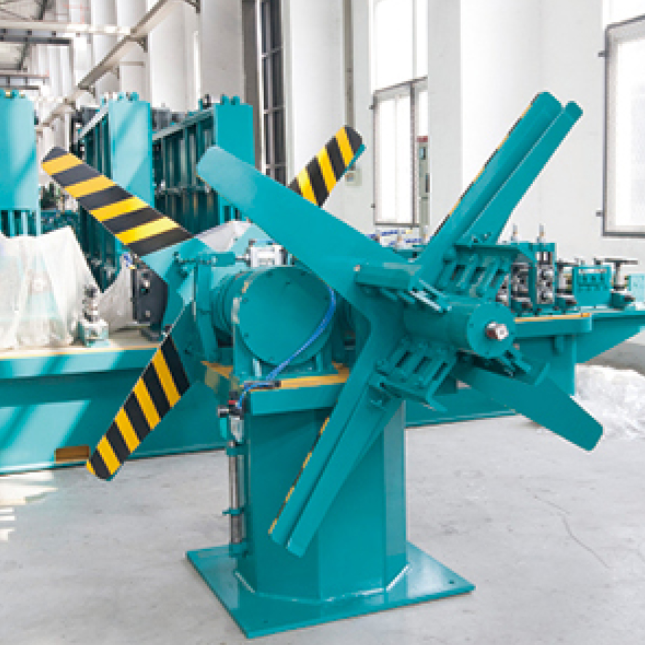

- double head decoiler
