TR80+ High-Strength Metal Deck Roll Forming Machine
.jpeg)
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Details
Description
At LINBAY MACHINERY, we take immense pride in our latest achievement - the successful shipment of our TR80+ Metal Deck Roll Forming Machine to Iraq on January 28th, 2021. The TR80+ floor deck profile has earned widespread popularity for its close adherence to the British profile drawing. Designed to accommodate various construction needs, the nominal thickness options of 0.9mm, 1mm, and 1.2mm, along with the usage of high-quality S350 or S450 steel material, make it an ideal choice for builders seeking durability and reliability. Our raw forming machine creates this unique metal deck, equipped with 33 forming stations and spanning approximately 25 meters in length.
Profile
Real case
Description
Introducing our state-of-the-art TR80 Floor Deck Roll Forming Machine, a cutting-edge addition to our product lineup. Successfully delivered to prestigious clients, this exceptional machine is designed to produce TR80 floor deck profiles with utmost precision and efficiency.
TR80+ metal deck roll forming machine

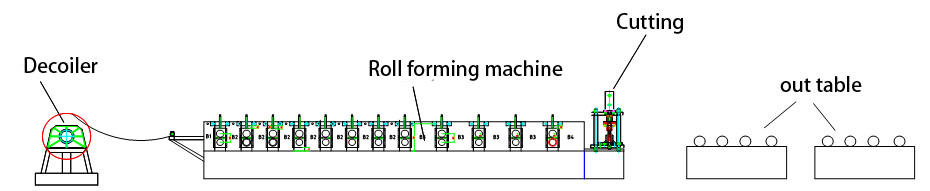

Whole Production Line of Metal Deck Roll Forming Machine
Decoiler--Hydraulic cut--Rollers--Roller former 1--Roll former 2--Out Table
Technical Specifications
| Floor Deck TR80+ Roll Forming Machine | ||
| Machinable Material : | A) Galvanized Coil | Thickness(MM):0.9, 1.0, 1.2 |
| B) S350 | ||
| C) S450 | ||
| Yield strength : | 350 - 450 Mpa | |
| Tensil stress : | 350 Mpa-550 Mpa | |
| Nominal forming speed(M/MIN): | 0-20 | * Or according to your requirement (Optional) |
| Forming station : | 34 stands | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system | No | * Hydraulic punching or Punching press (Optional) |
| Main machine motor brand : | Sino-Germany Brand | * Siemens (Optional) |
| Driving system : | Chain drive | * Gearbox drive (Optional) |
| Machine structure: | Wall panel station | * Forged Iron station or torri stand structure (Optional) |
| Rollers’ material : | GCr15 | |
| Cutting system : | Post-cutting | * Pre-cutting (optional) |
| Frequency changer brand : | Yaskawa | * Siemens (optional) |
| PLC brand : | Panasonic | * Siemens (optional) |
| Power supply : | 380V 50Hz | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
Purchase Service
Profile drawings
Optional configuration
-
Out table
-
Non-powered
-
Auto-stacker
-
-
Cutting
-
Saw cutting
-
fast flyting cutting
-
-
Driving
-
chain driving system
-
gearbox driving system
-
Gearbox with couplings
-
-
Stands
-
Torri Stands
-
Forged Iron Stands
-
Wall Panel
-
ruler
-
-
Punching
-
Hydraulic punching station
-
Fast Roller Punching system
-
Punching press
-
-
Feeding
-
Servo feeder
-
Leveler
-
-
Decoiler
-
Motorized&Hydraulic decoiler
-
Double head motorized decoiler
-
Manual Decoiler
-
