On 28th of January, 2021, LINBAY MACHINERY shipped our TR80+ metal deck roll forming machine to Iraq. Floor deck profile TR80+ is a popular British profile drawing, nominal thickness is 0.9mm, 1mm and 1.2mm. Normally the customer uses S350 or S450 steel material. The depth of profile is 80/92mm. This 80mm deep trapezoidal profile offers long un-propped spans reducing the number of structural support members required, making it a popular choice for low to medium storey buildings. Besides, our customer requires 4mm height embossment. It is a difficult profile drawing to make roll forming machine. We adopt 34 forming stations, and final product comes out with perfect size and it is smooth and flat. See more details from our video.
Profile

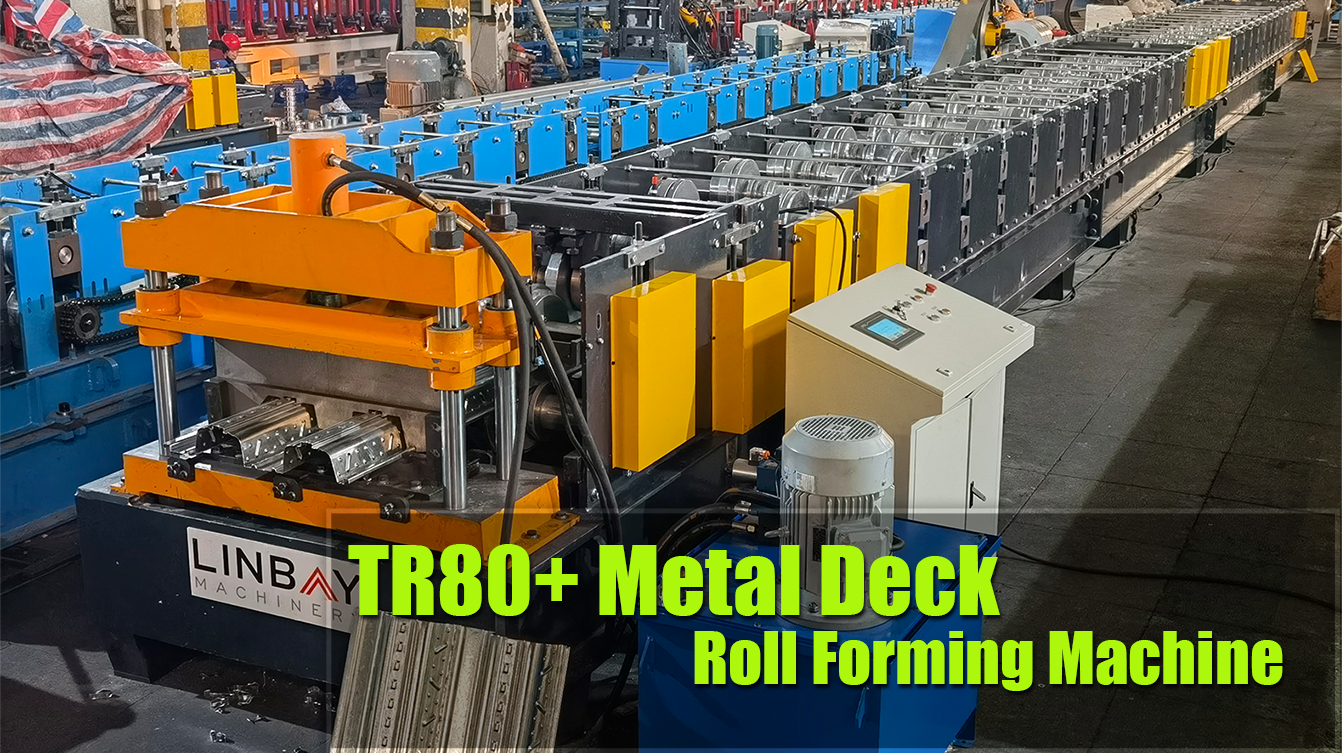

TR80+ metal deck roll forming machine
Whole Production Line of Metal Deck Roll Forming Machine
Decoiler--Hydraulic cut--Rollers--Roller former 1--Roll former 2--Out Table
Technical Specifications
| Floor Deck TR80+ Roll Forming Machine | ||
| Machinable Material : | A) Galvanized Coil | Thickness(MM):0.9, 1.0, 1.2 |
| B) S350 | ||
| C) S450 | ||
| Yield strength : | 350 - 450 Mpa | |
| Tensil stress : | 350 Mpa-550 Mpa | |
| Nominal forming speed(M/MIN): | 0-20 | * Or according to your requirement (Optional) |
| Forming station : | 34 stands | |
| Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
| Punching system | No | * Hydraulic punching or Punching press (Optional) |
| Main machine motor brand : | Sino-Germany Brand | * Siemens (Optional) |
| Driving system : | Chain drive | * Gearbox drive (Optional) |
| Machine structure: | Wall panel station | * Forged Iron station or torri stand structure (Optional) |
| Rollers’ material : | GCr15 | |
| Cutting system : | Post-cutting | * Pre-cutting (optional) |
| Frequency changer brand : | Yaskawa | * Siemens (optional) |
| PLC brand : | Panasonic | * Siemens (optional) |
| Power supply : | 380V 50Hz | * Or according to your requirment |
| Machine color : | Industrial blue | * Or according to your requirment |
Purchase Service
Profile drawings
Optional configuration
-
Out table
-
Non-powered
-
Auto-stacker
-
-
Cutting
-
Saw cutting
-
fast flyting cutting
-
-
Driving
-
chain driving system
-
gearbox driving system
-
Gearbox with couplings
-
-
Stands
-
Torri Stands
-
Forged Iron Stands
-
Wall Panel
-
ruler
-
-
Punching
-
Hydraulic punching station
-
Fast Roller Punching system
-
Punching press
-
-
Feeding
-
Servo feeder
-
Leveler
-
-
Decoiler
-
Motorized&Hydraulic decoiler
-
Double head motorized decoiler
-
Manual Decoiler
-
